CHAPTER 8 FUNCTIONS
8
8.12 Digital Clipping Function
(3) Setting example of when both the digital clipping function and scaling function
are used
When setting as follows for the A/D converter module with input range of 0 to 5V:
• "Scaling upper limit value": 32000
• "Scaling lower limit value": 0
• "Digital clipping function enable/disable setting": "0: Enable"

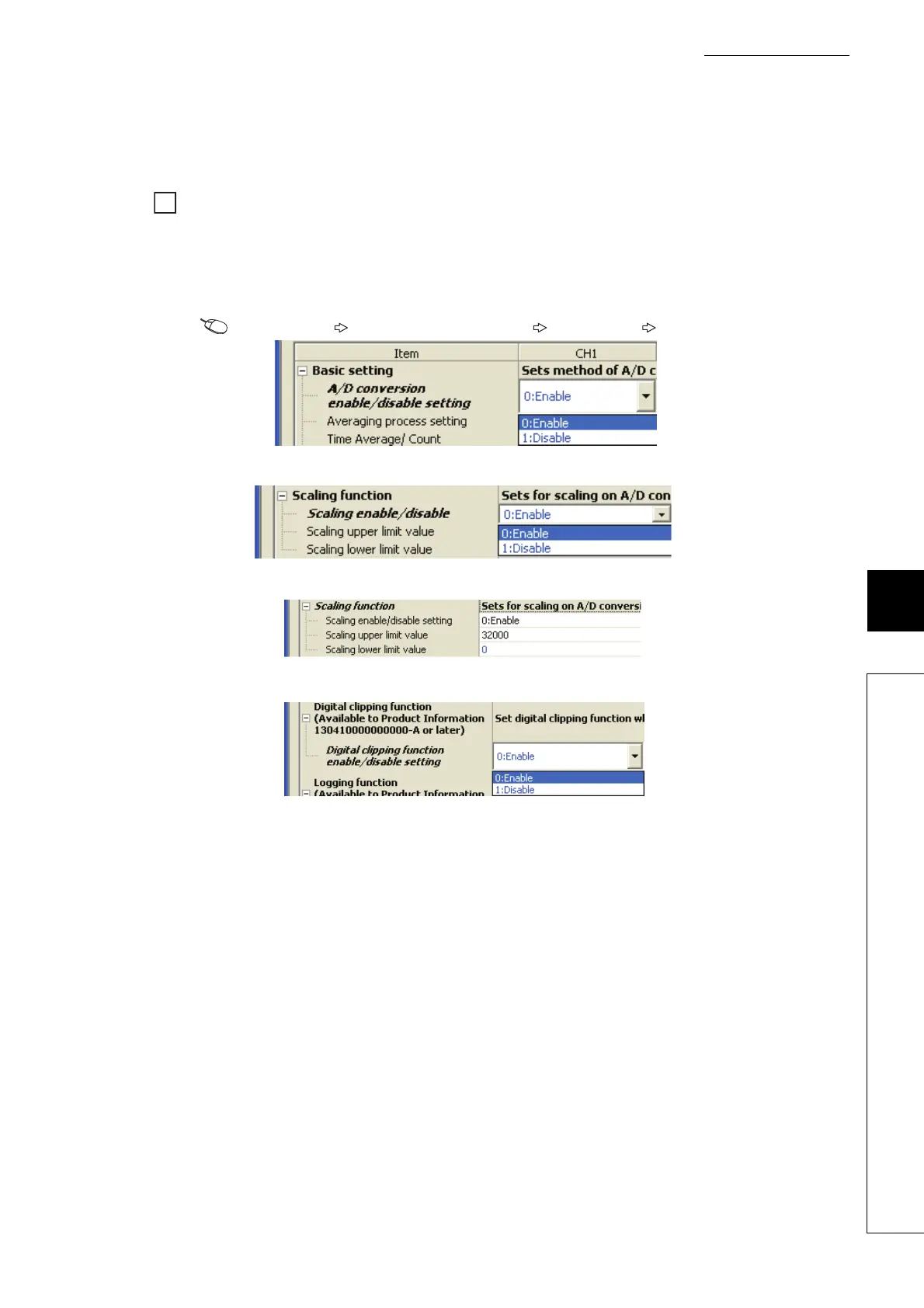

1. Set "A/D conversion enable/disable setting" to "0: Enable".
Project window [Intelligent Function Module] module name [Parameter]
2. Set "Scaling enable/disable setting" to "0: Enable".
3. Set values for "Scaling upper limit value" and "Scaling lower limit value".
4. Set "Digital clipping function enable/disable setting" to "0: Enable".
In this case, scale conversion is performed on the digital-clipped scaling value (digital operation value). Therefore,
the digital output range of the scaling value (digital operation value) is determined as 0 to 32000.
Ex.
