7.5 Offset/Gain Setting
When using the user range setting, configure the offset/gain setting with the following operations.
When using factory default settings, the offset/gain is not required.
The offset/gain setting can be configured from the following two types of operations.
• Setting from "Offset/Gain Setting" of GX Works2.
• Setting from a program
7.5.1 Setting from GX Works2 "Offset/Gain Setting"
(1) Setting procedure

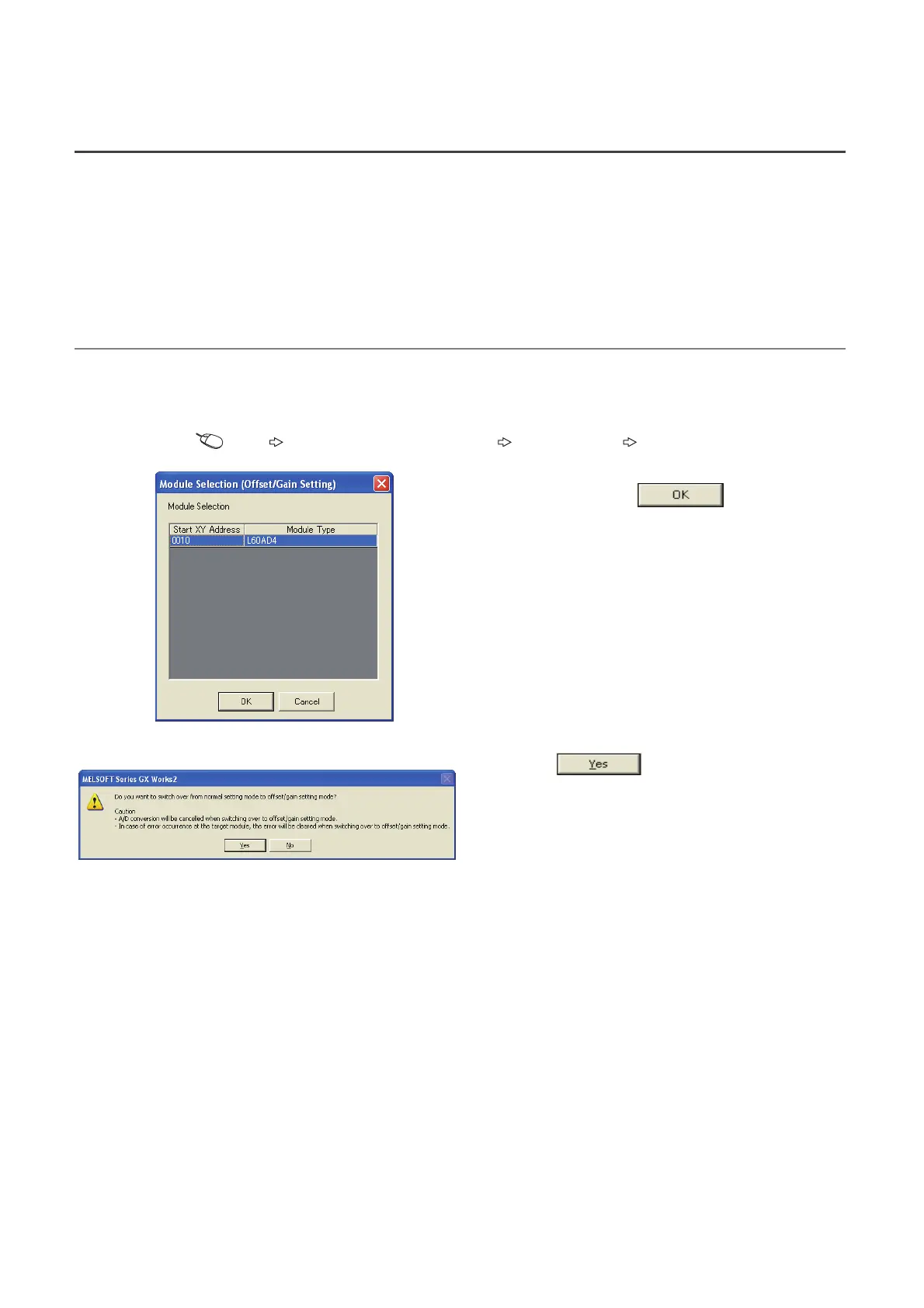

Open the "Offset/Gain Setting" dialog box.
[Tool] [Intelligent Function Module Tool] [Analog Module] [Offset/gain Setting...]
1. Select the module to configure the offset/gain
setting, and click the button.
↓
2. Click the button.
↓
