Mitsubishi L Series User Manual

55
CHAPTER 7 VARIOUS SETTINGS
7

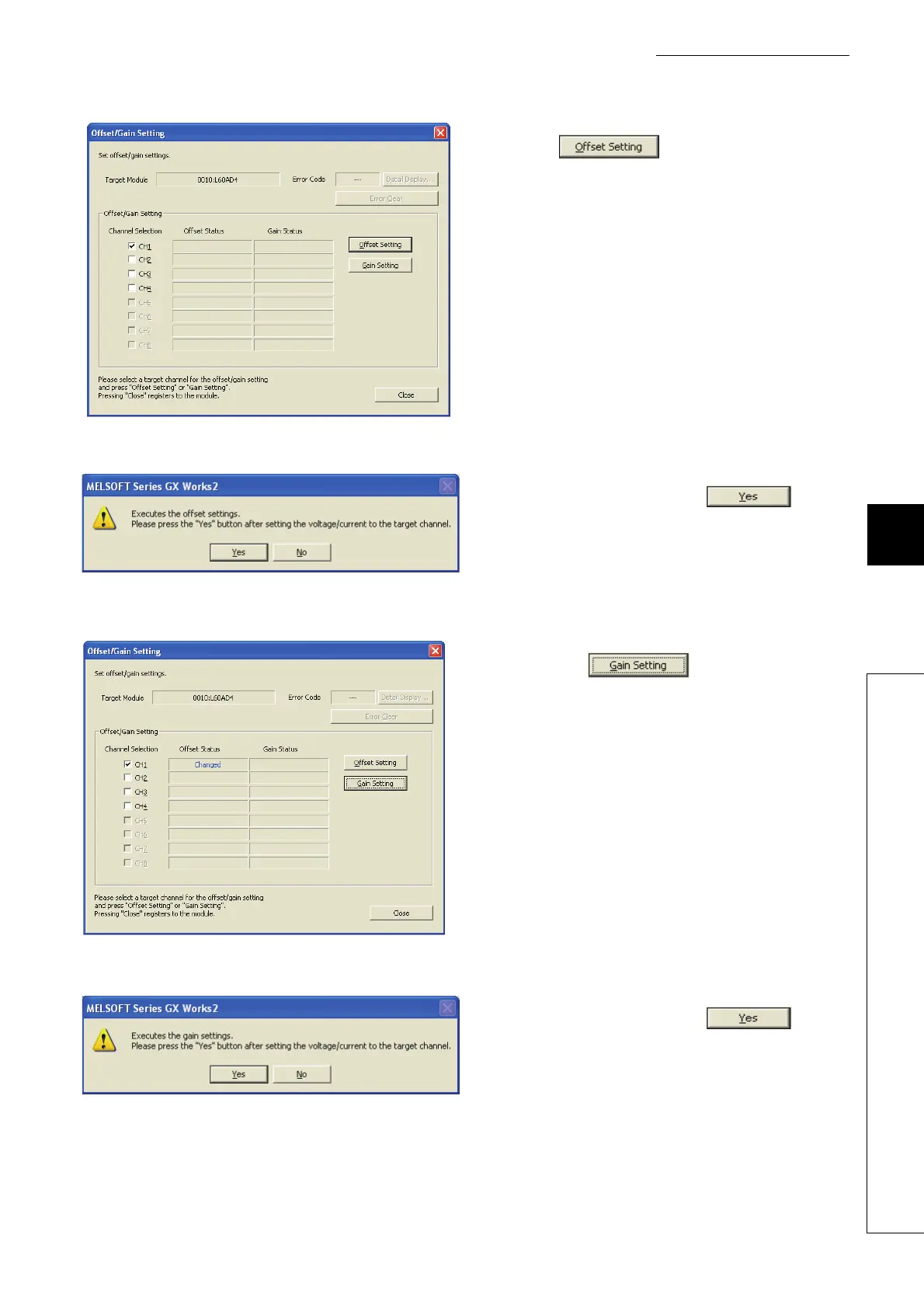

7.5 Offset/Gain Setting 7.5.1 Setting from GX Works2 "Offset/Gain Setting"
3. Select the channel to use the offset/gain setting, and
click the button.
↓
4. Input the offset value voltage or current in the target
channel terminal, and click the button.
↓
5. Check if "Offset Status" is changed to "Changed",
and click the button.
↓
6. Input the gain value voltage or current in the target
channel terminal, and click the button.
↓
