3.2.1 Number of parameter settings
Set the initial setting of A/D converter module and the parameter setting of auto refresh setting so that the number of
parameters, including these of other intelligent function modules, does not exceed the number of parameters that can
be set in the CPU module or the head module.
For the maximum number of parameters that can be set in the CPU module or the head module (maximum number of
parameter settings), refer to the following.
MELSEC-L CPU Module User's Manual (Hardware Design, Maintenance and Inspection)
MELSEC-L CC-Link IE Field Network Head Module User's Manual
(1) Number of A/D converter module parameters
For A/D converter modules, the following number of parameters can be set per module.

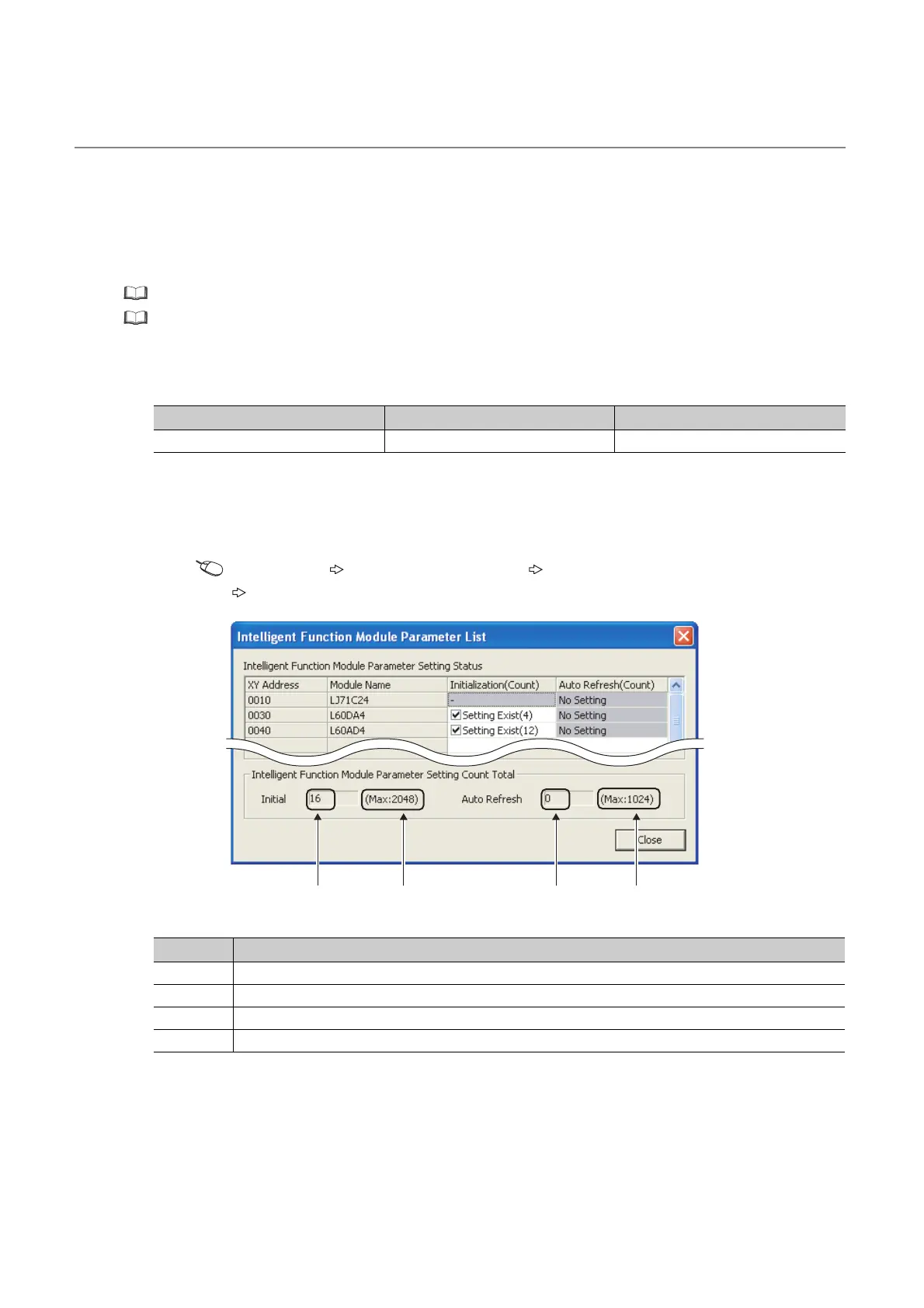

(2) Checking method
The maximum number of parameter settings and the number of parameter settings set for the intelligent function
module can be checked with the following operation.
Project window [Intelligent Function Module] Right-click
[Intelligent Function Module Parameter List]
Target module Initial setting Auto refresh setting
L60AD4 12 75 (maximum number of settings)
No. Description
1) The total number of parameters in the initial settings selected on the dialog box
2) The maximum number of parameter settings in the initial settings
3) The total number of parameters in the auto refresh settings selected on the dialog box
4) The maximum number of parameter settings in the auto refresh settings
1) 2) 3) 4)
To Next Page
