(c) Switching the mode by Mode switching setting (Un\G158, Un\G159) and Operating
condition setting request (Y9)

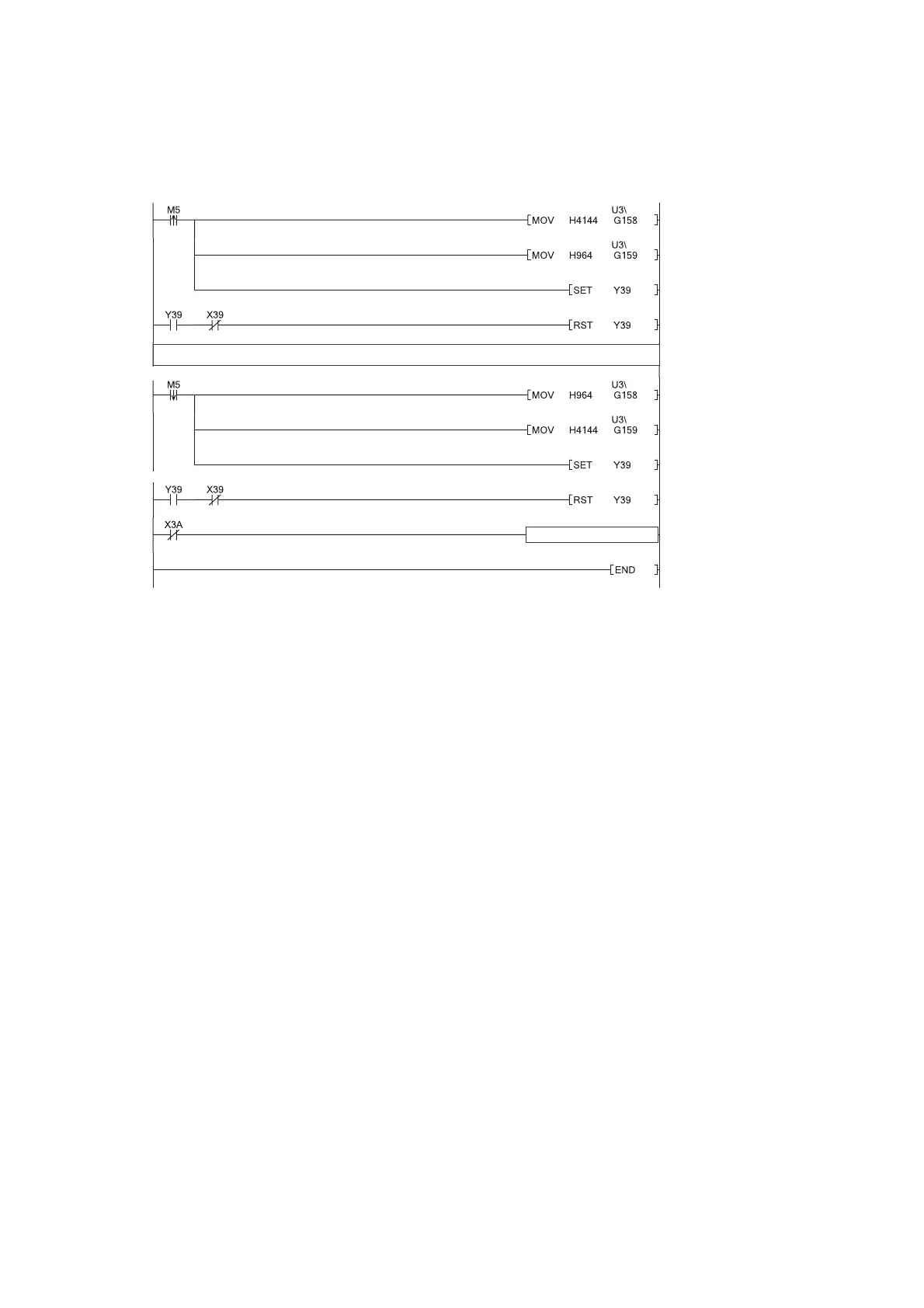

(d) Switching the mode by the intelligent function module switch setting
The programs other than the common program is not necessary.
Sets 4144H to Mode
switching setting 1 (U3\G158).
Sets 0964
H to Mode
switching setting 1 (U3\G158).
Sets 4144
H to Mode
switching setting 2 (U3\G159).
Turns on Operating condition
setting request (Y39).
Turns off Operating condition
setting request (Y39).
Turns on Operating condition
setting request (Y39).
Turns off Operating condition
setting request (Y39).
Sets 0964
H to Mode
switching setting 2 (U3\G159).
Switches to the offset/gain setting mode.
Switches to the normal mode.
Resets the operating condition setting request.
Common program
Processing in normal mode
