(3) Voltage input characteristic

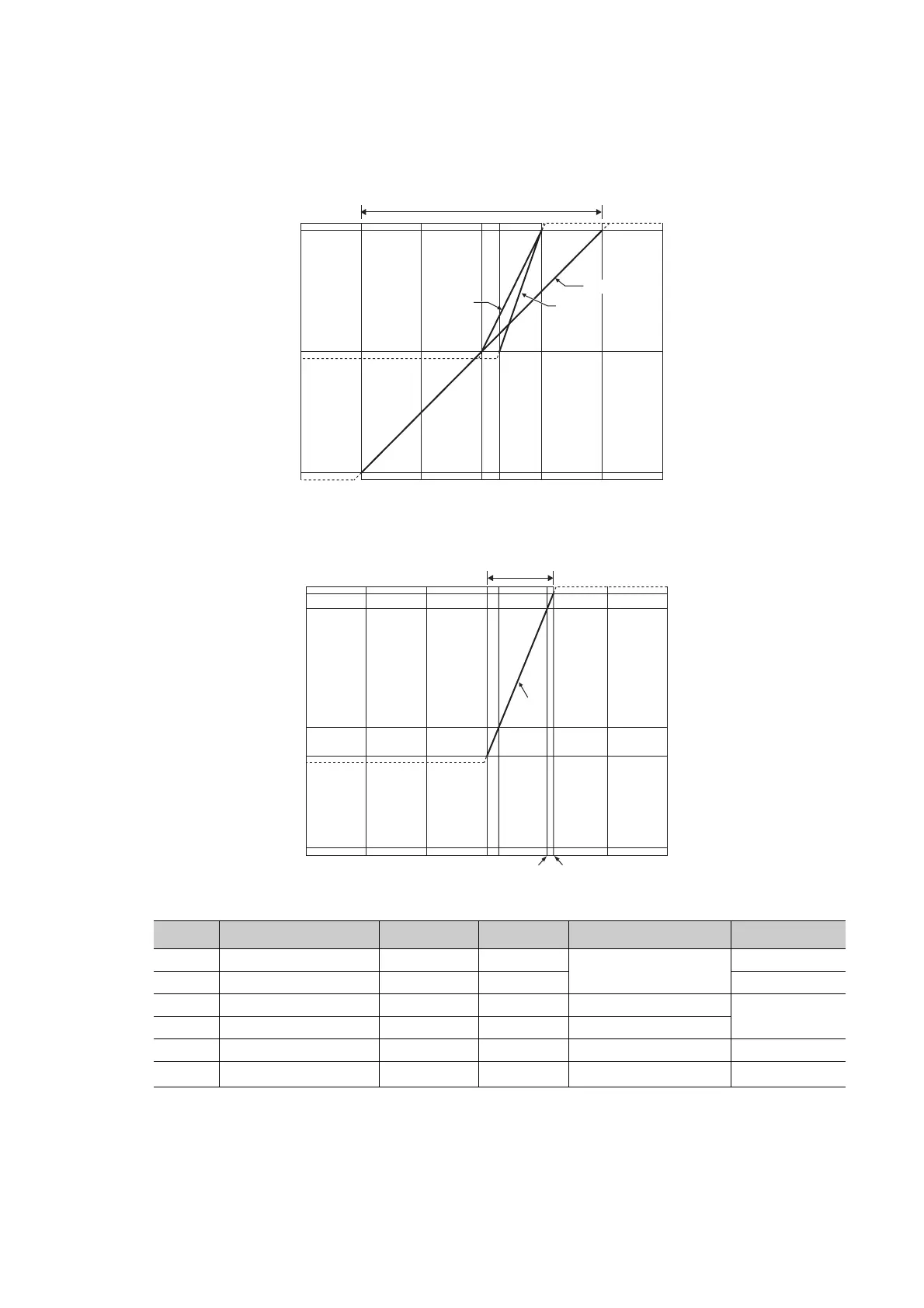

The following graph shows the voltage input characteristic.
No. Input range setting Offset value Gain value
Digital output value *
2
Resolution
1) 1 to 5V 1V 5V
0 to 20000
200μV
2) 0 to 5V 0V 5V 250μV
3) -10 to 10V 0V 10V -20000 to 20000
500μV
4) 0 to 10V 0V 10V 0 to 20000
5) 1 to 5V (Extended mode) 1V 5V -5000 to 22500 200μV
⎯ User range setting *1 *1 -20000 to 20000
307μV *
3
20479
20000
-20000
-20480
-10 -5 0 1 5 10 15
0
Digital output value
Practical analog input range
Analog input voltage (V)
-15
-480
1)
2)
4)
3)
22500
22979
20000
-20000
-20480
-10 -5 0 51 5.5 10 15
0
Practical analog input range
Analog input voltage (V)
-15
-5000
-5480
5)
Digital output value
