219
APPENDICES
A
Appendix 5 Dedicated Instruction
Appendix 5.4 G(P).OGSTOR
(5)

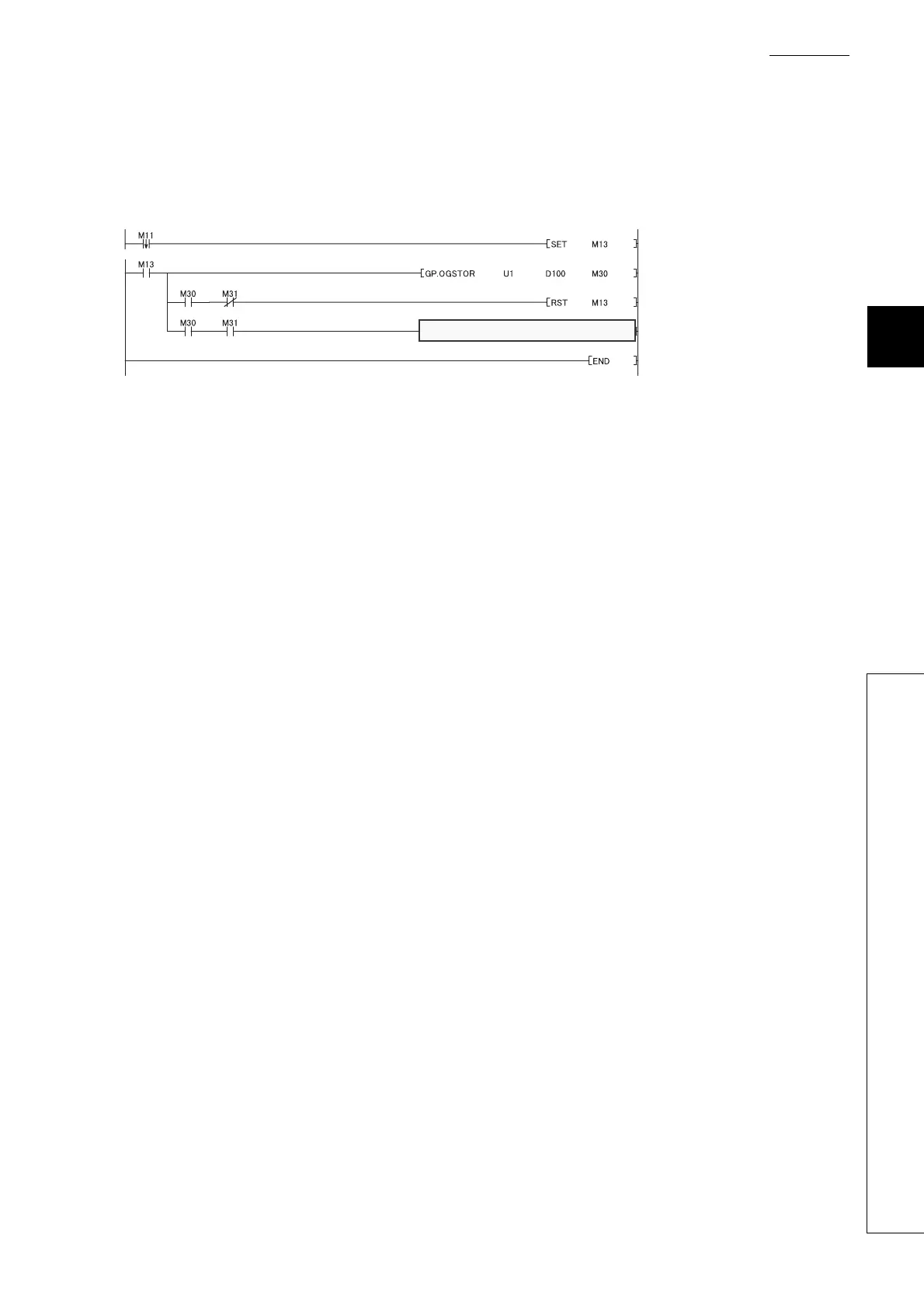

Program example
The following sh
ows the programs to
write the offset/gain
setting val
ue to A/D converter module, installed in I/O
number X/Y10 to X/Y1F
, by turning
OFF M1
1.
Dedicated instruction
(GP.OGSTOR)
Processing when an instruction execution is failed
Restores a offset/gain setting value.
Sets a control data.
220
222
Table of Contents
Default Chapter
3
Safety Precautions
3
Conditions of Use for the Product
6
Introduction
7
Compliance with Emc and Low Voltage Directives
8
Relevant Manuals
9
Table of Contents
10
Manual Page Organization
13
Packing List
16
Terms
16
Chapter 1 A/D Converter Module
17
Application
17
Features
18
Chapter 2 Part Names
19
Chapter 3 Specifications
21
General Specifications
21
Performance Specifications
22
Number of Parameter Settings
24
Function List
25
I/O Signal List
27
List of Buffer Memory Addresses
28
Chapter 4 Procedures before Starting the Operation
41
Chapter 5 System Configuration
43
Overall System Configuration
43
Applicable System
44
Restrictions When A/D Converter Module Is Connected to Head Module
44
Chapter 6 Installation and Wiring
45
Installation Environment and Installation Position
45
Terminal Block
46
Wiring
48
External Wiring
49
Chapter 7 Various Settings
50
Addition of Modules
50
Switch Setting
51
Parameter Setting
52
Auto Refresh
55
Offset/Gain Setting
56
Setting from GX Works2 "Offset/Gain Setting
56
Setting from a Program
59
Chapter 8 Functions
63
Processing each Function
63
A/D Conversion Enable/Disable Function
65
A/D Conversion Method
65
Input Range Extended Mode Function
69
Conversion Speed Switch Function
70
Maximum and Minimum Values Hold Function
70
Input Signal Error Detection Function
71
Input Signal Error Detection Extension Function
76
Warning Output Function (Process Alarm)
79
Scaling Function
82
Shift Function
88
Digital Clipping Function
92
Difference Conversion Function
96
Logging Function
100
Flow Amount Integration Function
112
Error Log Function
121
Module Error Collection Function
124
Error Clear Function
125
Saving and Restoring Offset/Gain Values
126
Chapter 9 Display Unit
131
Display Unit
131
Menu Transition
131
List of Setting Value Change Screens
133
Checking and Clearing Errors
140
Chapter 10 Programming
142
Procedure for Programming
142
When Using the Module in a Standard System Configuration
143
When A/D Converter Module Is Connected to Head Module
150
Chapter 11 Troubleshooting
158
Checking on the Module Detailed Information
159
Checking by Latest Error Code (Un\G19)
160
Checking on the Module Error Collection Function
160
Error Code List
161
Alarm Code List
165
Troubleshooting
166
Checking the Status of the A/D Converter Module by the System Monitor
168
Appendices
169
Appendix 1 Details of I/O Signals
169
Appendix 1.1 Input Signal
169
Appendix 1.2 Output Signal
174
Appendix 2 Details of Buffer Memory Addresses
176
Appendix 3 I/O Conversion Characteristic of A/D Conversion
205
Appendix 4 A/D Conversion Accuracy
210
Appendix 5 Dedicated Instruction
211
Appendix 5.1 Instruction List
211
Appendix 5.2 G(P).OFFGAN
212
Appendix 5.3 G(P).OGLOAD
214
Appendix 5.4 G(P).OGSTOR
218
Appendix 6 Checking Serial Number and Function Version
222
Appendix 7 Addition and Change of Functions
222
Appendix 7.1 Addition of Functions
222
Appendix 7.2 Change of Functions
222
Appendix 8 Differences with Q Series
225
Appendix 8.1 Precautions for Applying Q Series Sequence Program
226
Appendix 9 When Using GX Developer or GX Configurator-AD
228
Appendix 9.1 Operation of GX Developer
228
Appendix 9.2 Operation of GX Configurator-AD
230
Appendix 10 External Dimensions
233
Index
235
Instruction Index
237
Revisions
238
Warranty
239
