(b) Averaging processing
To select "1: Time Average" for "Averaging process setting":

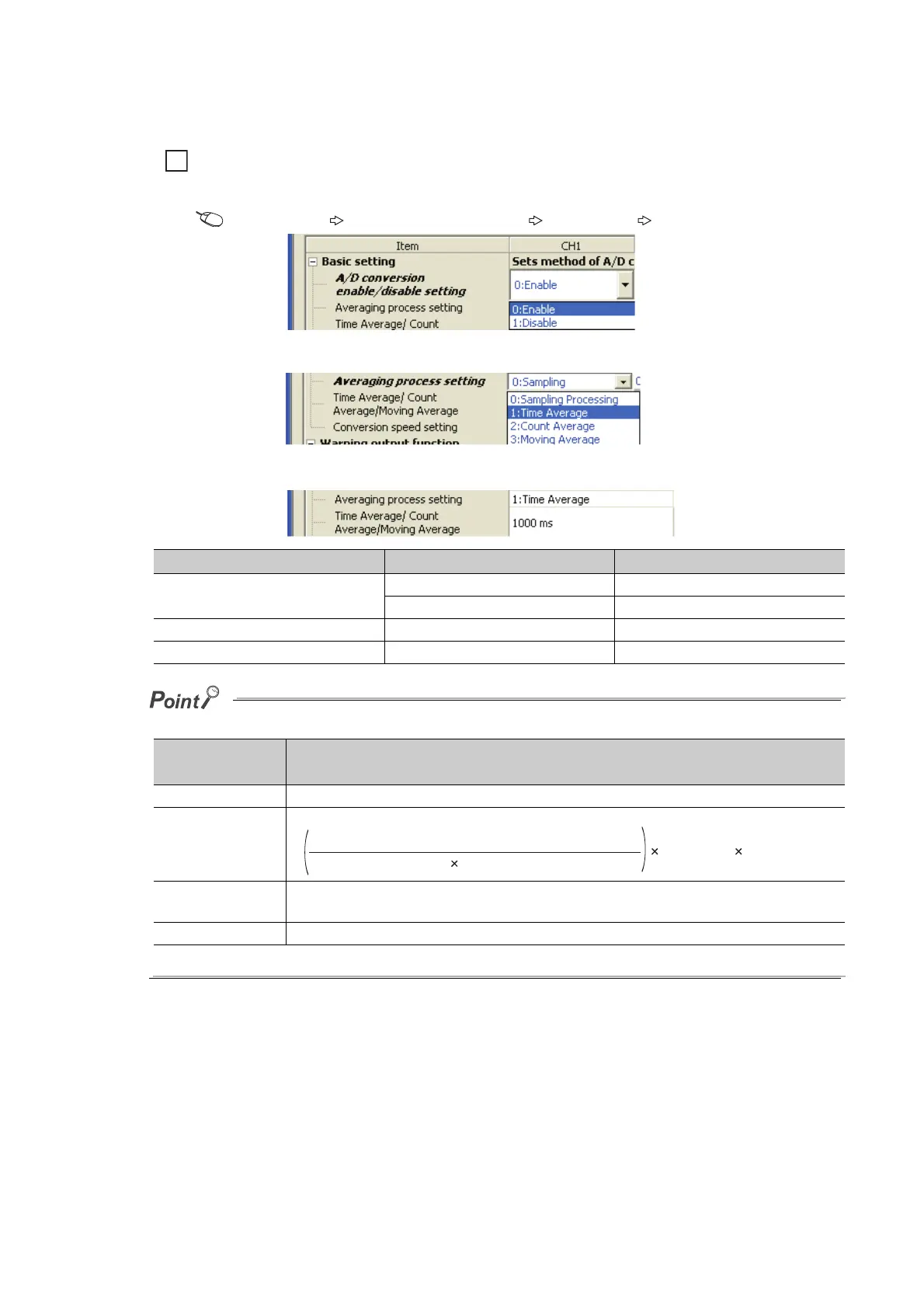

1. Set "A/D conversion enable/disable setting" to "0: Enable".
Project window [Intelligent Function Module] module name [Parameter]
2. For "Averaging process setting", select "1: Time Average".
3. For "Time Average/ CountAverage/Moving Average", enter the following:
The following table shows the conversion cycle of each A/D conversion.
*1 The value after the decimal point is rounded off.
Setting item Conversion speed Setting range
Time Average
20 µs 2 to 1500 ms
80 µs, 1 ms 2 to 5000 ms
Count Average 20 µs, 80 µs, 1 ms 4 to 62500 times
Moving Average 20 µs, 80 µs, 1 ms 2 to 1000 times
A/D conversion
method
Conversion cycle
Sampling processing Conversion speed × Number of used channels
Time average
Count average
Number of times set in "Time Average/Count Average/Moving Average" × Conversion speed ×
Number of used channels
Moving average Conversion speed × Number of used channels
Ex.
Time set in "Time Average/Count Average/Moving Average"
Conversion speed Number of used channels
Conversion
speed
Number of
used channels
*1
