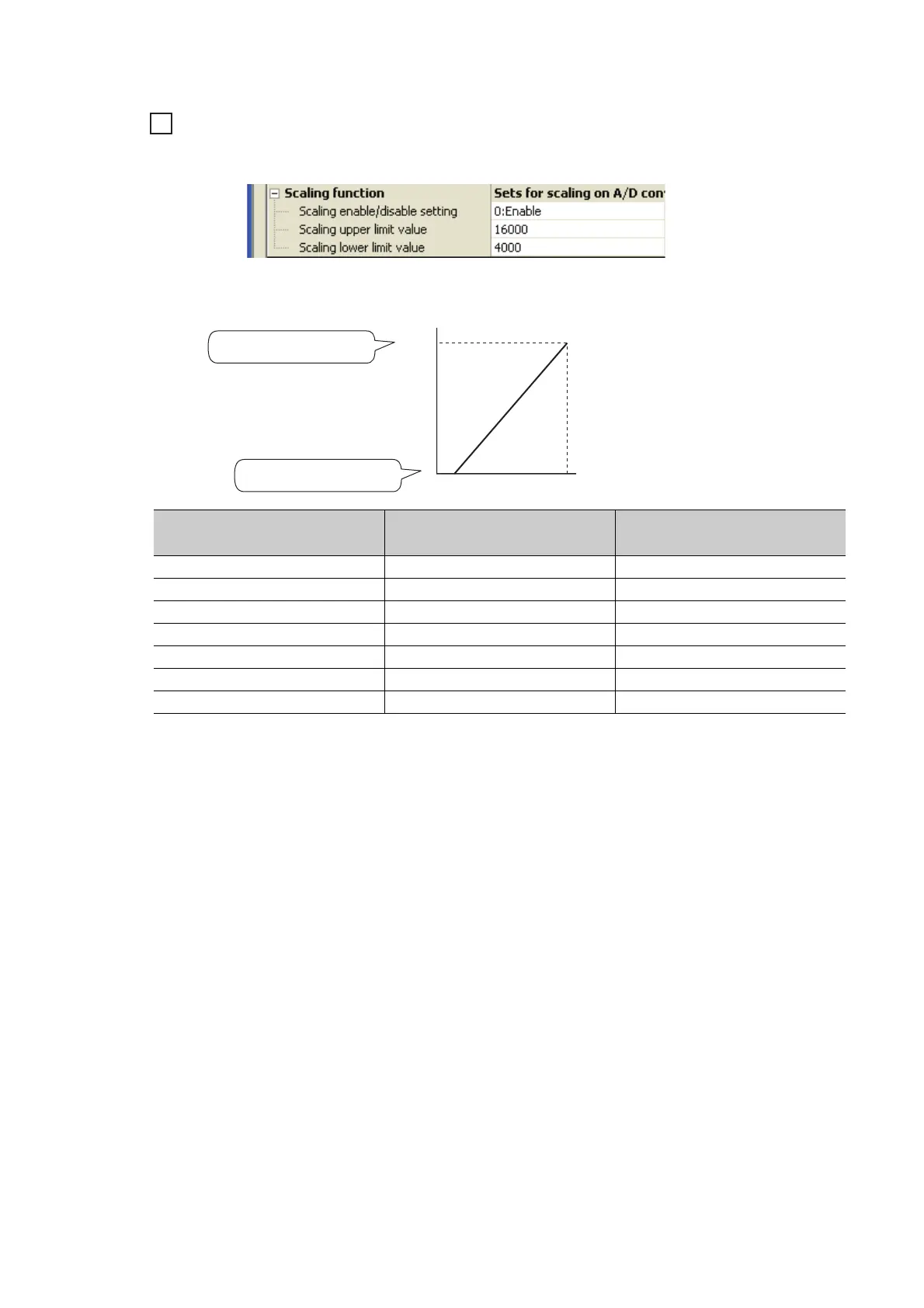

3: When values are set for a channel with input range of 1 to 5V (Extended mode) as follows:
• "Scaling upper limit value": 16000
• "Scaling lower limit value": 4000
The digital output values and scaling values (digital operation values) are as follows:
Analog input voltage (V) Digital output value
Scaling value
(digital operation value)
0 -5000 1000
1 0 4000
2 5000 7000
3 10000 10000
4 15000 13000
5 20000 16000
5.5 22500 17500
Ex.
Digital output value
20000
0
50
Analog input voltage (V)
Scaling upper limit value:
16000
Scaling lower limit value:
4000
1
