Mitsubishi L2C Service Manual

REASSEMBLY OF BASIC ENGINE
7-10

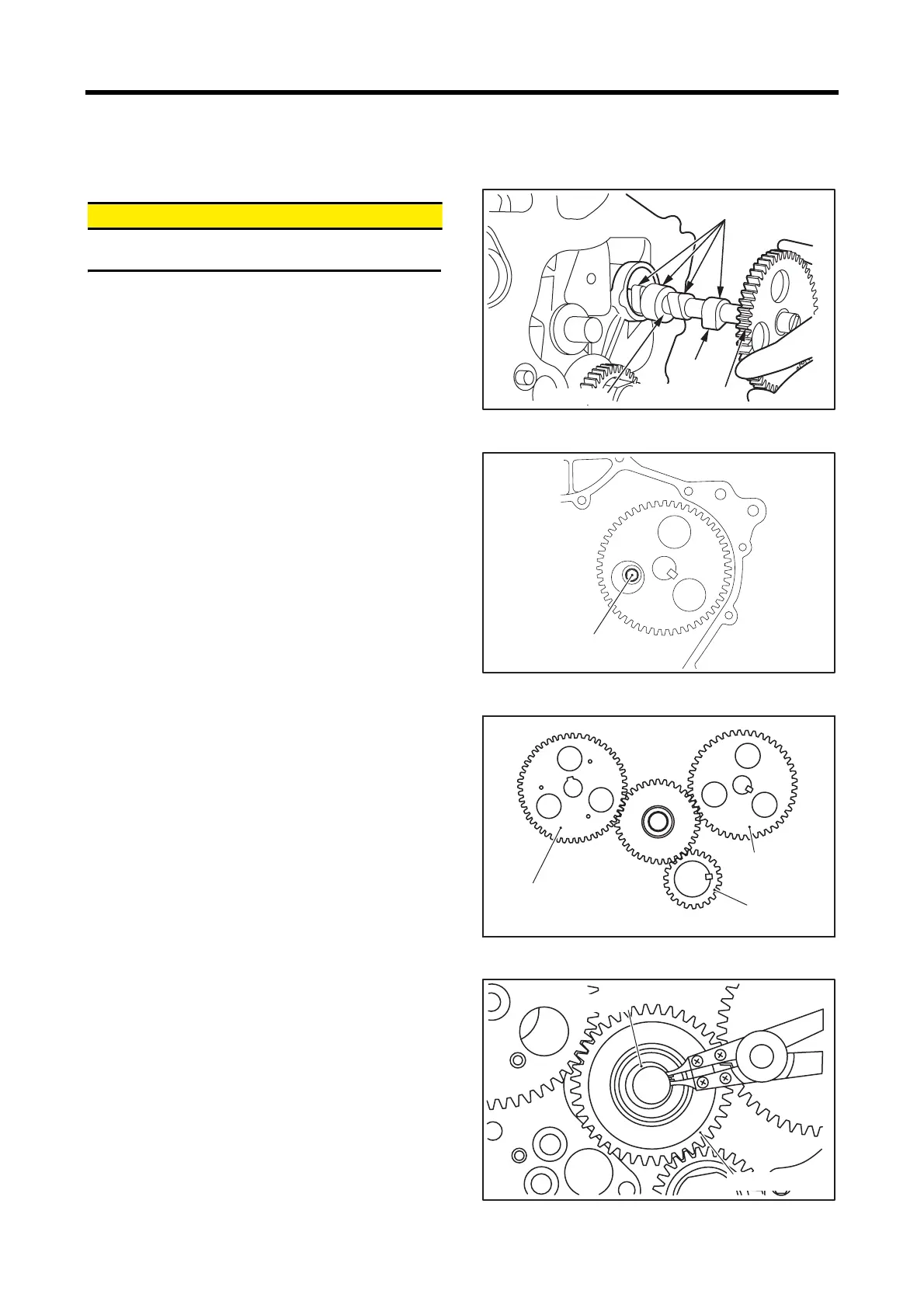

2.4 Installing camshaft
&$87,21
Be careful not to damage camshaft journals, cams and
camshaft holes during insertion.
(1) Apply engine oil to the camshaft journals and cams.
(2) Slowly insert the camshaft assembly.
(3) Install the camshaft stopper.
(4) Make sure that the camshaft rotates freely.
Move the camshaft gear back and forth, and make sure
there is end play.
Installing camshaft
Installing camshaft stoppers
2.5 Installing idler gear
(1)
Apply engine oil to the idler gear shaft.
(2) Install the idler gear while aligning all match marks on
it and the other gears.
(3) Fix the idler gear shaft with a snap ring.
(4) Move the idler gear back and forth, and make sure there
is end play.
Align the timing marks
Installing idler gear
Apply engine oil.
Camshaft
Cam
Camshaft gear
Camshaft
stopper washer









Fuel injection
pump camshaft gear
Crankshaft
gear
Camshaft
gear
Snap ring
Idler gear
