DISASSEMBLY OF BASIC ENGINE
5-3
1.1 Removing rocker shaft assembly
(1)
Loosen the rocker arm adjusting screw by about one
turn.
(2) Loosen the rocker stay bolts and remove the rocker
shaft assembly.
Note: When removing the rocker shaft assembly, remove it
together with the rocker stay bolts, and keep them
together for reassembling.

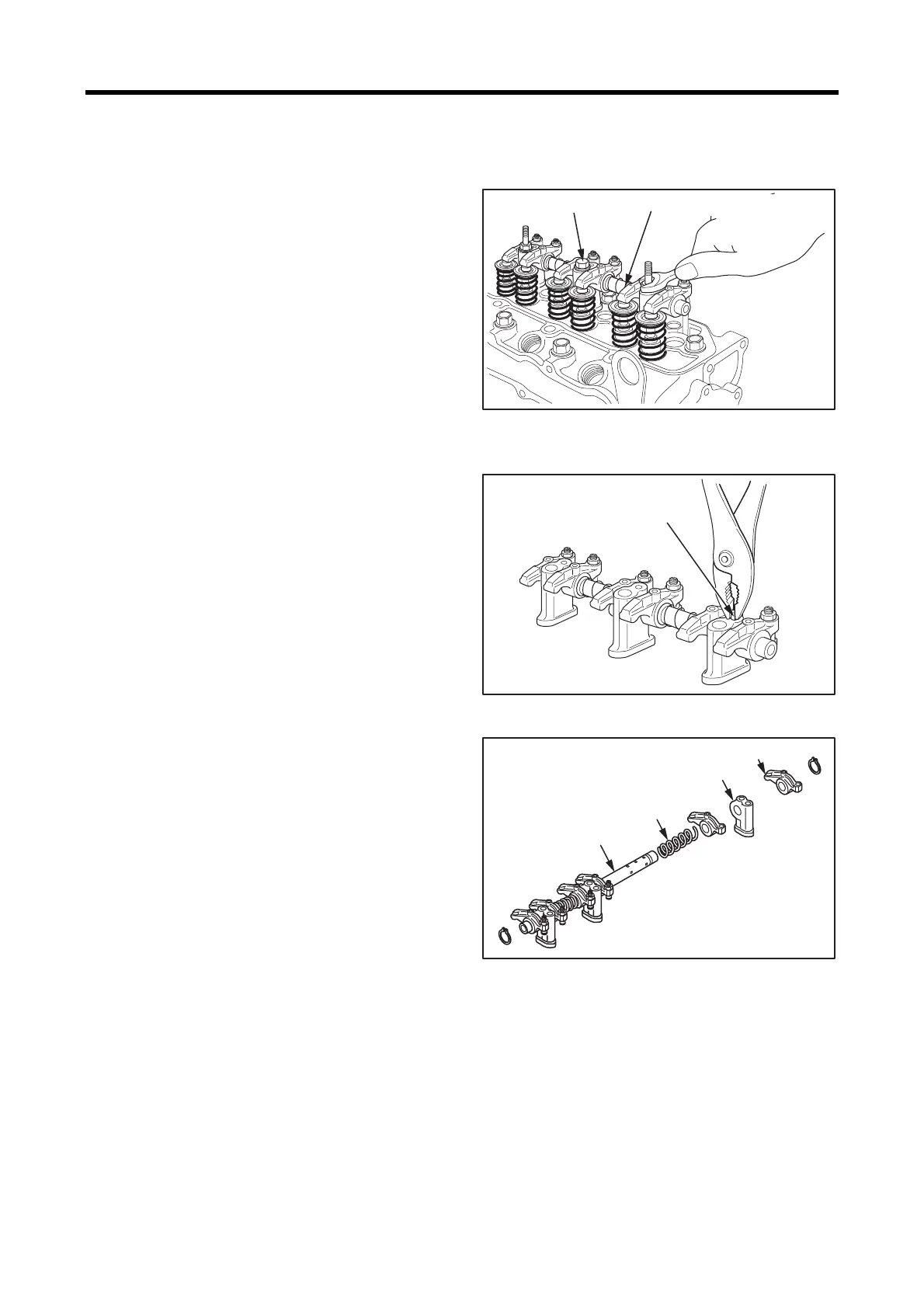

Removing rocker shaft assembly
1.2 Disassembling rocker shaft assembly
(1)
Pull out the grooved pin with a pair of pliers.
(2) Remove snap rings from both ends of the rocker shaft.
Disassemble the rocker shaft assembly into the rocker
arms, rocker stays, rocker shaft springs and rocker
shaft.
Note: Be sure to arrange the parts of rocker shaft assembly
in the order of disassembling.
Reassemble the rocker shaft assembly in the reverse
order of disassembly by making sure of the original
combination of rocker arm and shaft assembly so that
the same clearance between the rocker shaft and arms
is restored when reassembling.
Removing grooved pin
Disassembling rocker shaft assembly
Rocker stay bolt
Rocker shaft assembly
Grooved pin
Rocker shaft
Rocker shaft spring
Rocker stay
Rocker arm
