Mitsubishi L2C Service Manual

FUEL SYSTEM
8-29
3.2.3 Installing torque spring set
(Single spring, double spring)
&$87,21
The torque spring set is properly adjusted at the fac-
tory before shipment. Do not work on the torque spring
set unless absolutely necessary.
Adjust and reassemble the torque spring set as described in
the following.
(1) Adjust the speed control lever with the high speed set
bolt. After setting it at the high idle engine speed,
secure it by nut.
(2) Screw in the torque spring set at the rated engine speed.
Set it to the rated engine power and secure it by special
nut.
(3) Put a torque spring set sealing cap on the torque spring
and firmly tighten the sealing cap.

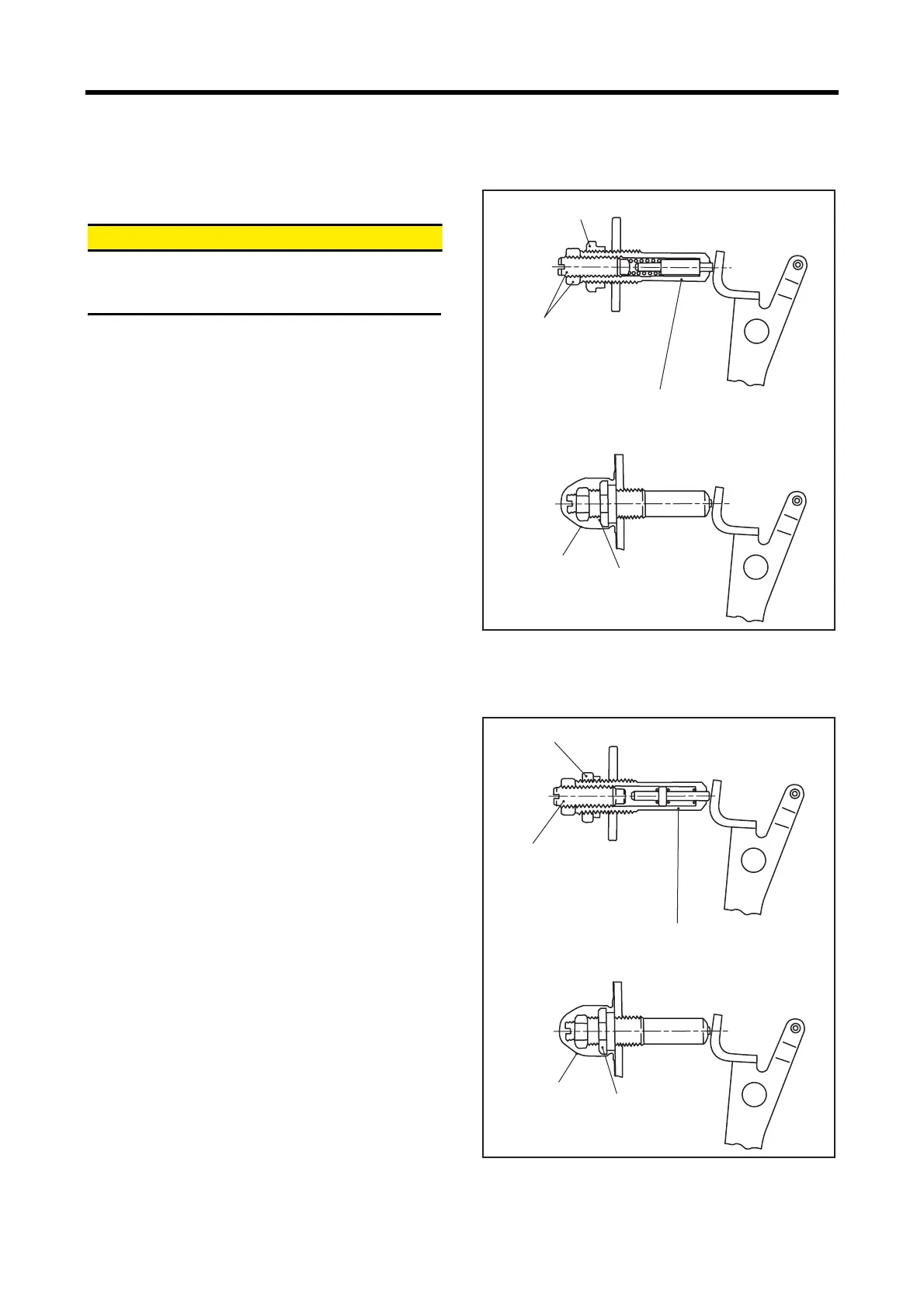

Installing torque spring set (single spring)
3.2.4 Installing torque set spring
(Double spring, two point control)
Adjust and reassemble the torque spring set as described in
the following.
(1) Adjust the speed control lever with the high speed set
bolt. After setting it to the high idle engine speed,
secure it by nut.
(2) Screw in the torque spring set at maximum torque
engine speed. Set it to the maximum torque and secure
it by special nut.
(3) Screw in the adjusting screw at the rated engine speed.
Set it to the rated engine power and secure it by special
nut.
(4) Put a torque spring set sealing cap on the torque spring
and firmly tighten the sealing cap.
Installing torque spring set (double spring)
Special nut
14.7 㨪 24.5 N·m
{1.5 㨪 2.5 kgf·m}
For installation and adjustment
Do not wrok on this screw
unless absolutely necessary.
Screw in the torque spring set
at the rated engine speed.
Set it to the rated power and
secure it by special nut.
Sealing cap
(fix it after setting)
[10.9 㨪18.1 lbf·ft]
For installation and adjustment
Screw in the adjusting screw
at the rated engine speed.
Set it to the rated engine power
and secure it by special nut.
Screw in the torque spring set
at maximum torque engine speed.
Set it to the maximum torque
and secure it by special nut.
Sealing cap
(fix it after setting)
Special nut
14.7 㨪 24.5 N·m
{1.5 㨪 2.5 kgf·m}
[10.9 㨪18.1 lbf·ft]
