FUEL SYSTEM

8-15

2.5 Reassembling fuel injection pump

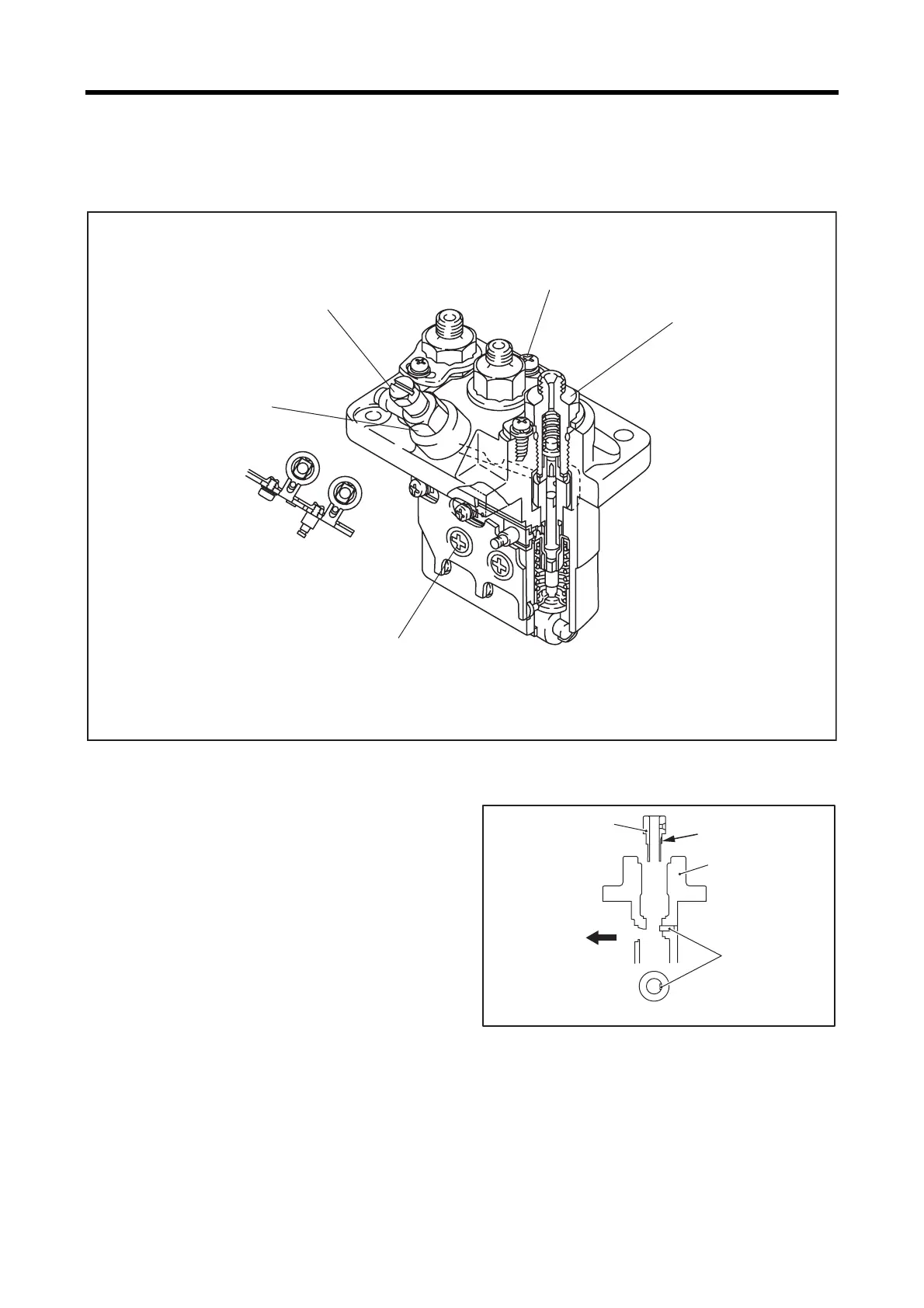

Reassembling fuel injection pump

2.5.1 Installing plunger barrel

Align the plunger barrel groove with the knock pin of the

pump housing, and insert the pluger barrel into the pump

housing.

Note: If the knock pin is not aligned with the plunger barrel

groove, the plunger barrel will not be installed

correctly. Make sure that O-ring is not protruded from

the pump housing when the delivery valve holder is

snugly tightened.

Inserting plunger barrel

4.9 to 6.9 N㨯m

{0.5 to 0.7 kgf㨯m}

[3.6 to 5.1 lbf㨯ft]

9.8 to 14.7 N㨯m

{1.0 to 1.5 kgf㨯m}

[7.2 to 10.8 lbf㨯ft]

3.2 to 4.0 N㨯m

{0.3 to 0.4 kgf㨯m}

[2.2 to 2.9 lbf㨯ft]

3.2 to 4.0 N㨯m

{0.3 to 0.4 kgf㨯m}

[2.2 to 2.9 lbf㨯ft]

34.3 to 38.2 N㨯m

{3.5 to 3.9 kgf㨯m}

[25.3 to 28.2 lbf㨯ft]

Plunger barrel

Groove

Pump housing

Knock pin

Control rack

side

Viewed from above
