Mitsubishi L2C Service Manual

FUEL SYSTEM
8-16

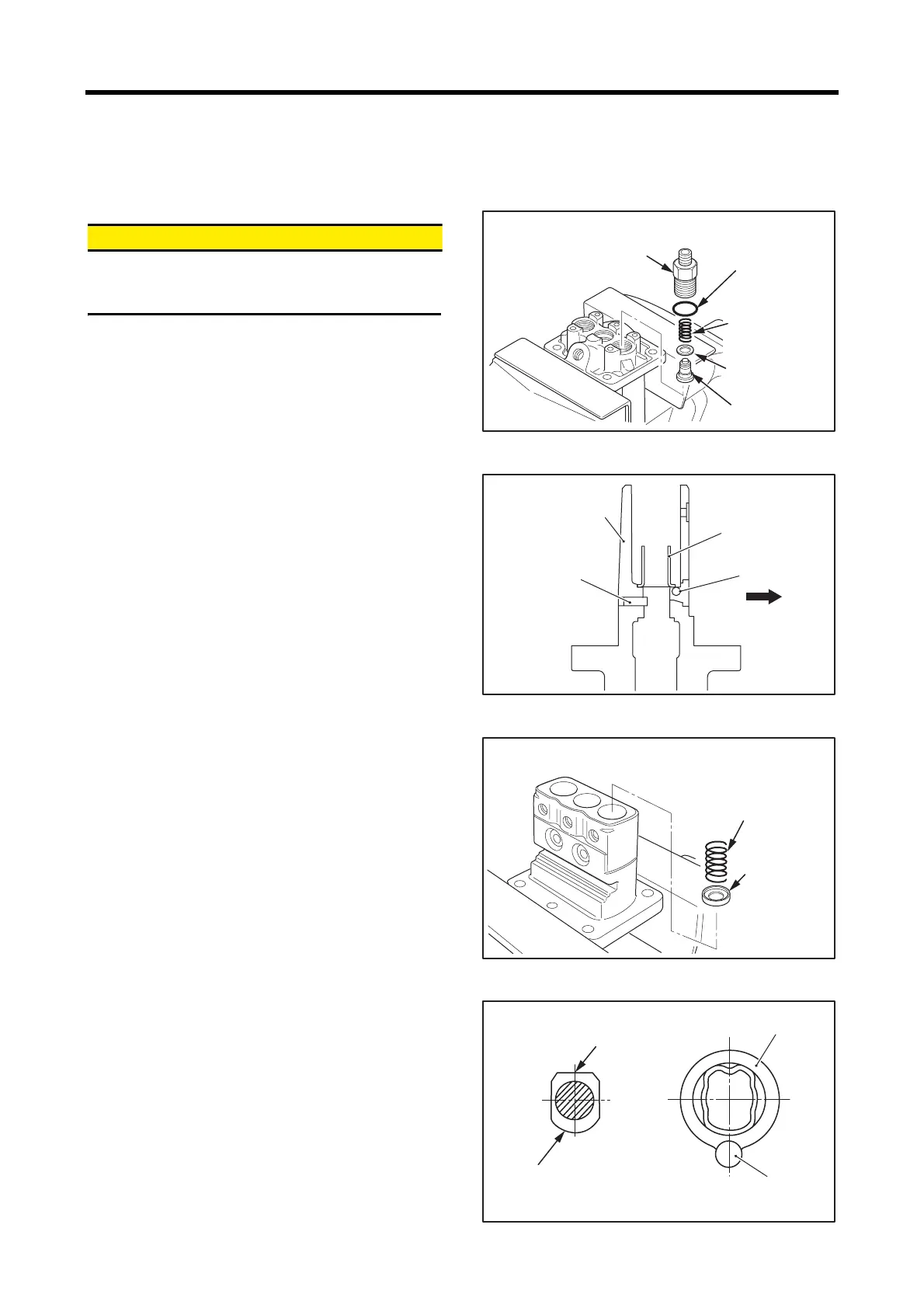

2.5.2 Assembling delivery valve
&$87,21
(a) Do not reuse the O-ring.
(b) Install a new O-ring so that it is not cut with
threads of the valve holder.
Assemble the delivery valve, delivery valve gasket and
delivery valve spring. Then with the O-ring installed,
temporarily tighten the delivery valve holder.
Assembling delivery valve
2.5.3 Assembling control sleeve
(1) Reverse the pump housing and grab the housing with a
vise.
(2) Install the sleeve with the protrusion of the control
sleeve the control rack side (opposite side to the knock
pin). The protrusion can be seen through the housing
hole.
Assembling control sleeve
2.5.4 Assembling plunger
(1) Assemble the spring upper seat and plunger spring.
(2) Place the stamped side of the collar of the plunger to the
opposite side to the protrusion of the control sleeve
(opposite side to the control rack side). Assemble the
spring lower seat to the plunger and insert the plunger
into the control sleeve.
Assembling plunger spring
Assembling direction of plunger
Delivery valve holder
O-ring
Delivery valve
spring
Delivery valve
gasket
Delivery valve
Pump housing
Knock pin
Control sleeve
Protrusion
Control rack
side
Plunger
spring
Spring upper
seat
Stamp
Control rack side
Sleeve
Protrusion
Plunger Control sleeve
