Mitsubishi L2C Service Manual

FUEL SYSTEM
8-22
2.9.2 Reassembling torque spring set, double
spring type
Reassemble the torque spring set of the double spring type
as described in the following.
(1) Screw in the adjusting screw so that the end of the
spring stopper protrudes from the torque spring case as
the protrusion table below.
(2) Then, tighten the locknut to the specified torque to
secure the adjusting screw.
(3) With the spring stopper pushed in as described above
(1), make sure the spring stopper moves smoothly and
is properly retracted to the end face of the torque spring
case.
(4) To check the protrusion of the spring stopper is
correctly adjusted, place the torque spring set as shown
in the illustration. Apply a dial gauge to the end of the
spring stopper and set the pointer to zero. Then, push in
the spring stopper and slightly displace the torque
spring set to the side. Read extension of the dial gauge
to the end of the torque spring case.

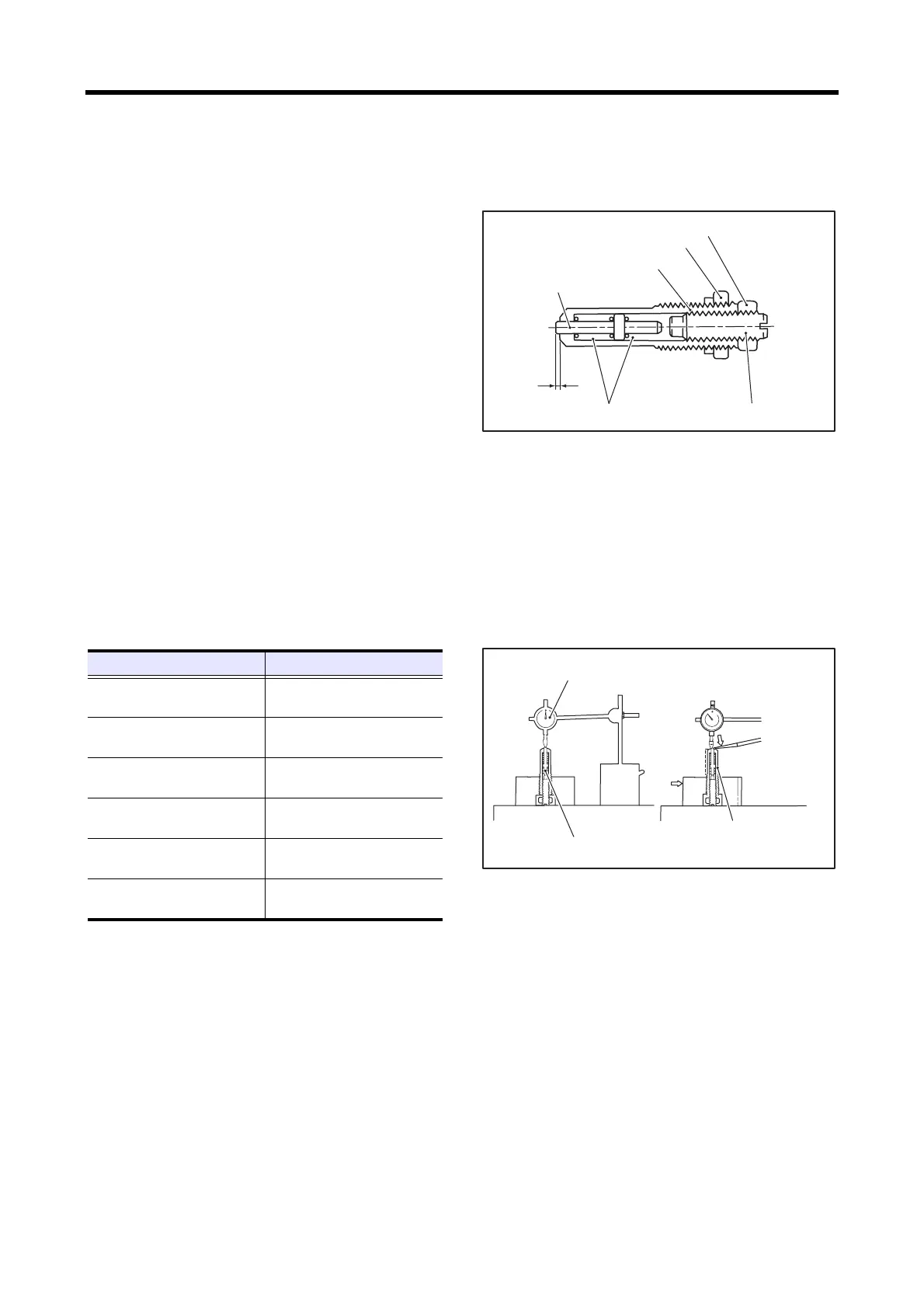

Setting of torque spring of double spring type
Measuring protrusion of spring stopper of double
spring type
Protrusion mm
Color
0.2 to 0.3 mm
[0.008 to 0.012 in.]
None
0 to 0.4 mm
[0 to 0.016 in.]
White
0.3 to 0.4 mm
[0.012 to 0.016 in.]
Blue
0.4 to 0.5 mm
[0.016 to 0.020 in.]
Black
0.6 to0.7 mm
[0.024 to 0.028in.]
Pink
0.5 to 0.6 mm
[0.020 to 0.024 in.]
Orange
Protrusion
amount
Spring stopper
Torque spring
Special nut
Torque spring case
Lock nut
7.8 to 11.8 N㨯m
{0.8 to 1.2 kgf㨯m}
[5.8 to 8.7 lbf㨯ft]
Adjusting screw
Spring stopper
Dial gauge
Torque spring case
Push in
spring
stopper.
