2.5 Reassembling starter (M000T60481 (12V-1.2kW), M001T68381 (12V-1.7kW))

Reassembling starter (M000T60481 (12V-1.2kW), M001T68381 (12V-1.7kW))

2.5.1 Applying grease

&$87,21

To avoid mixing of different greases, remove old grease before applying new grease.

Make sure that the starter mounting surface, brushes, commutator and other electric current conducting compo-

nents are free from grease.

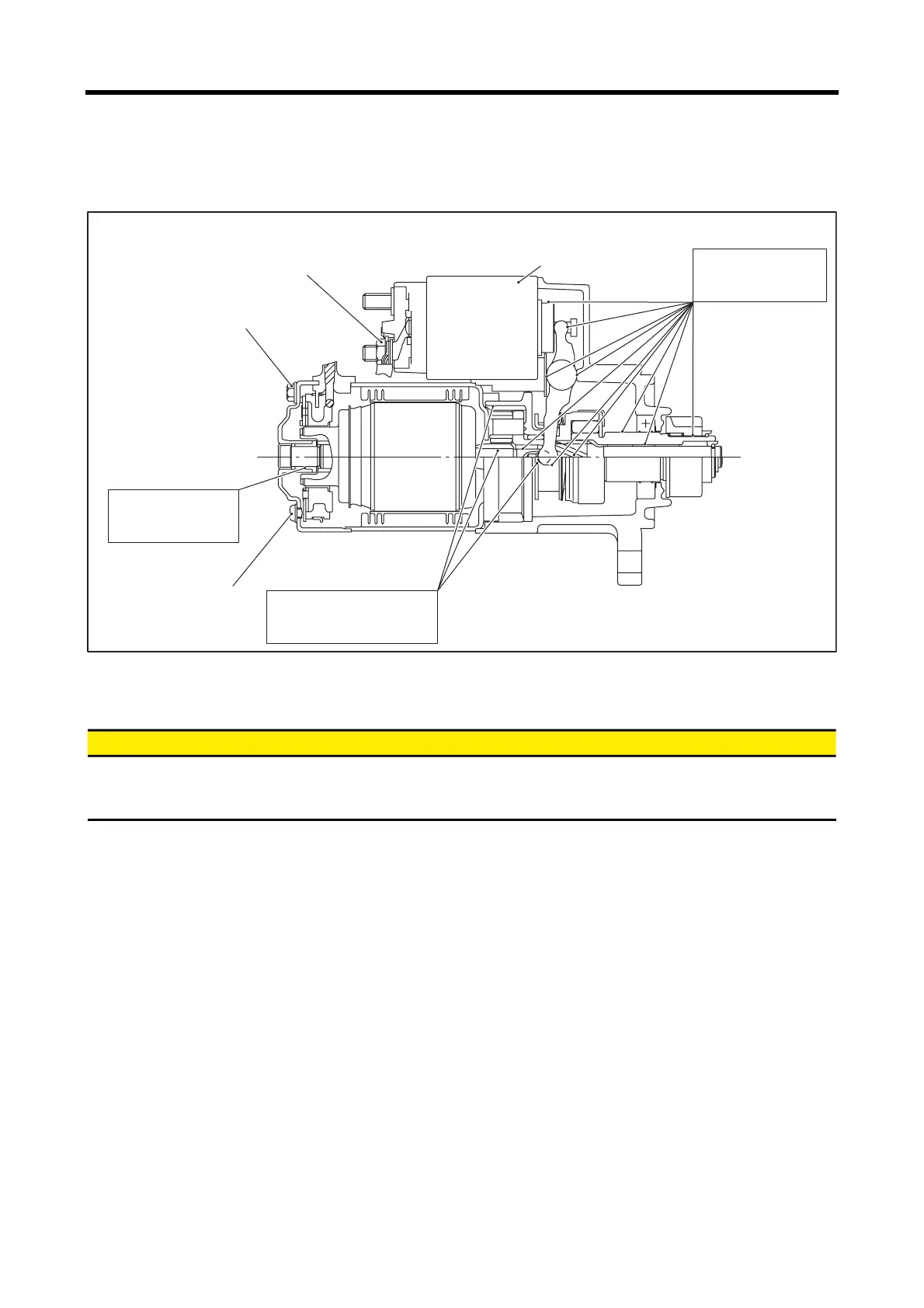

When overhauling the starter, apply grease to the following sliding surfaces, gears and bearings.

(1) Areas to which Multemp PS2 (Kyodo Yushi made) or the equivalent is applied

(2) Areas to which Molykote AG-650 (Dow Corning Asia made) or the equivalent is applied

Plunger surface (a small amount) Spline of gear shaft

Shaft sliding area of overrunning clutch Sliding area between lever and overrunning clutch

Gear shaft Bearing of gear shaft

Pinion gear fitting surface Rear bearing

Ball Gear shaft, gear and internal gear of armature

4.1 to 7.6 N㨯m

{0.42 to 0.77 kgf㨯m}

[7 to 9 lbf㨯ft]

2.4 to 4.4 N㨯m

{0.24 to 0.45 kgf㨯m}

[7 to 9 lbf㨯ft]

8.8 to 12.7 N㨯m

{0.90 to 1.30 kgf㨯m}

[7 to 8 lbf㨯ft]

4.4 to 7.1 N㨯m

{0.45 to 0.72 kgf㨯m}

[7 to 9 lbf㨯ft]

Apply Multemp PS2

(Kyodo Yushimade)

or equivalent.

Apply Molykote RAG650

(Dow Corning Asia made)

or equivalent.

Apply Multemp PS2

(Kyodo Yushi made)

or equivalent.
