FUEL SYSTEM
8-6

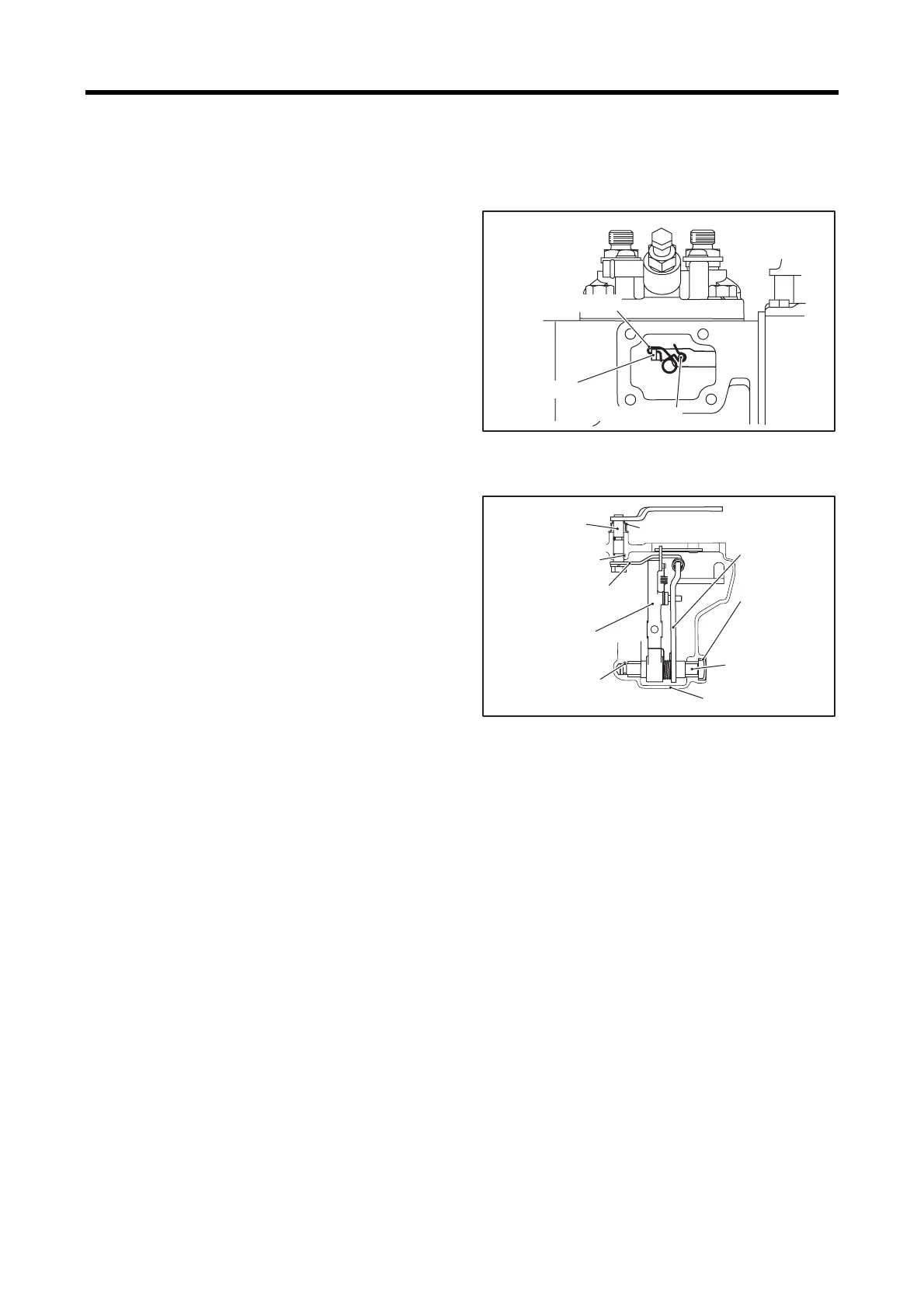

1.3.1 Disconnecting tie rod from control rack
(1) Remove the tie rod cover.
(2) Remove the tie rod clip and disconnect the tie rod from
the control rack.
Disconnecting tie rod from control rack
1.3.2 Removing governor shaft and speed con-
trol lever
(1) Remove the sealing cap from the side of the gear case.
(2) Pull out the grooved pin A.
(3) Remove the governor shaft, and remove tension lever
and governor lever.
(4) Remove the governor spring lever.
(5) Remove the grooved pin B and remove speed control
lever.
(6) Remove the governor cover.
Removing governor shaft and
speed control lever
Tie rod
Control rack
Tie rod clip
Speed control
lever
Grooved pin B
Grooved pin A
Governor spring lever
Governor lever
Gear case
Governor shaft
Governor shaft cover
Tension lever
Sealing cap
