ELECTRICAL SYSTEM
12-47

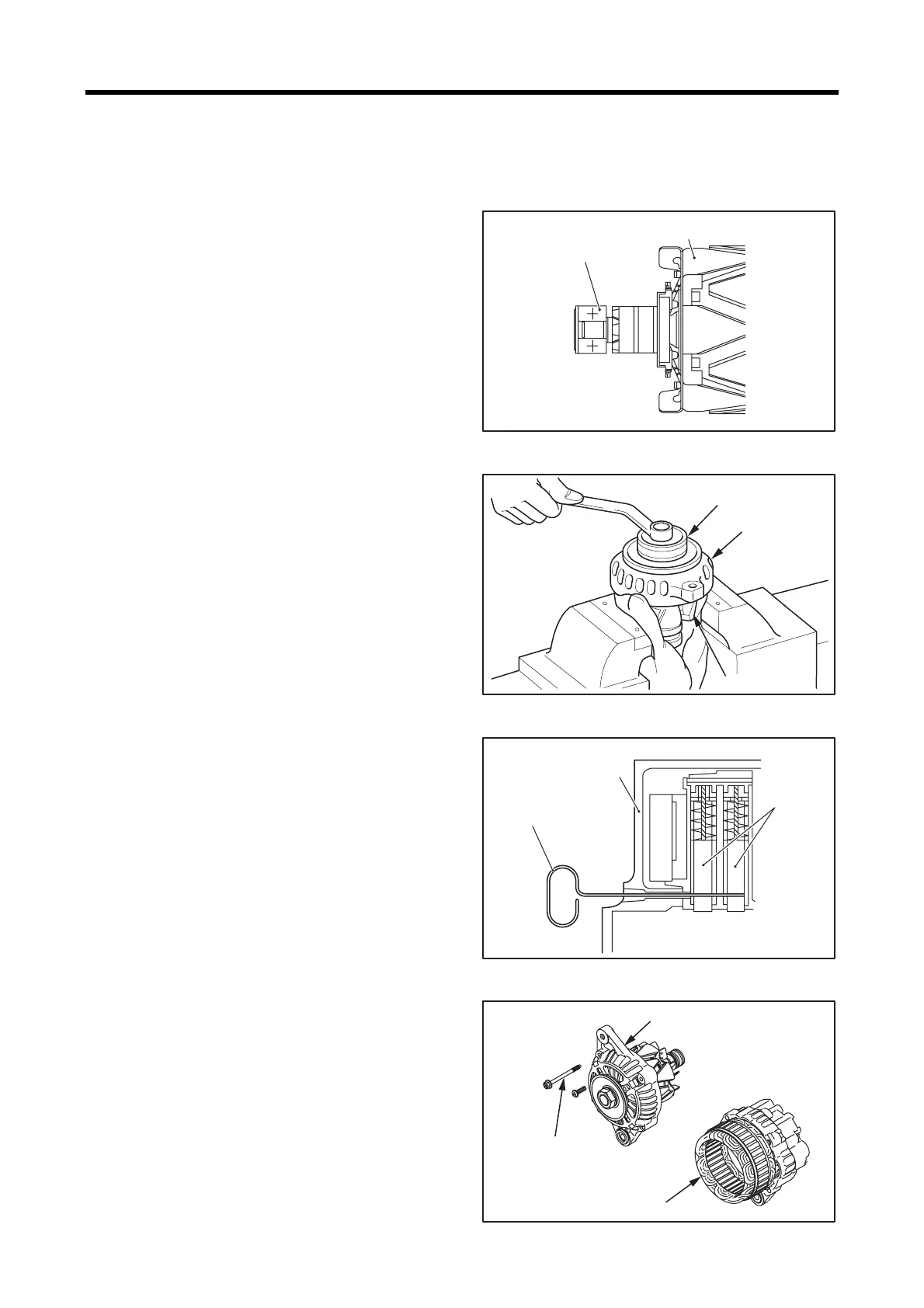

2.12.4 Installing rear bearing
Press-fit the rear bearing to the rotor.
Installing rear bearing
2.12.5 Installing pulley
(1) Insert the rotor into the front bracket.
Apply a cloth to the rotor and set it in a vise.
(2) Install the spacer and pulley, and secure the pulley with
a nut.
Installing pulley
2.12.6 Assembling stator and front bracket
(1) When installing the rotor into the rear bracket, lift the
brushes with a piece of wire inserted through the small
hole in the bracket. After installation, remove the wire.
(2) Assemble the front bracket, stator and rear bracket and
secure them with through bolts.
Securing brushes
Joining stator and front bracket
Rear bearing
Rotor
Pulley
Front bracket
Rotor
Wire
Rear bracket
Brush
Through
bolt
Stator core
Front bracket
