REASSEMBLY OF BASIC ENGINE
7-13

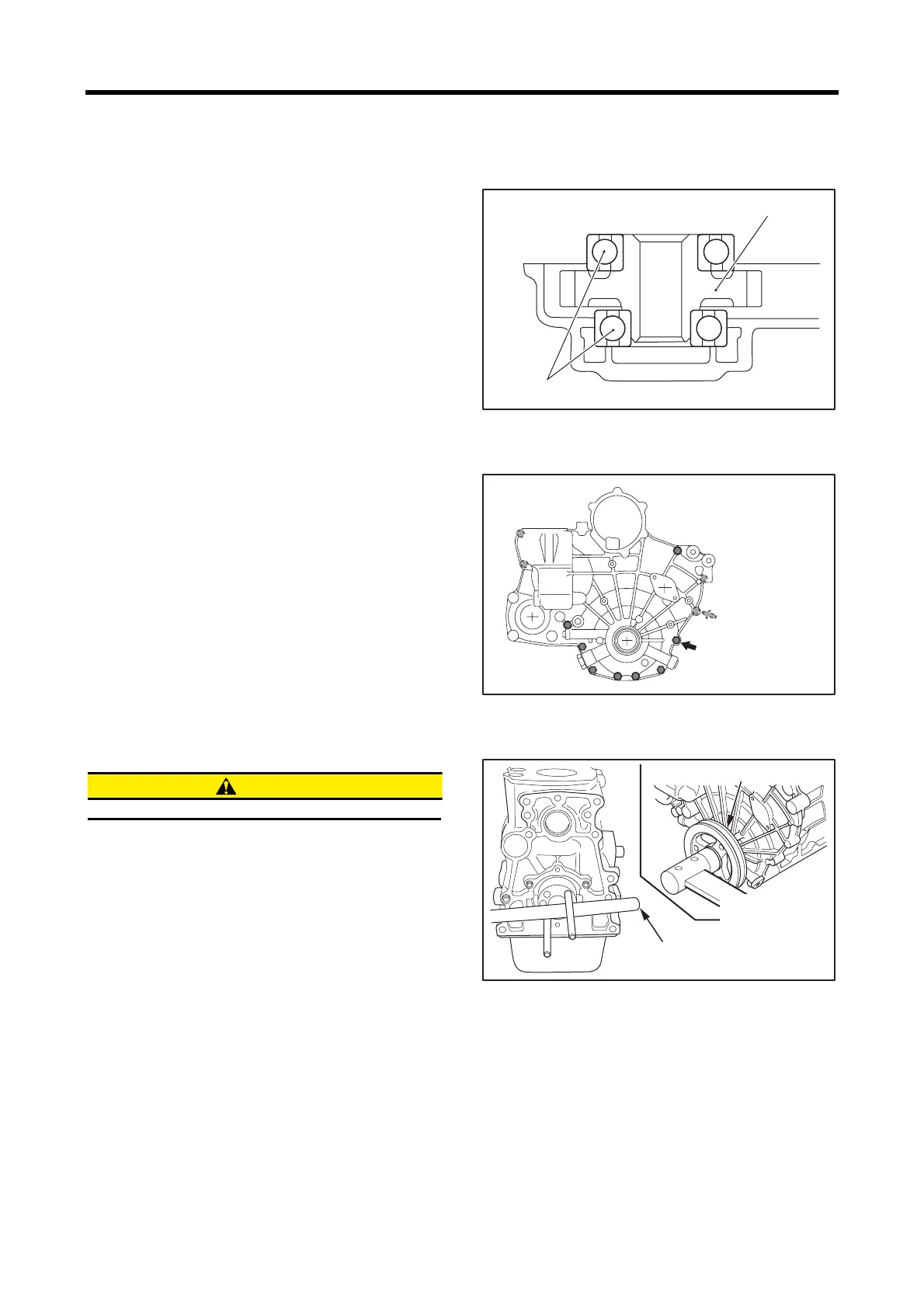

2.11 Installing PTO gear
Install ball bearings on both sides of PTO gear, and install
the PTO gear into the gear case.
Installing PTO gear
2.12 Installing timing gear case
(1)
Apply sealant to the gasket to prevent it from displacing
and install the gasket on the front plate.
(2) Apply engine oil to the oil seal lip.
(3) Install the timing gear case and tighten the bolts.
Installing gear case
2.13 Installing crankshaft pulley
&$87,21
The bar could come off. Be very careful.
(1) Screw two guide bolts into the threaded holes at the rear
end of the crankshaft. Place a bar across the two guide
bolts so that the crankshaft does not turn.
(2) Install the woodruff key on the crankshaft.
(3) Install the crankshaft pulley and tighten the nuts to the
specified torque.
Installing crankshaft pulley
Ball bearing
PTO gear
Bolt on rear
Bolt on front
Bolts on front: 8 pcs.
Bolts on rear: 4 pcs.
Crankshaft pulley
Prevent the crankshaft
from rotating.
98.1 to 117.7 N㨯m
{10 to 12 kgf㨯m}
72.3 to 86.8 lbf㨯ft]
To Next Page
