ELECTRICAL SYSTEM

12-28

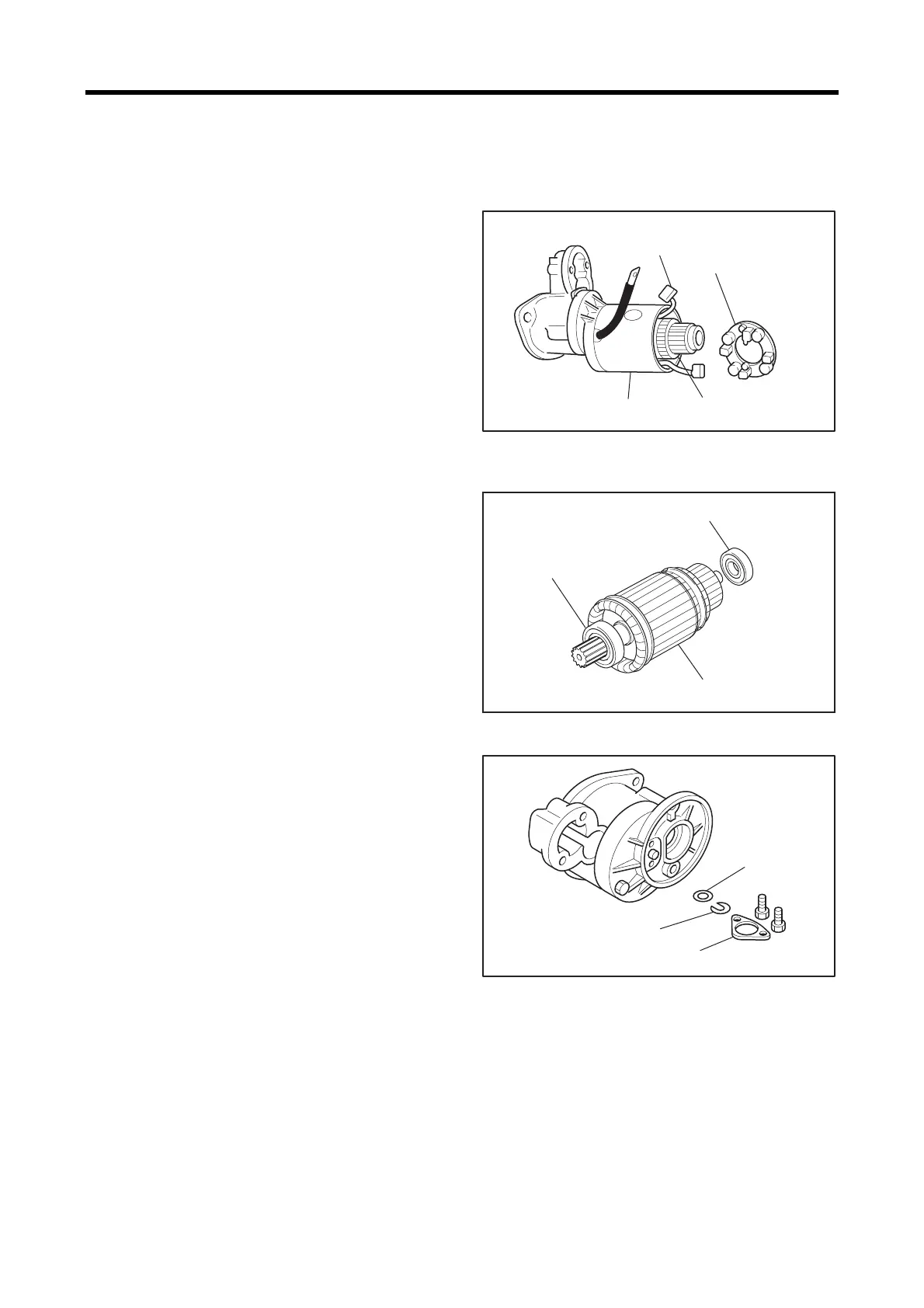

2.7.4 Removing brushes, brush holder, yoke and

armature

While lifting the two brushes, remove the yoke and brush

holder assembly. Then, pull out the armature.

Removing brushes, brush holder, yoke and

armature

2.7.5 Removing ball bearing

Remove the bearings from both ends of the armature using a

puller.

Removing ball bearings

2.7.6 Removing cover set

Remove the cover, and pull out the snap ring and the

washer.

Removing cover

Brush holder

Brush

Yoke Armature

Front bearing

Rear bearin

Armature

Washer

Snap ring

Cover
