FUEL SYSTEM

8-5

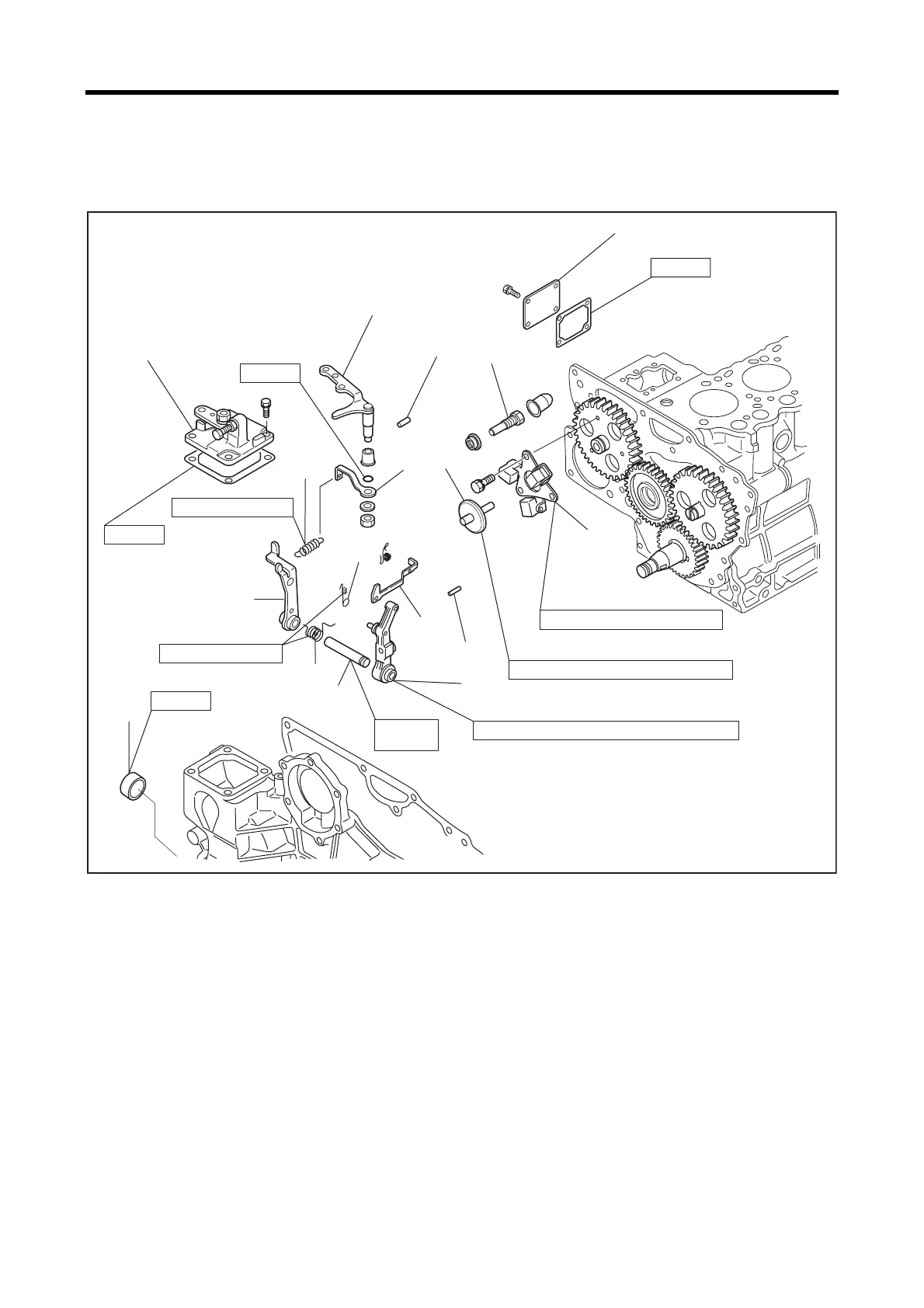

1.3 Removing governor

Removing governor

Removing sequence

1 Tie rod cover 7 Tension lever 13 Governor lever

2 Governor lever 8 Start spring 14 Grooved pin

3 Governor spring 9 Tie rod spring 15 Speed control lever

4 Sealing cap 10 Tie rod 16 Sliding shaft

5 Grooved pin 11 Tie rod crip 17 Governor weight

6 Governor shaft 12 Governor lever 18 Torque spring set (rack set

screw)

Wear and damage of weight

Wear and damage of sliding sleeve

Damage

and wear

Fatigue and crack

Wear and damage of sliding shaft contact

Replace


































