REASSEMBLY OF BASIC ENGINE

7-20

4.9 Reassembling rocker shaft assembly

Install the rocker shaft assembly in the reverse order of the

disassembly sequence, observing the followings:

(1) Apply engine oil to the rocker shaft.

(2) Install the rocker shaft assembly in the same position as

it was.

Note: If the rocker shaft assembly is not installed in the

same position, the clearance becomes different, and it

may result in a defect such as wear increase.

(3) Align oil holes of the rocker shaft with those of the

rocker stay, and drive a grooved pin into the front

rocker stay.

Note: Drive in the grooved pin until it comes into contact

with the inside of the rocker shaft.

(4) After reassembling, make sure the rocker arms move

freely.

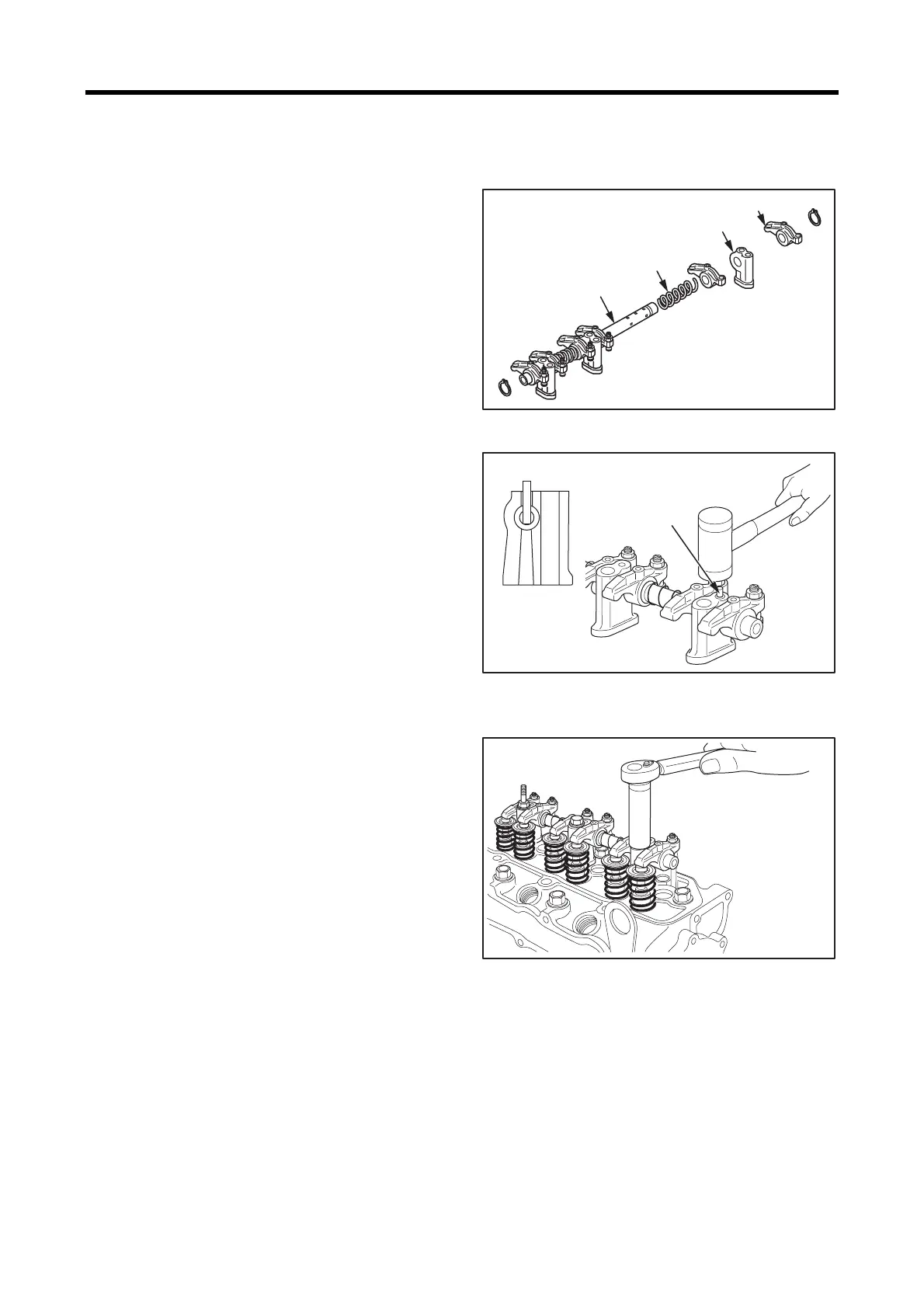

Reassembling rocker shaft assembly

Driving in grooved pin

4.10 Installing rocker shaft assembly

(1)

Install the valve caps to the valve heads.

(2) Tighten the long bolts of the rocker bracket to the

specified torque.

(3) Tighten the short bolts of the rocker bracket.

Installing rocker shaft assembly

Rocker shaft

Rocker shaft spring

Rocker stay

Rocker arm

Grooved pin

Tightening torque

14.7 to 21.6 N㨯m

{1.5 to 2.2 kgf㨯m}

[10.8 to 15.9 lbf㨯ft]
