FUEL SYSTEM

8-20

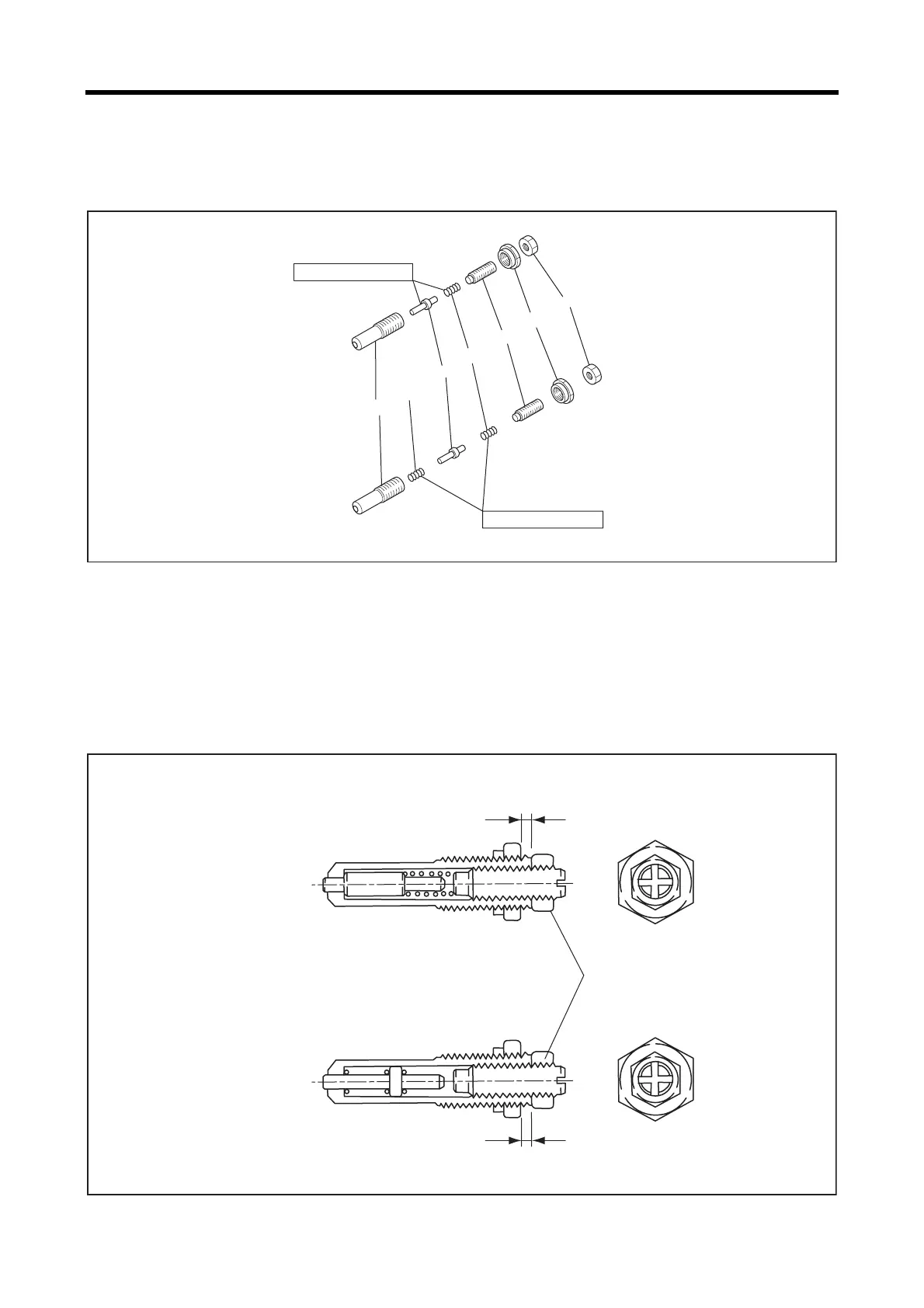

2.8 Disassembling and inspecting torque spring set

Disassembling and inspecting torque spring set

Disassembling sequence

2.9 Reassembling torque spring set

Reassembling torque spring set

1 Locknut 4 Spring stopper

2 Adjusting screw 5 Torque spring (2 spring type)

3 Torque spring 6 Torque spring case

Fatigue and crack

(Single spring type)

(Double spring type)















(Single spring type)

(Double spring type)

Approx. 2mm [0.08in.]

7.8 to 11.8N㨯m

{0.8 to1.2kgf㨯m}

[5.8 to 8.7lbf㨯ft]
