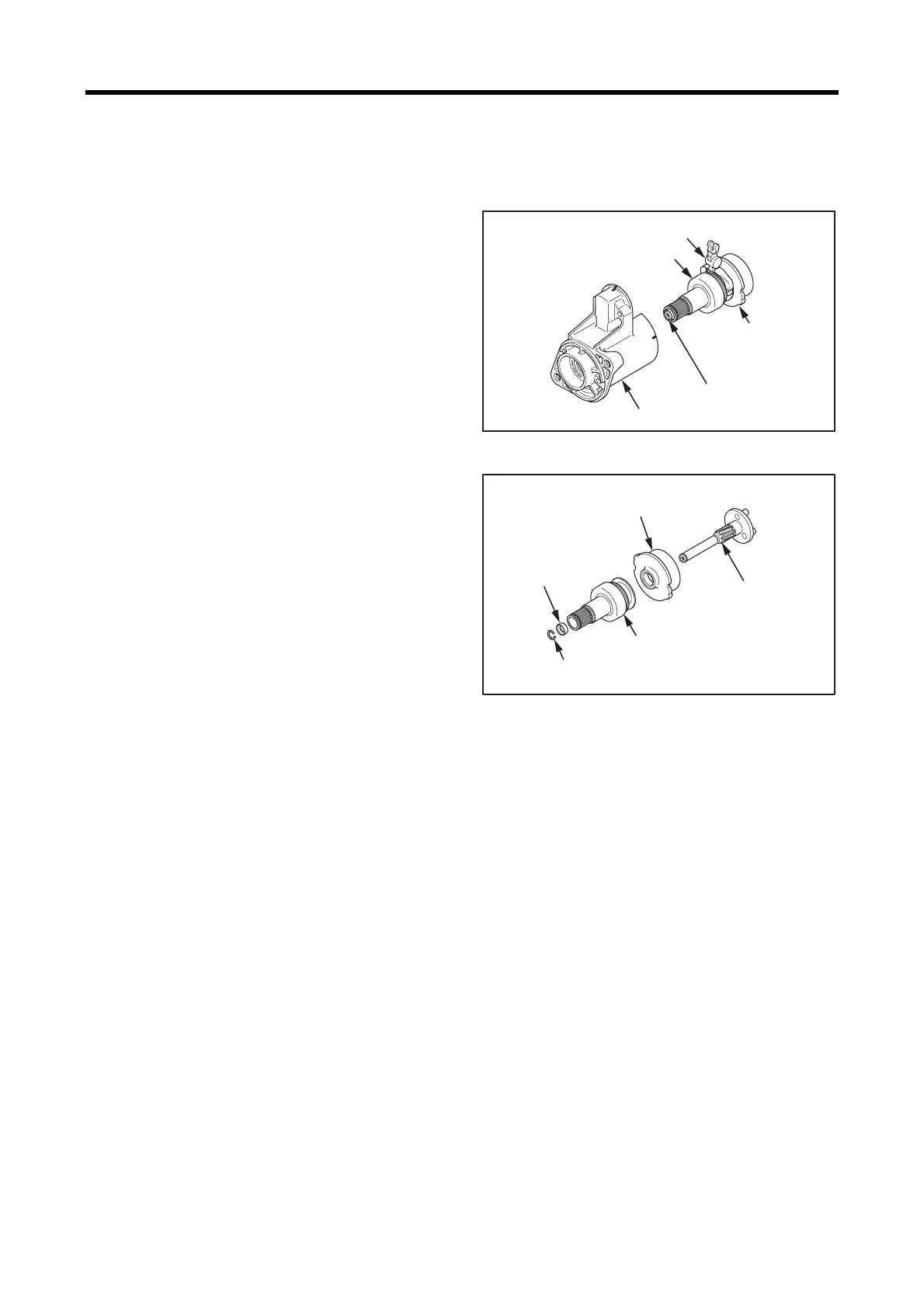

2.3.6 Removing overrunning clutch
Pull out the internal gear, gear shaft, overrunning clutch and
lever as an assembly from the front bracket, and remove the
lever.
Removing overrunning clutch
2.3.7 Removing gear shaft
(1) Remove the stopper ring and then the stopper.
(2) Separate the overrunning clutch, internal gear and gear
shaft.
Removing gear shaft
Lever
Front bracket
Gear shaft
Overrunning clutch
Internal gear
Stopper ring
Stopper
Overrunning clutch
Internal gear
Gear shaft
