REASSEMBLY OF BASIC ENGINE
7-18

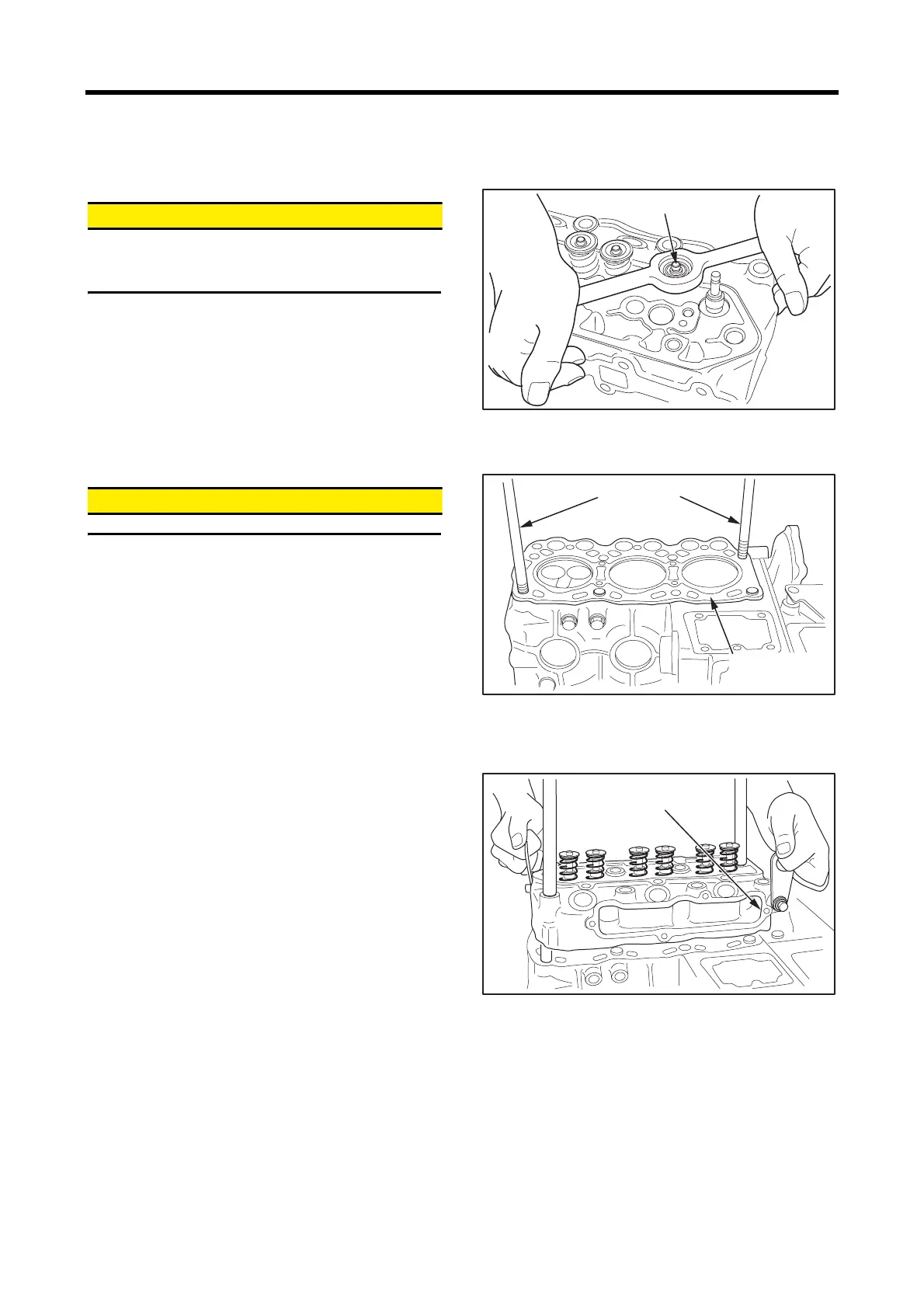

4.4 Installing valve lock
&$87,21
If valve spring is overcompressed, the lower end of the
retainer comes into contact with the stem seal, and
causes damage to the stem seal.
Install the retainer on the valve spring.
Compress the valve spring using a valve lifter, and install
the valve locks.
Installing valve lock
4.5 Installing cylinder head gasket
&$87,21
Do not use liquid gasket.
(1) Make sure that there is no dirt or dents on the top
surfaces of the cylinder block and pistons.
(2) Screw in two guide bolts in the bolt holes of the
cylinder block.
(3) Place the new cylinder head gasket on the cylinder
block aligning to the guide bolts.
Note: The model name is stamped on the front top face of
the gasket so that it is not confused with one for other
model.
Installing cylinder head gasket
4.6 Installing cylinder head assembly
Align the cylinder head to the locating guide bolts, and
install the cylinder head.
Installing cylinder head assembly
Valve lock
Guide bolt
Cylinder head
gasket
Cylinder head
To Next Page
