Modification mode

[12]-16

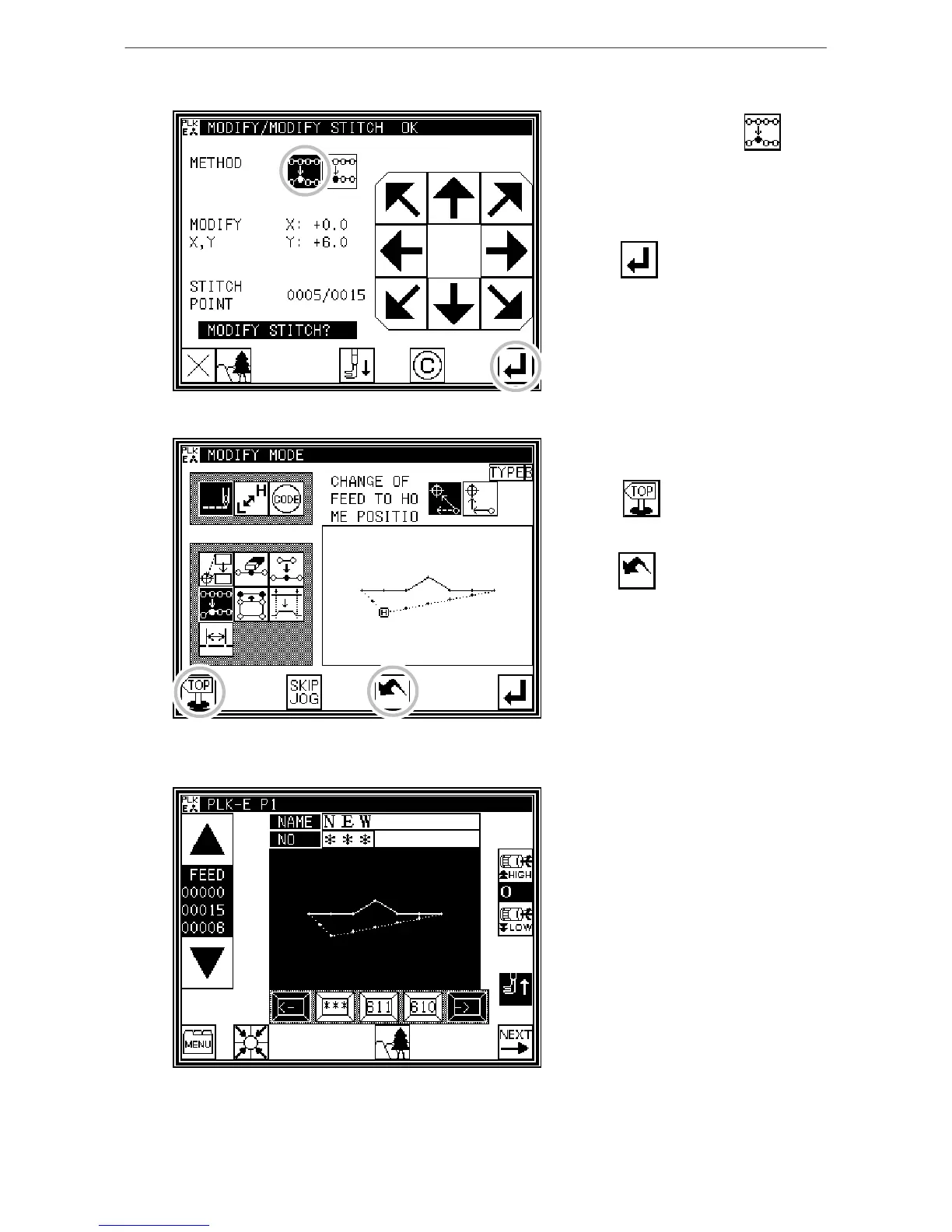

3. Setting the modification method and modification amount



* To set the method, press

(pattern data after modification stitch

fixed), and move to the modification

position (point D') using the arrow

mark keys.



* Press .



(The stitch position will be modified.)



[Memo] Move the stitch length so that it

is within the range of 12.7mm at

the maximum.



4. Confirming after modification



* Quit the modification mode.



Press to return to the Standard

screen.



(When is pressed,

the modifications executed last will be

undone.)



5. Confirming with the Standard screen



* The stitch position has been modified.


