Mitsubishi PLK-E Series - Modifying the Stitch Position (Subsequent Data Position Moved) [12]-18

To Next Page

To Previous Page

Modification mode

[12]-17

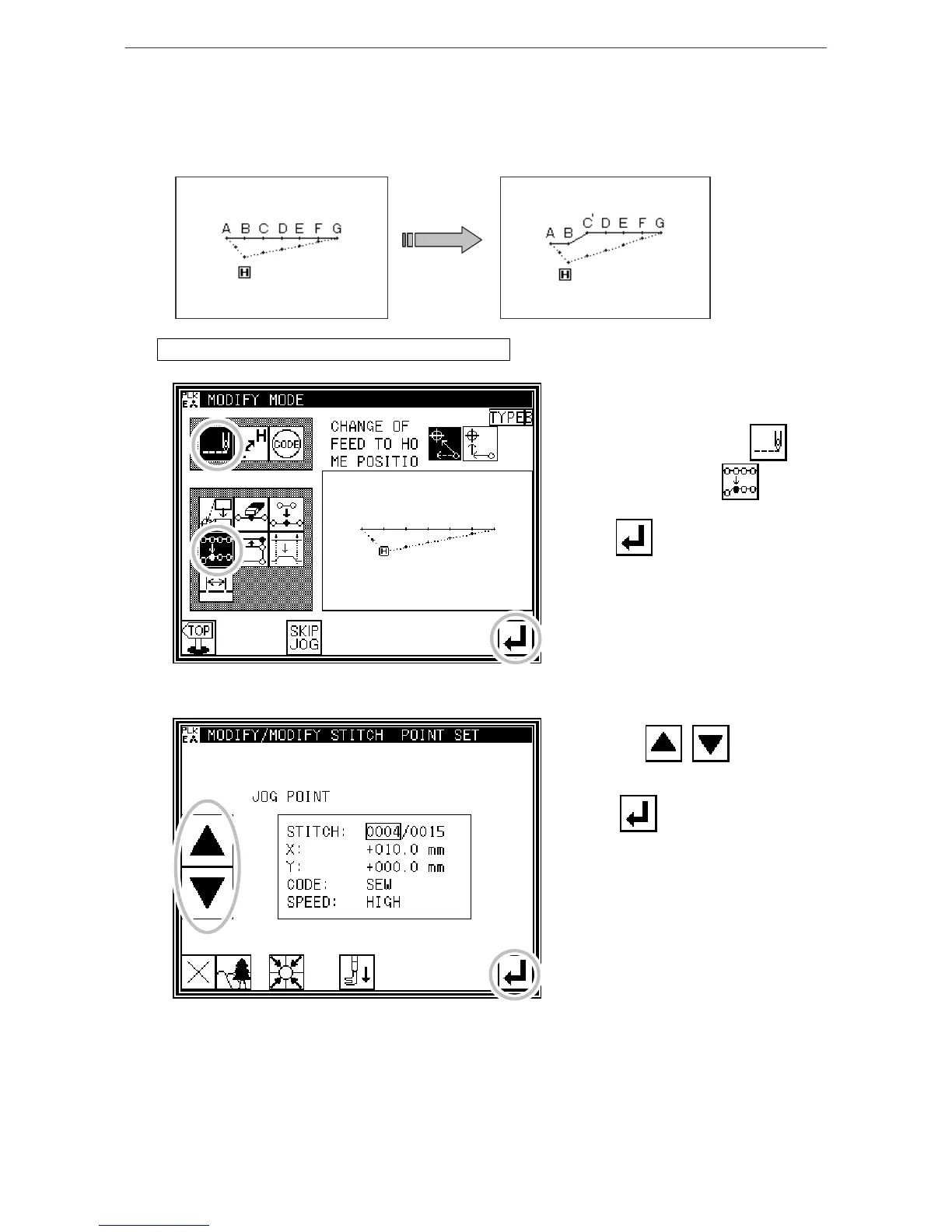

(12) Modifying the stitch position (Subsequent data position moved)

[Example] The C point in the following type of stitching data will be moved.

(The D, E, F and G points will move)



Operationdetails(Subsequentdatapositionmoved)

1. Selecting stitch position modification



* Enter the modification mode.



* Press Stitch Data Change and

Stitch Position Modify .



* Press to open the next screen.



2. Determining the modification position



* Using Jog , , determine

the position to be modified.(C point)



* Press when the position has

been set.


