Modification mode

(8) Deleting a stitch (Deleting all stitches after the designated position)

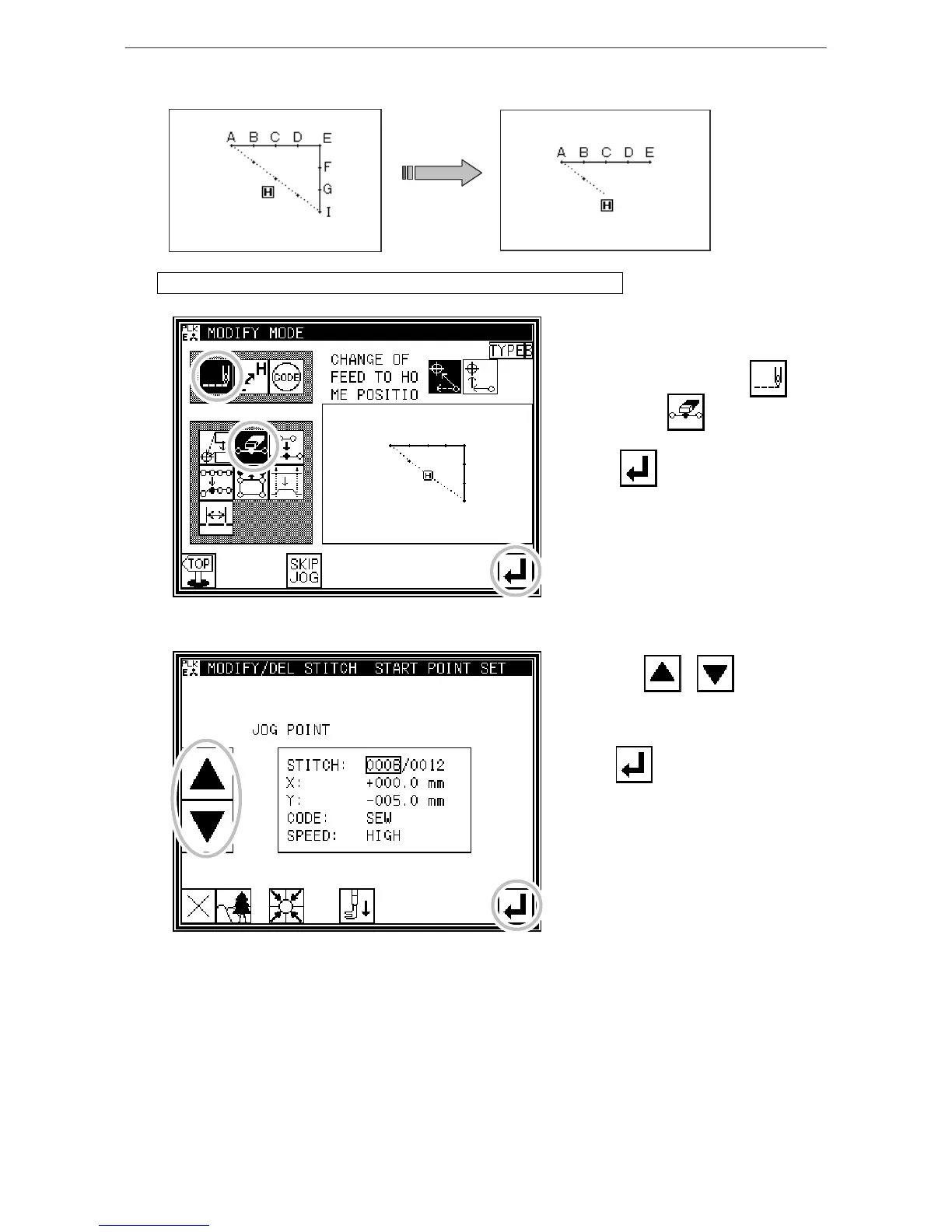

[Example] The stitching pattern after the E point in the following type of stitching data will be deleted.



Operationdetails(Deletingallstitchesafterthedesignatedposition)

1. Selecting deletion of stitches



* Enter the modification mode.



* Press Stitch Data Change and

Stitch Delete .



* Press to open the next screen.



2. Determining the deletion position



* Using Jog , , determine

the position to be deleted. Move to the

deletion position (point E).



* Press when the position has

been set.


