Modification mode

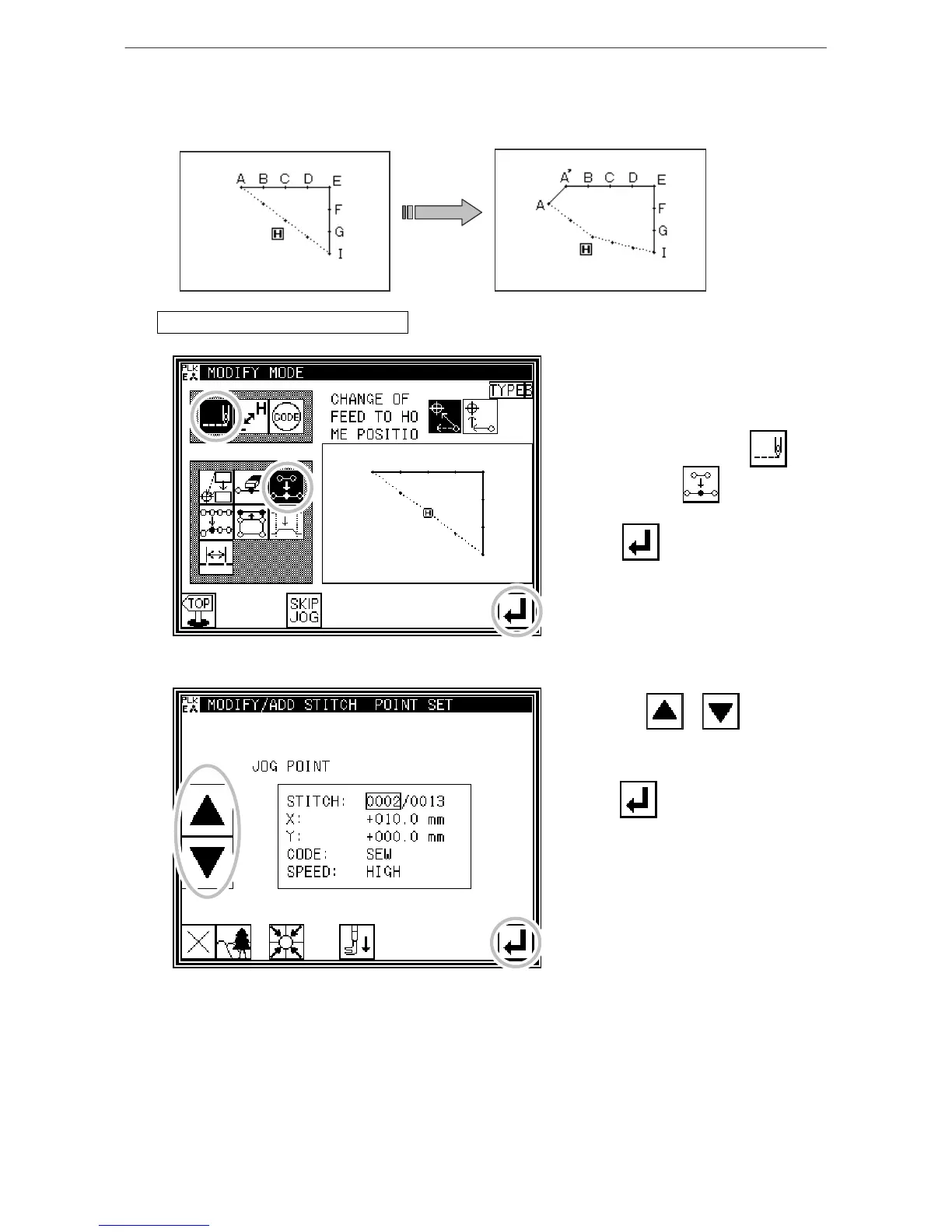

(9) Adding a stitch (Adding one stitch)

[Example] The required stitch length A' will be added to the A point of the following type of stitching data.

(The maximum stitch length is 12.7mm (between A and A').)



Operationdetails(Addingonestitch)

1. Selecting stitch addition



* Enter the modification mode. (Refer to

the methods for entering the

modification mode.)



* Press Stitch Data Change

and Stitch Add .



* Press to open the next screen.



2. Determining the addition position



* Using Jog , , determine

the position to be added. Move to the

addition position (point A).



* Press when the position has

been set.


