Modification mode

[12]-53

(24) Modifying code data (Deleting code data)

[Example] The needle UP halt code (USTP) will be deleted from the D point of the following type of

stitching data.



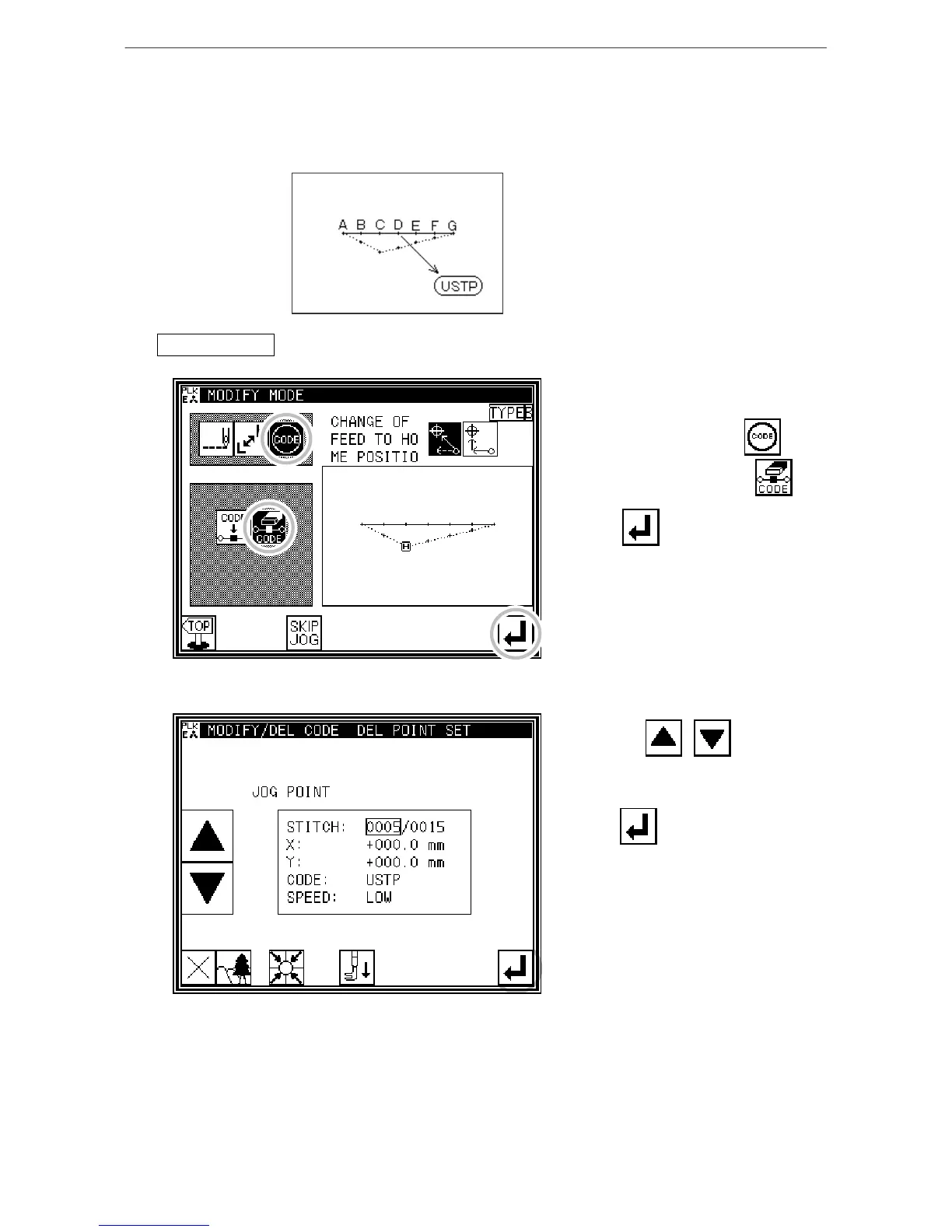

Operationdetails

1. Selecting code data deletion



* Enter the modification mode.



* Press Code Data Change , and

then press Code Data Delete .



* Press to open the next screen.



2. Determining the code deletion position



* Using Jog , , determine

the position to delete the code.

(D point)



* Press after determining

the position.


