Modification mode

(15) Modifying a block 1 (Linear input)

[Example] The section between the A point and B point of the following type of stitching pattern will be

modified to a linear line.



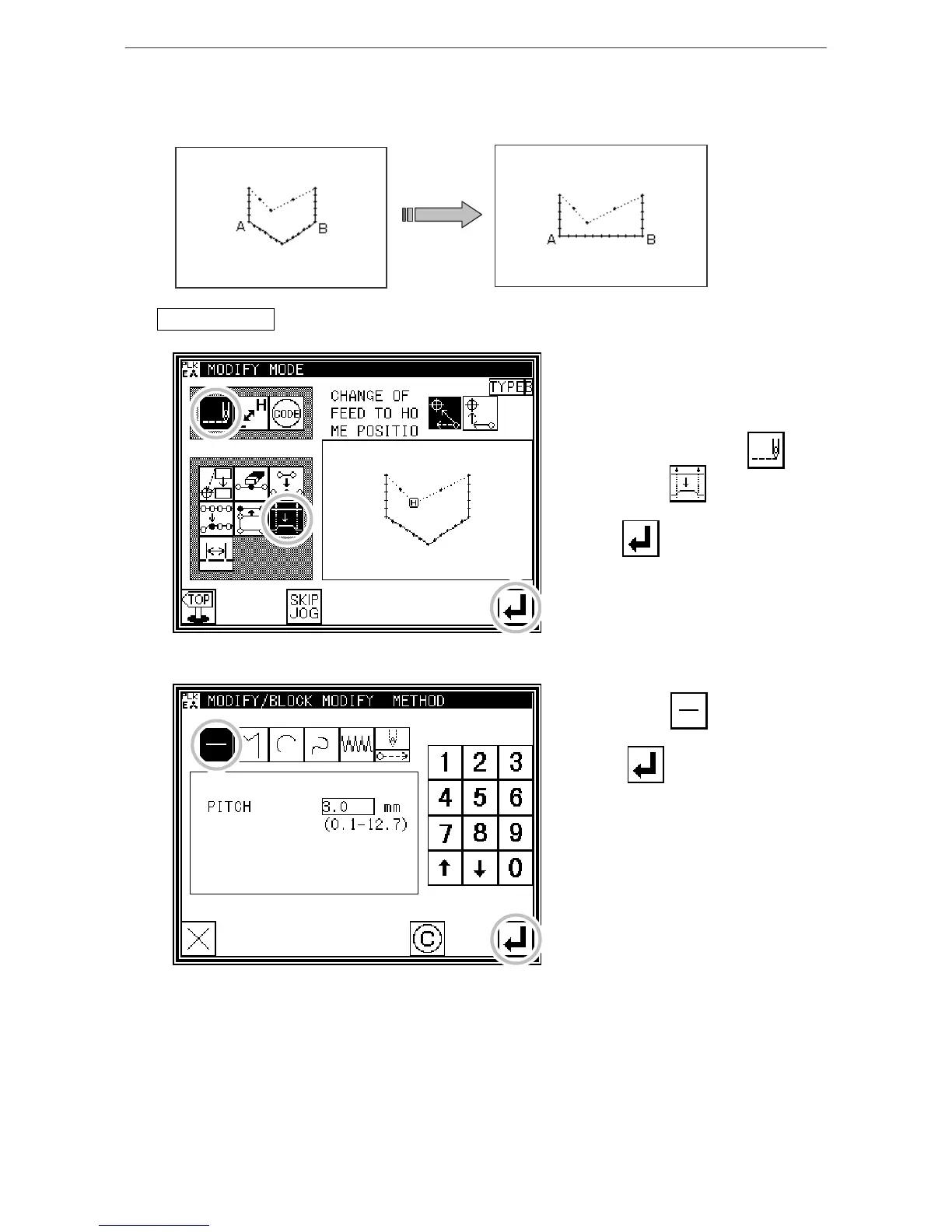

Operationdetails

1. Selecting block modification



* Enter the modification mode. (Refer to

the methods for entering the

modification mode.)



* Press Stitch Data Change and

Block Modify .



* Press to open the next screen.



2. Selecting the input type



* Press Linear .



* Press to set the data.


