Modification mode



[12]-22

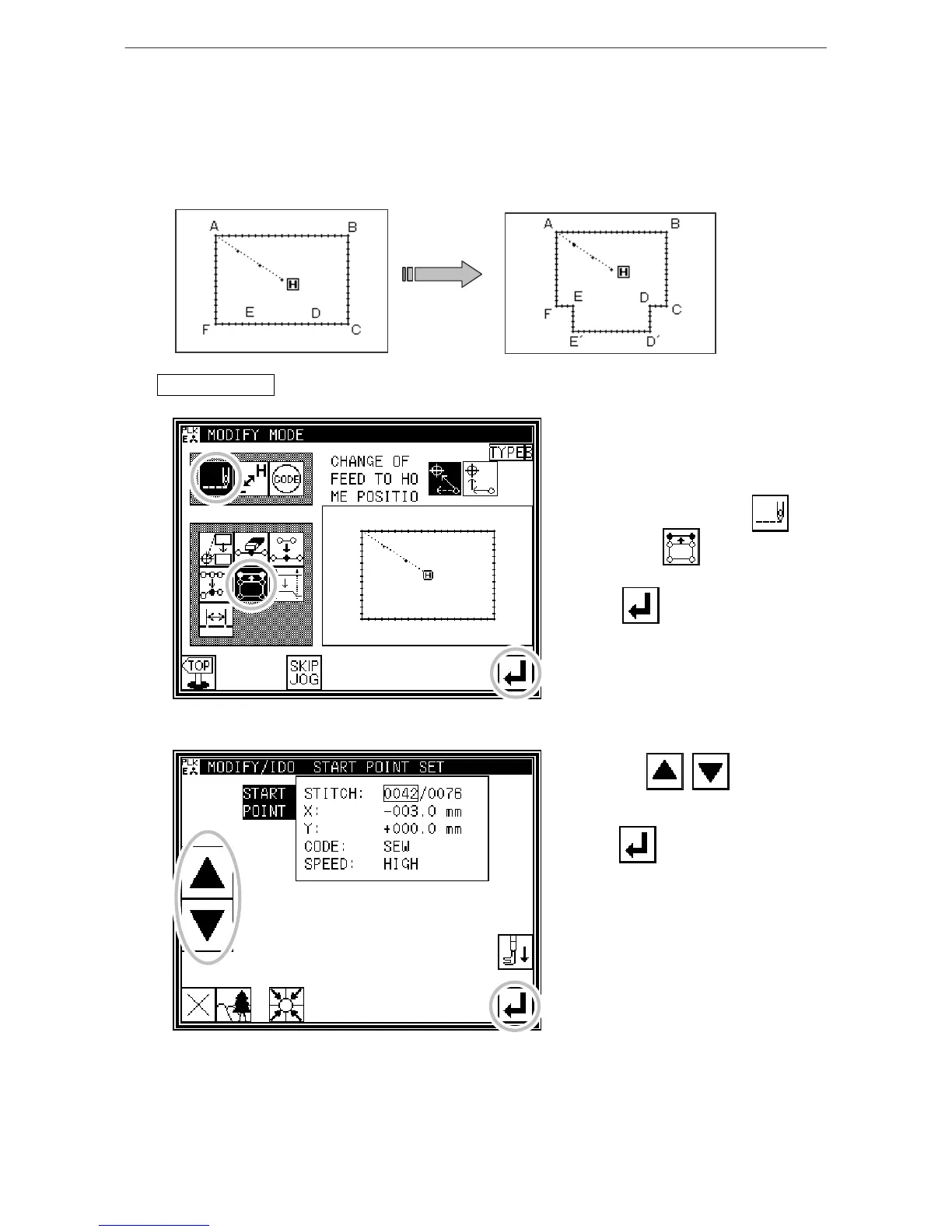

(14) Moving a block (Adding new data to the prior/subsequent data)

[Example] The section between the D point and E point of the following type of stitching data will be

moved to the D' point to E' point. At this time, new data will be added prior to and after the D'

point to E' point. (the D point to D' point and the E point to E' point)



Operationdetails

1. Selecting block movement



* Enter the modification mode. (Refer to

the methods for entering the

modification mode.)



* Press Stitch Data Change and

Block Move .



* Press to open the next screen.



2. Determining the block modification range (start point)



* Using Jog , , determine

the start point position.(D point)



* Press .


