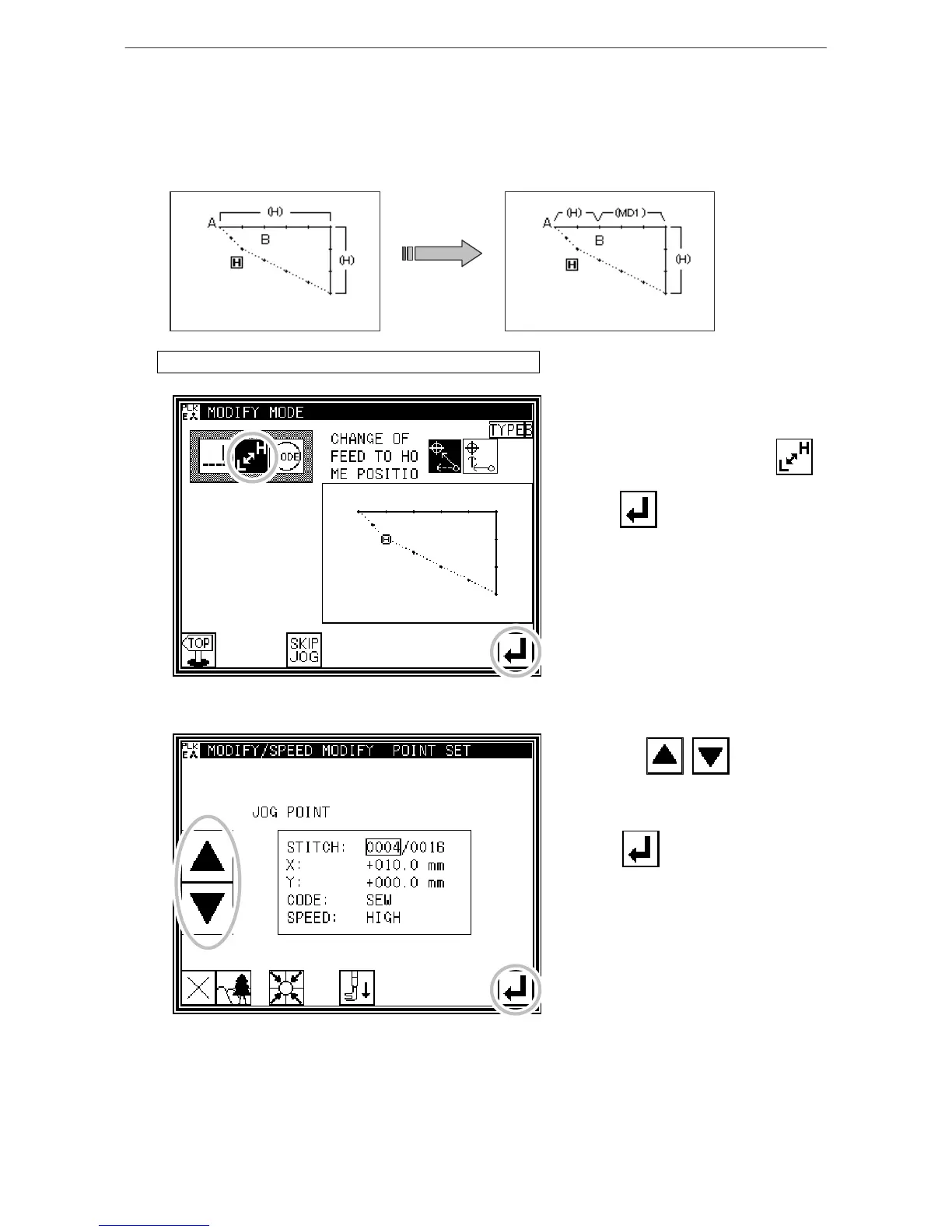

(22) Modifying the stitching speed (N stitches after designated position)

[Example] The stitching speed for three stitches after the B point in the following type of stitching data

will be changed to medium-high speed(MD1).





Operationdetails(Nstitchesafterdesignatedposition) 

1. Selecting stitching speed modification



* Enter the modification mode.



* Press Stitching Speed Change .



* Press to open the next screen.



2. Determining the modification position



* Using Jog , , determine

the start point position to be

modified.(B point)



* Press after determining

the positions.


