[12]-48

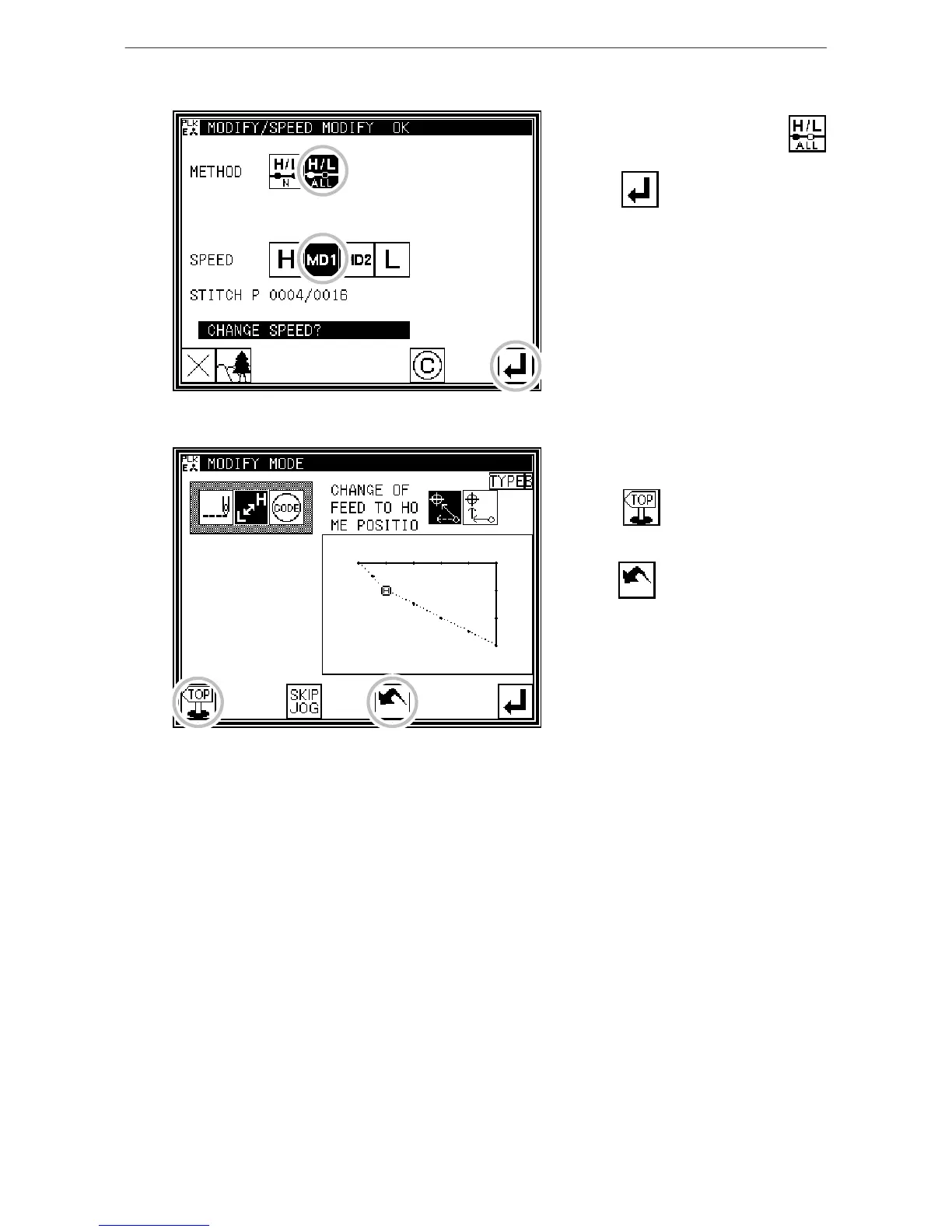

3. Setting the modification method and speed



* Press All After Designated Stitch ,

and set the new speed (MD1).



* Press .



(The stitching speed will be modified.)



4. Confirming the modifications



* Quit the modification mode.



Press to return to the Standard

screen.



(When is pressed,

the modifications executed last will be

undone.)



Table of Contents3
Screen Configuration7
Stitching Data Type and Writing no14
Reading, Writing and Erasing Data (Floppy Disk)16
Reading (from Floppy Disk) [5]-116
Writing (to Floppy Disk) [5]-318
Erasing (from Floppy Disk) [5]-419
Reading, Writing and Erasing Data (Internal Memory)22
Reading (from Internal Memory) [6]-122
Writing (to Internal Memory) [6]-223
Reading, Writing and Erasing Data (Internal Memory) [6]24
Erasing (from Internal Memory) [6]-425
Reading Data (Short Cut Function)27
Creating Simple Stitching Data29
Methods of Creating Stitching Data [9]-136
Linear Input [9]-136
Arc Input [9]-440
Circle Input [9]-845
Curve Input [9]-1149
Curve Input [9]51
Point Input [9]-2055
Code Data Input [9]-2359
Back Tacking (Start/End Back Tacking) [9]-2764
Back Tacking (Overlap Back Tacking) [9]-2966
Multiple Stitching [9]-3169
Offset Stitching (with Overlap Back Tacking) [9]-3473
Zigzag Stitching (with Overlap Back Tacking) [9]-3676
[11] Call-Up Function80
Call-Up Function [11]80
[12] Modification Mode81
Main Modification Mode Functions [12]-181
Entering the Modification Mode [12]-282
Quitting the Modification Mode [12]-282
Changing the Feed Data to Home Position [12]-383
Confirming on the Image Screen [12]-484
Modification Mode [12]86
Modifying the Stitching Start Position [12]-687
Deleting a Stitch (Deleting the Designated No. of Stitches) [12]-890
Deleting a Stitch (Deleting All Stitches after the Designated Position) [12]-1092
Adding a Stitch (Adding One Stitch) [12]-1295
Adding a Stitch (Adding the same Stitch) [12]-1497
Modifying the Stitch Position (Position of Subsequent Data Fixed) [12]-16100
Modifying the Stitch Position (Subsequent Data Position Moved) [12]-18102
Modifying a Block (Changing the Prior/Subsequent Data) [12]-20105
Moving a Block (Adding New Data to the Prior/Subsequent Data) [12]-23108
Modifying a Block 1 (Linear Input) [12]-26112
Modifying a Block 2 (Broken Line, Arc, Curve Input) [12]-29116
Modifying a Block 3 (Zigzag Input) [12]-35123
Modifying a Block 4 (Changing the Feed Data) [12]-38127
Modifying the Stitching Speed (All Sections after Designated Position) [12]-48139
Modifying the Stitching Speed (N Stitches after Designated Position) [12]-50141
Modifying Code Data (Adding Code Data) [12]-52144
Modifying Code Data (Deleting Code Data) [12]-54146
[13] Data Conversion Mode149
Main Data Conversion Mode Functions [13]-1149
Entering the Conversion Mode [13]-2150
Quitting the Conversion Mode [13]-2150
Confirming on the Image Screen (for the Conversion Mode) [13]-2150
Home Position Correction [13]-3151
Back Tacking (Start/End Back Tacking) [13]-5153
Back Tacking (Overlap Back Tacking) [13]-7156
Zigzag Stitching [13]-9159
Scaling [13]-12163
Rotation [13]-17170
Offset [13]-20173
Multiple [13]-23176
[14] Function Mode180
Outline [14]-1180
Explanation of each Function Mode [14]-2181
Sewing Speed207
Appendix209
Program Mode213
