Modification mode

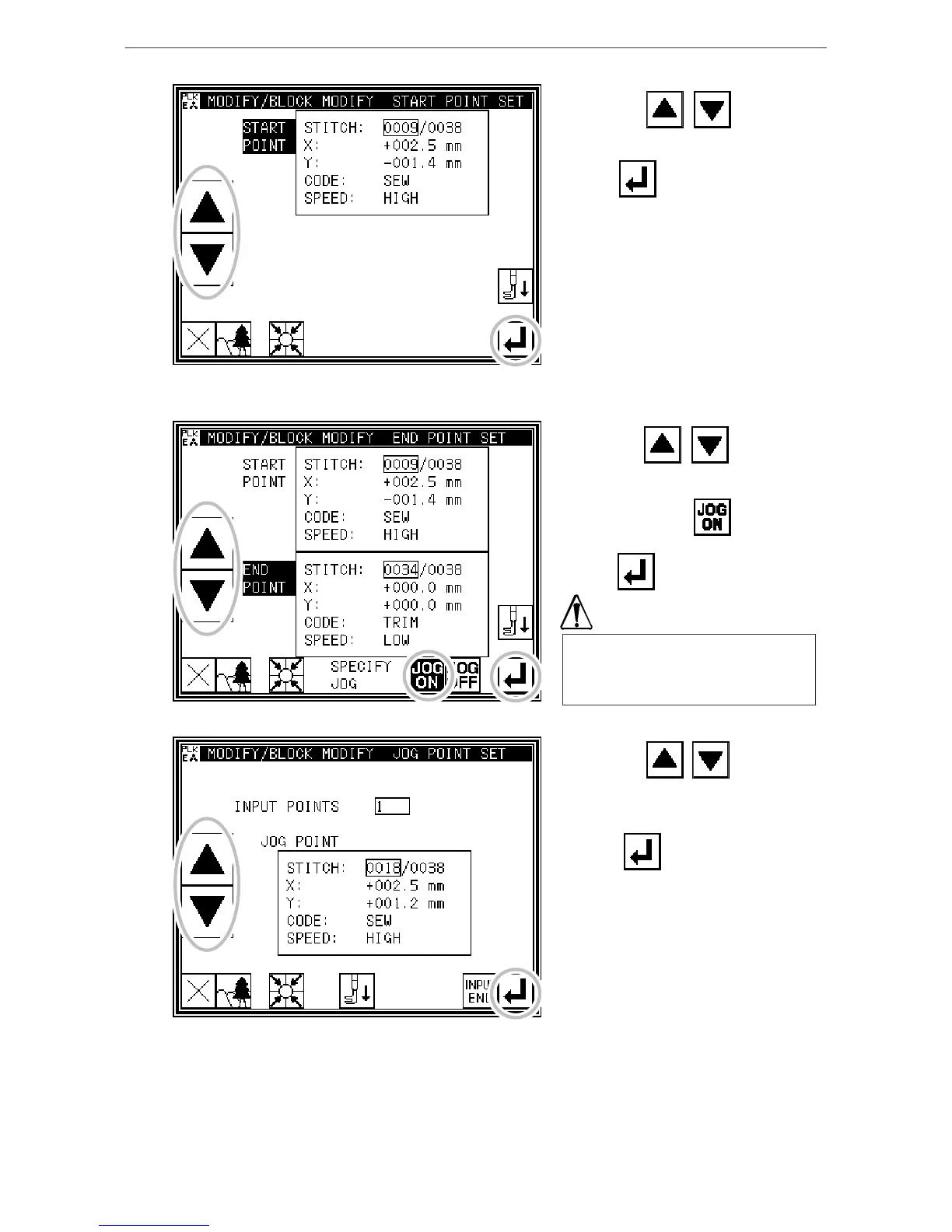

3. Determining the block modification range (start point)



* Using Jog , , determine

the start point position.(B point)



* Press .



4. Determining the block modification range (end point)



* Using Jog , , determine

the end point position.(E point)



* Press Jog Validity .



* Press .



5. Moving and setting the modification origin jog position



* Using Jog , , move to

the position to be modified.

(C point in this example.)



* Press .



When the end point is determined, the

work holder will automatically return

to the start point. Take care when the

needle is lowered, etc.



[12]-30
