Data conversion mode

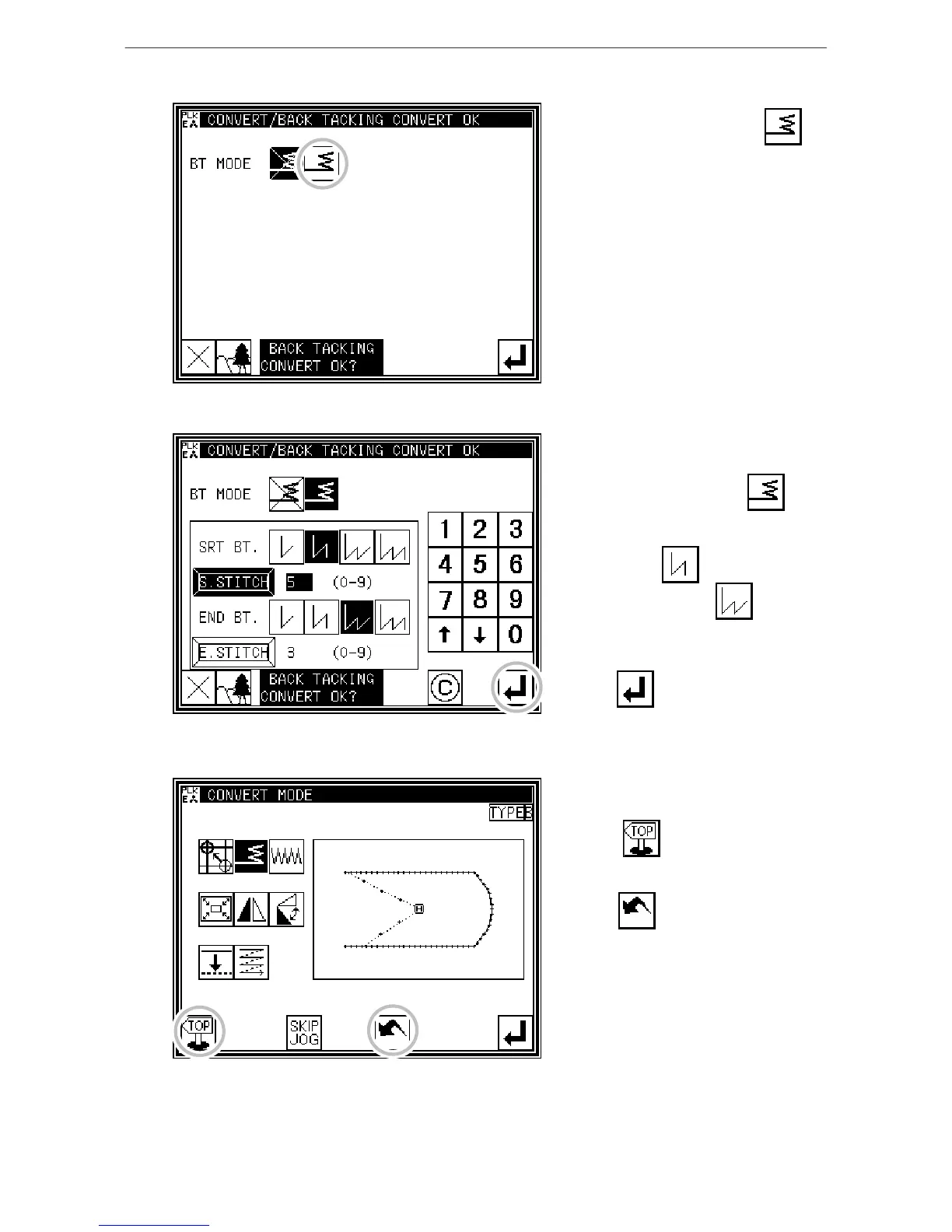

3. Selecting start/end back tacking



* Press start/end back tacking .



[Memo] If the selected block is a

"closed figure", the overlap

back tacking key will also

appear. (Selection will be

enabled.) This is not displayed

in this example. (Selection is

not possible.)



4.Setting the back tacking details



* The details are set on this screen.



(The details set here are, 



(start/end back tacking)),

start mode (N mode), five

start

stitches, end mode (M mode),

three end stitches.)



* Press .



5. Confirming execution of conversion



* Quit the modification mode.



Press to return to the Standard

screen.



(When is pressed,

the modifications executed last will be

undone.)


