Data conversion mode

(10) Symmetrical

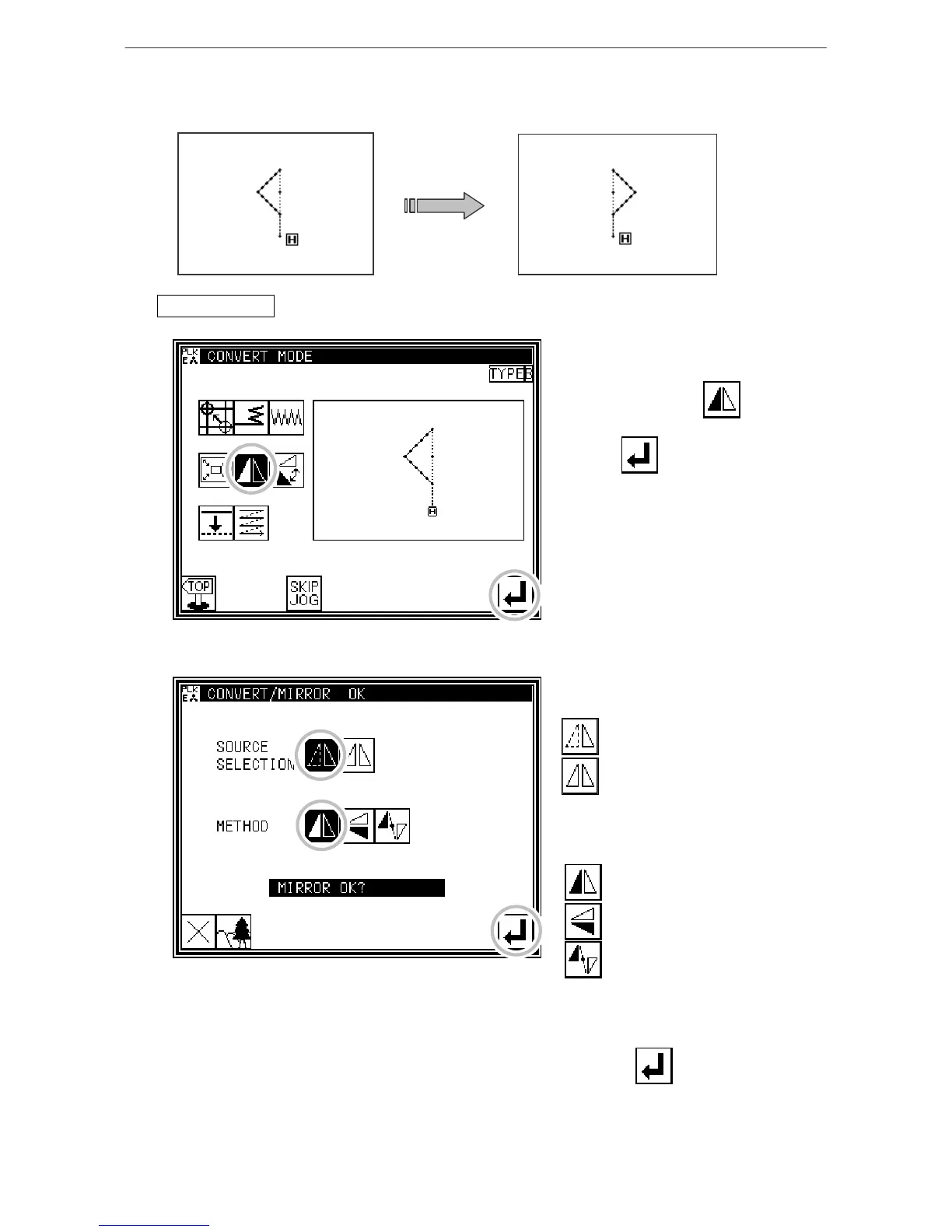

[Example]The left state of the following type of stitching data will be converted into a right state.



Operationdetails

1. Selecting symmetrical



* Enter the conversion mode.



* Press Symmetrical .



* Press .



2. Setting symmetrical method, etc., and executing



* Clearing symmetrical origin data



Delete Symmetrical Origin Data

Keep Symmetrical Origin Data



(Press "Delete" for this example.)



* Method



X Symmetrical Data Creation



Y Symmetrical Data Creation

XY Symmetrical Data Creation



(Press "X Symmetrical Data

Creation" for this example.)



* Press .


