Data conversion mode

[13]-23

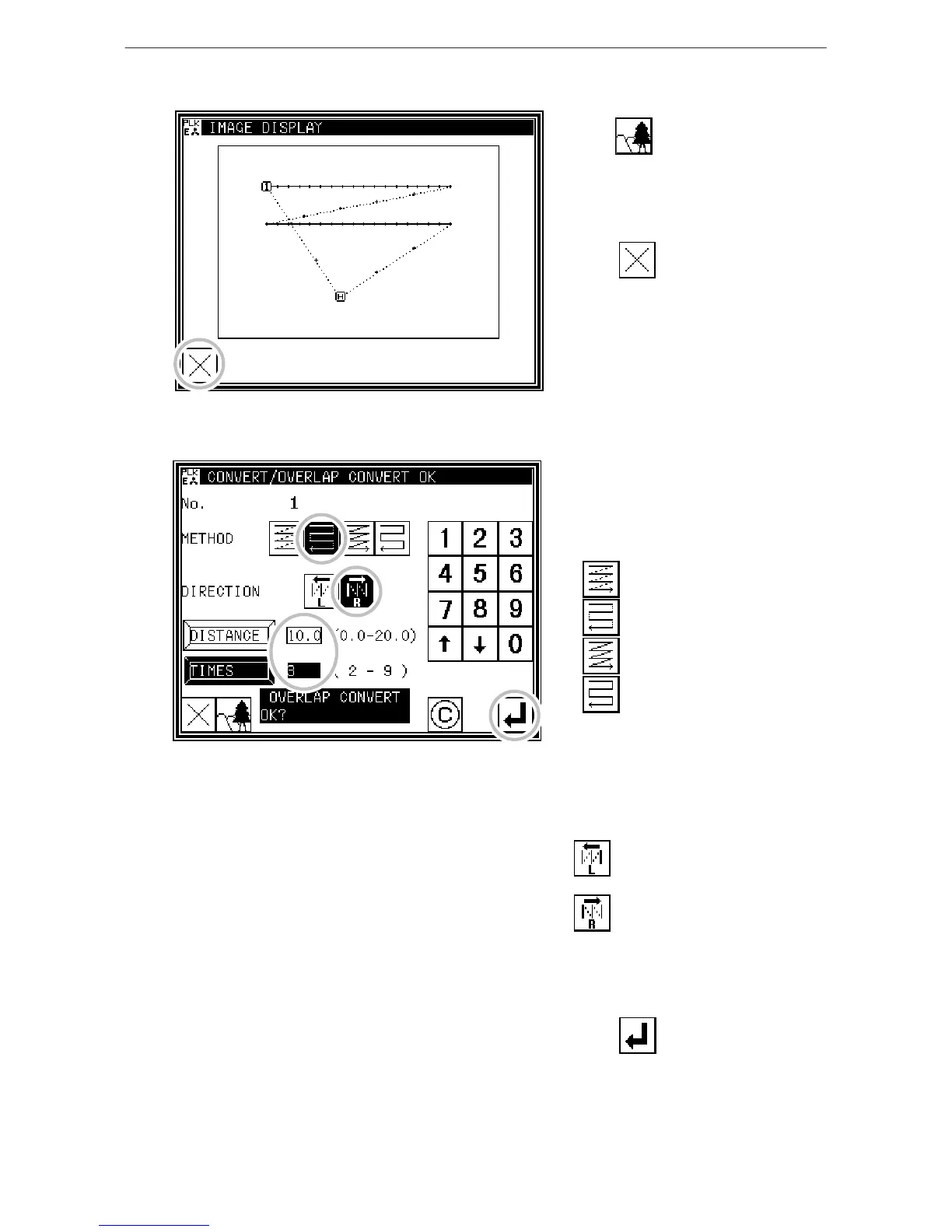

3. Confirming on the image screen



* press on the screen

displayed

in step 2.



* Confirm the multiple No., etc.



* Press to return to

the original screen.



4. Setting the conversion method



* Select and input the multiple

stitching method, direction,

distance and number of times.



Multiple (Feed data)



Multiple (Stitching

specifications)

Reverse Multiple

(Feed data)

Reverse Multiple

(Stitching specifications)



In this case, select the "Multiple

(Stitching specifications)")

* Select the direction. (In this case,

select "right".)

Left direction

Right direction

* Input the distance value. (In this

case, input "10 mm".)

* Input the number of times. (In this

case, input "3 times".)



* Press .


