Methods of creating stitching data

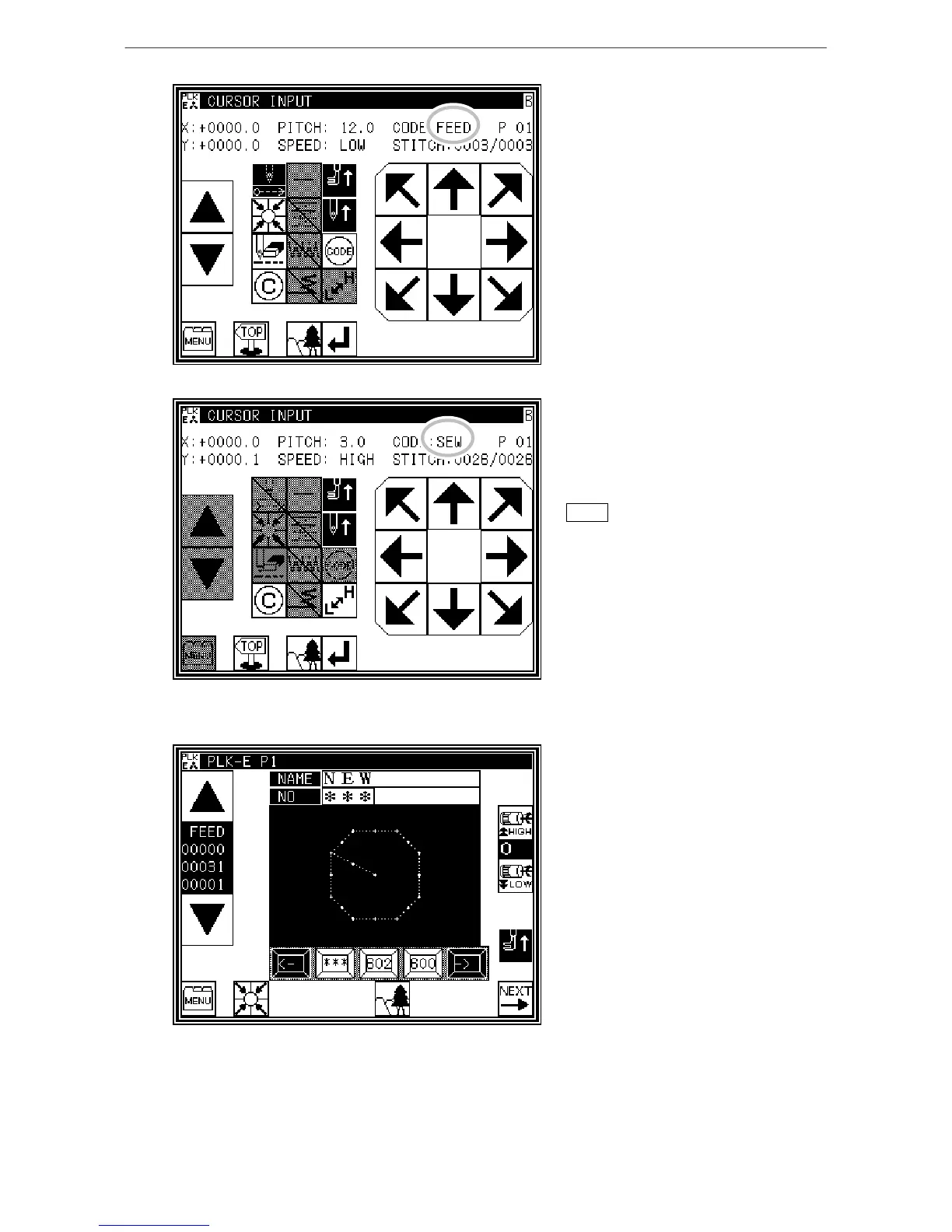

3. Arrow input screen



* Does not become SEW (Sewing) input

mode and it is FEED input mood after

input the "BAT" code.



* Input the feed data to the next B point.



* Input the "BAT" code and the feed

data from H point to A point repeating.



4. The pattern data input before return end



* It is not input the "BAT" code before

the last of return end but the sewing

data is input. Inputs here only by 1

stitch of the straight line.



Memo

The purpose of inputting the sewing

data at the end is to put the thread

trimmer (TRIM) code by the automatic

operation when the return end is input.

The thread trimmer(TRIM) code cannot

be input after the sewing data.



5. Input the return end and the data completion



* The return end is input and it is

completion.


