Modification mode

[12]-4

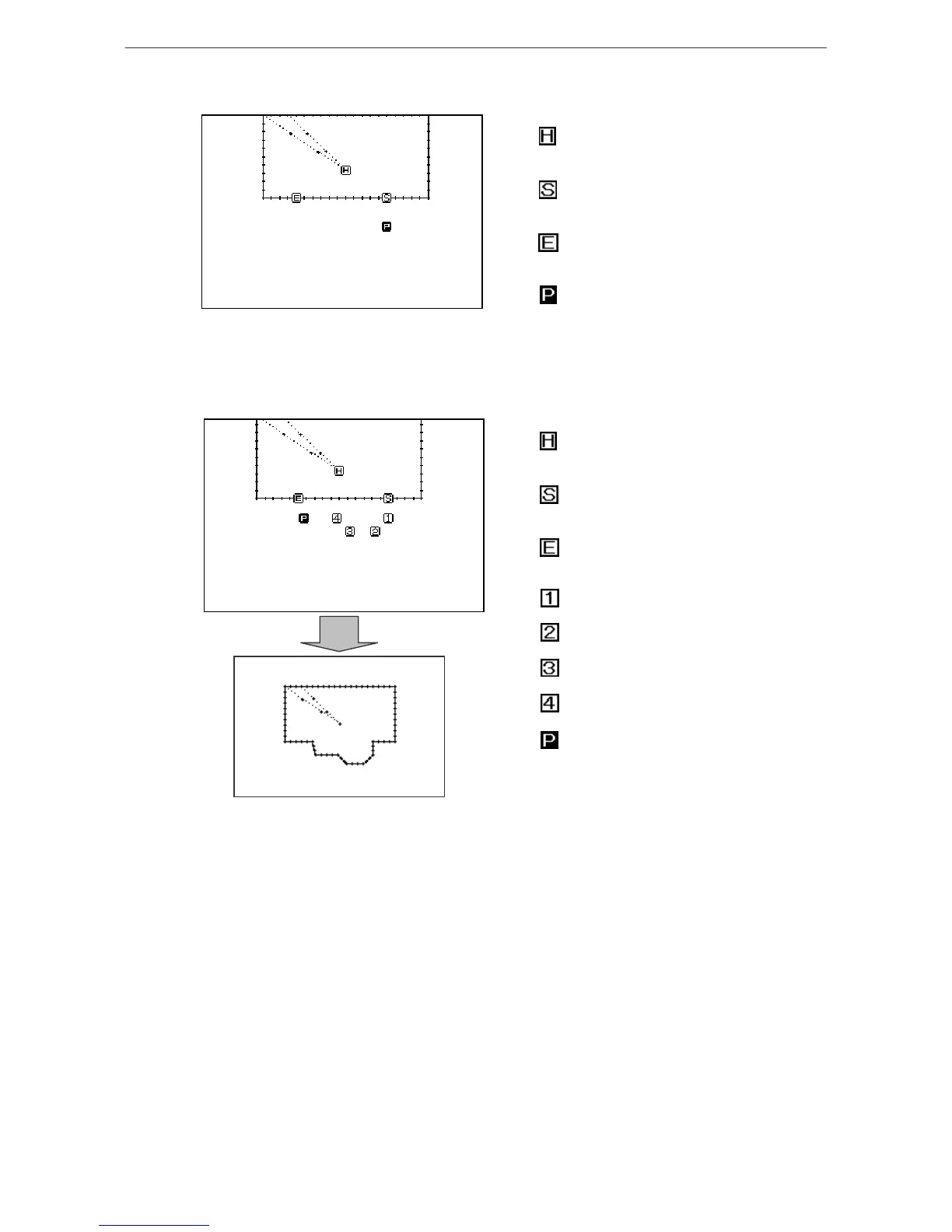

* Moving a block



: Indicates the home position.

(Common for all Image screens.)

: Indicates the block movement start

position.

: Indicates the block movement end

position.

: Indicates the position after block

movement modification.

(Current position moved to with the

arrow keys.)



* Modifying a block (The broken line input data is created with block modification.)



: Indicates the home position.

(Common for all Image screens.)

: Indicates the block modification start

position.

: Indicates the block modification end

position.

: Broken line transit point 1

: Broken line transit point 2

: Broken line transit point 3

: Broken line transit point 4

: Indicates the current position moved to

with the arrow keys.



[Results of block modification]


