Modification mode



[12]-14

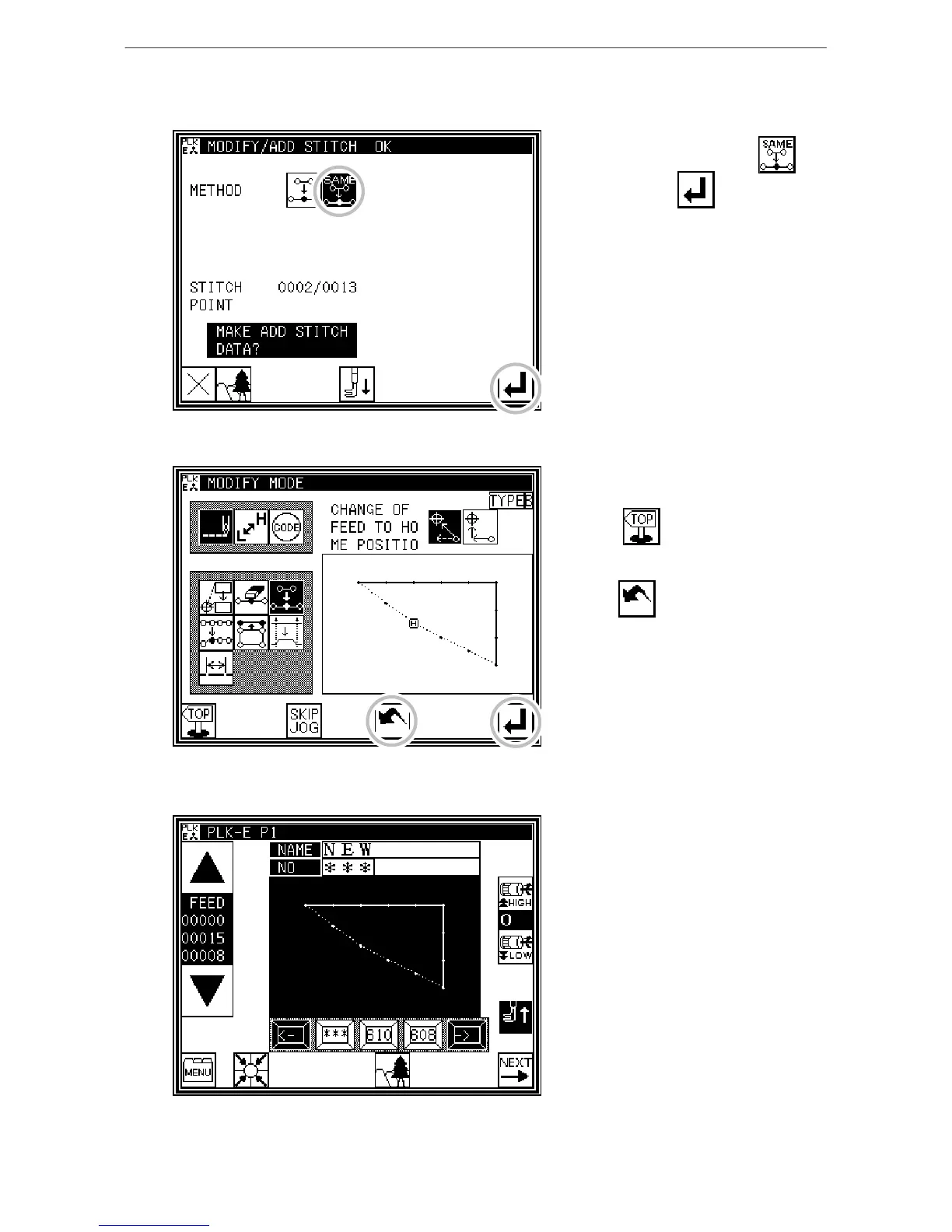

3. Setting the addition method



* Press Same Stitch Addition ,

and then press .



(The same stitch will be added.)



4. Confirming after stitch addition



* Quit the modification mode.



Press to return to the Standard

screen.



(When is pressed,

the modifications executed last will be

undone.)



5. Confirming with the Standard screen



* The same stitch has been added.


