Motorola APX 7000 Basic Service Manual

Disassembly/Reassembly Procedures: Radio Disassembly Sec 1: 8-13
8.7.2 Removal of the Speaker Module (B)
1. Remove the top two screws (28) as shown in Figure 8-15.

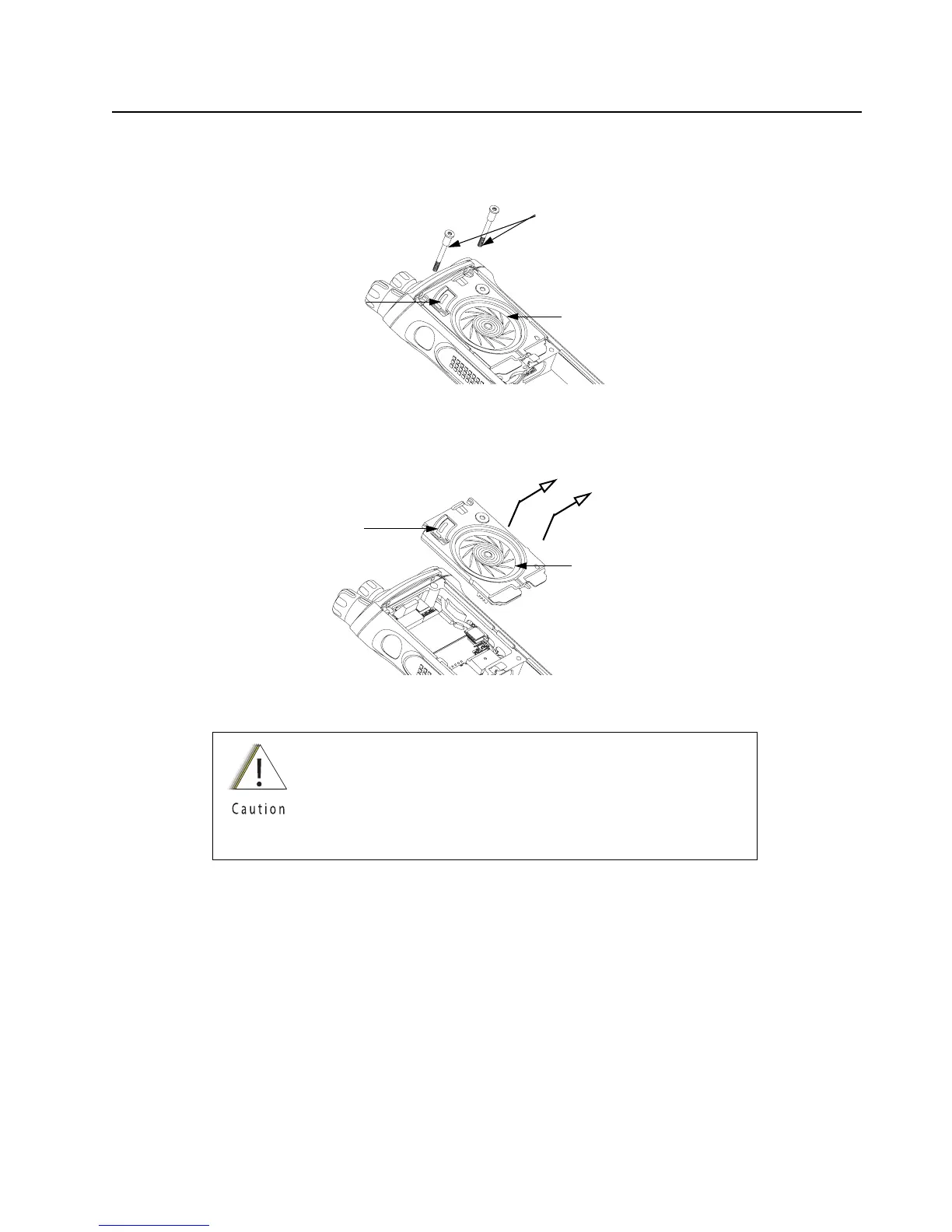

Figure 8-15. Remove Top Screws
2. Carefully pick out the Speaker Module (23) with the Black Stick and swing it out of the
Main Chassis Assembly (K) as shown in Figure 8-16.
Figure 8-16. Remove Speaker Module
8.7.3 Removal of the Expansion Board Assembly (C)
1. Using the Black Stick, unplug the two flex connectors located on the left and right side of the
Expansion Board Assembly (42). Unfold and straighten the flex located on the right side as
shown in Figure 8-17.
Be careful not to damage the speaker cone or the Port Seal (25)
during the disassembly process.
This Module has lubricant on the seal and can be contaminated
with foreign material. Any foreign material can put the radio's
submergibility at risk.
Top Screws (28)
Speaker Cone
Port Seal (25)
Speaker Cone
Port Seal (25)

Motorola APX 7000 Specifications

General

Digital Technology	P25 Phase 1 and Phase 2
Emergency Button	Yes
Frequency Range	136-174 MHz (VHF), 380-470 MHz (UHF Range 1), 450-520 MHz (UHF Range 2), 764-870 MHz (700/800 MHz)
Display	Color LCD
Encryption	AES, DES
Water Resistance	IP67
GPS	Yes
Bluetooth	Yes
Operating Temperature	-30°C to +60°C
Weight	391 g (with standard battery)
