Sec 1: 8-8 Disassembly/Reassembly Procedures: Battery
2. Verify that the Memory Door (33) is closed by ensuring the door is fully seated and the catch
feature on the tab is in the main chassis notch.

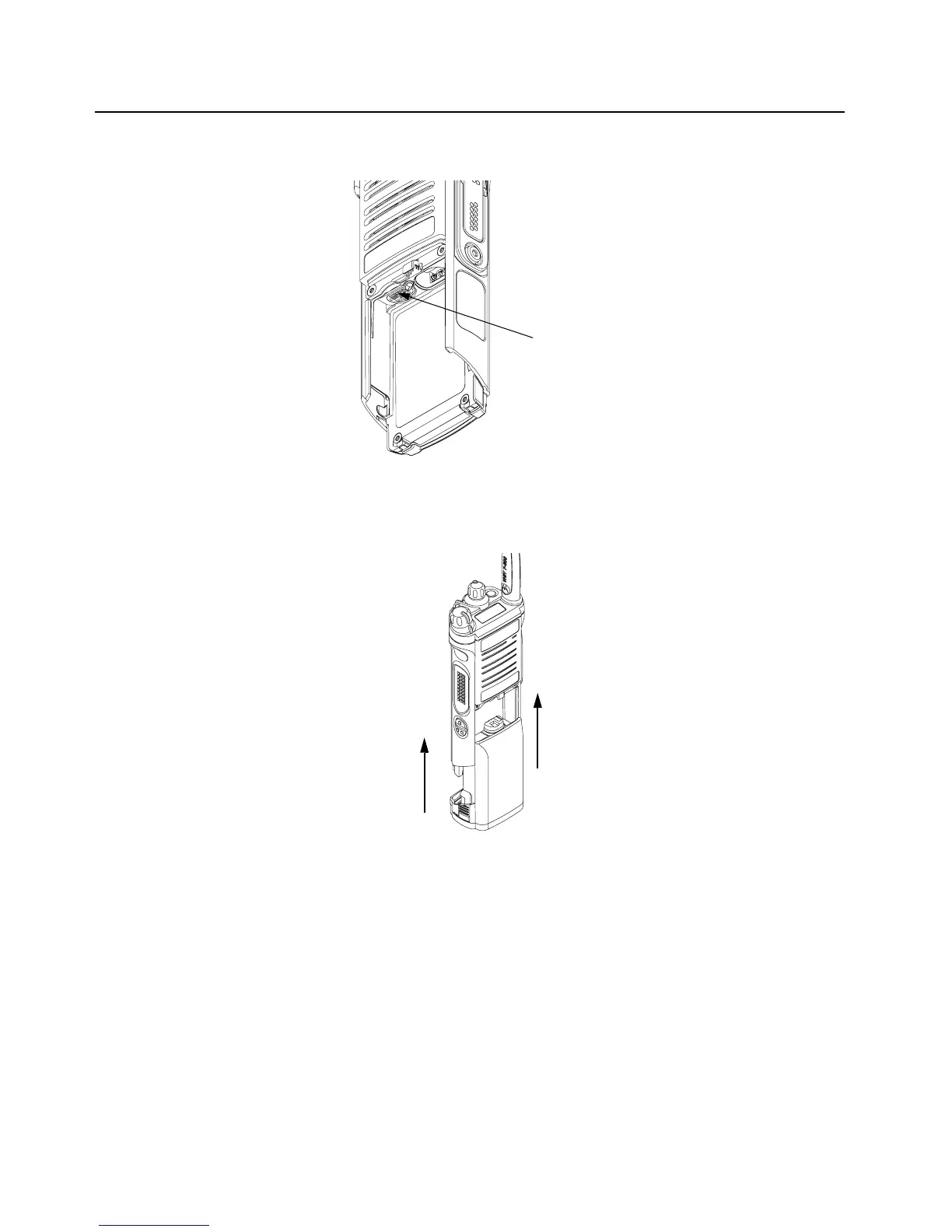

Figure 8-6. Attaching Battery – Memory Door
3. Set the battery onto the chassis as shown in Figure 8-7. and slide into position. Make sure
both battery latches click into position.
Figure 8-7. Attaching Battery – Slide into Position
Memory Door
