Motorola APX 7000 Basic Service Manual

Sec 2: 10-2 Exploded Views and Parts Lists: APX 7000XE Exploded View

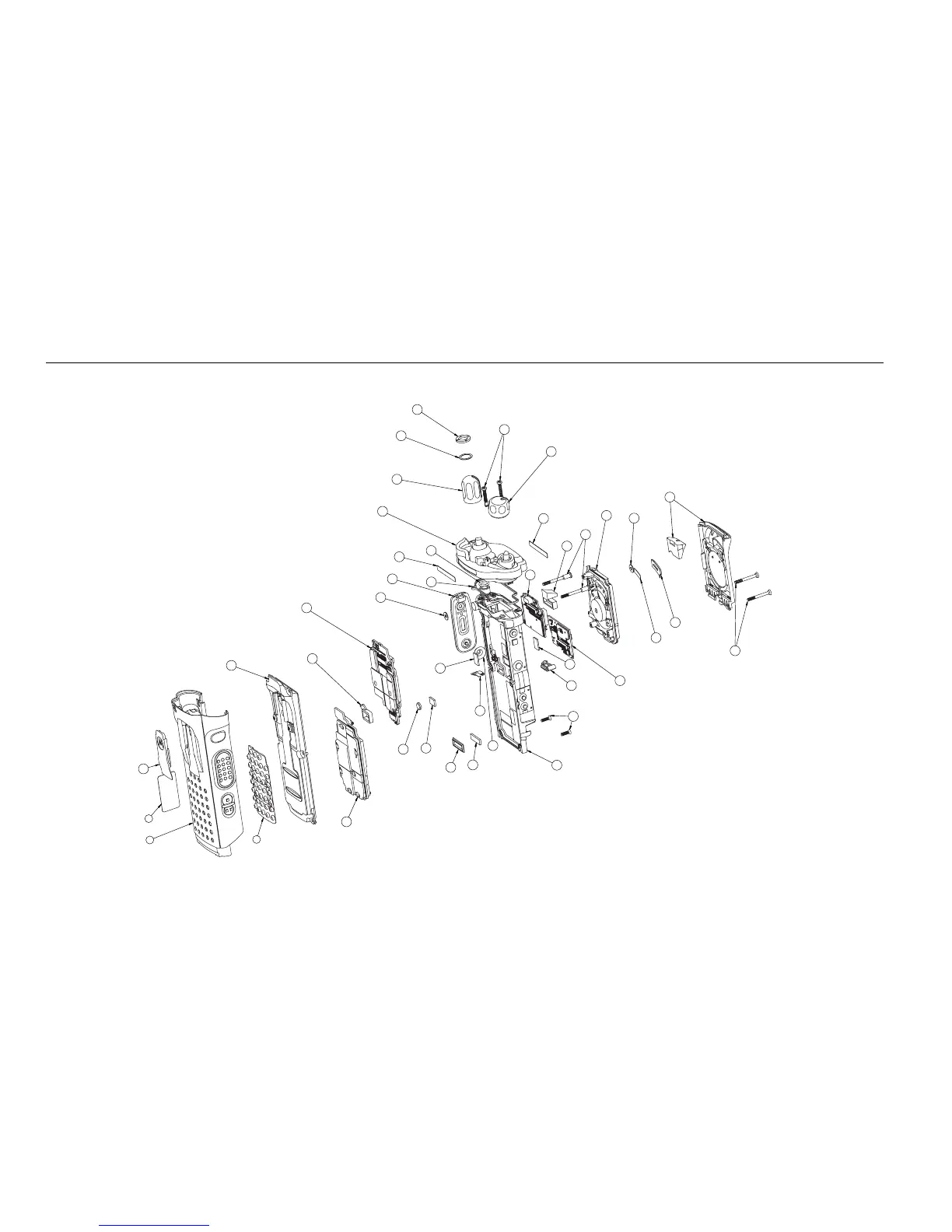

10.1 APX 7000XE Exploded View
Figure 10-1. APX 7000XE Exploded View
1
2
3
8
33
34
7
9
9
28
25
4
5
38
30
35
31
32
17
39
11
6
14
10
13
15
16
26
12
11
27
37
23
18
19
20
36
21
24
22
29

Motorola APX 7000 Specifications

General

Digital Technology	P25 Phase 1 and Phase 2
Emergency Button	Yes
Frequency Range	136-174 MHz (VHF), 380-470 MHz (UHF Range 1), 450-520 MHz (UHF Range 2), 764-870 MHz (700/800 MHz)
Display	Color LCD
Encryption	AES, DES
Water Resistance	IP67
GPS	Yes
Bluetooth	Yes
Operating Temperature	-30°C to +60°C
Weight	391 g (with standard battery)
