Disassembly/Reassembly Procedures: Radio Disassembly Sec 2: 8-11
8.7 Radio Disassembly
This section contains instructions for disassembling the radio's main subassemblies.
Prepare the radio for disassembly:
• Turn off the radio by rotating the On/Off/Volume Knob (12) fully counterclockwise until a click is
heard.
• Remove the antenna, the battery, any memory card, Belt Clip Cover (39), the Universal
Connector Cover (38) and any other accessory connected to the radio.
8.7.1 Removal of the Speaker Grille Assemblies (A)
1. With the Battery removed and the primary loudspeaker side of the radio facing you, remove
the center two screws (24) and swing out Speaker Grille Assembly (A) as shown in
Figure 8-12.

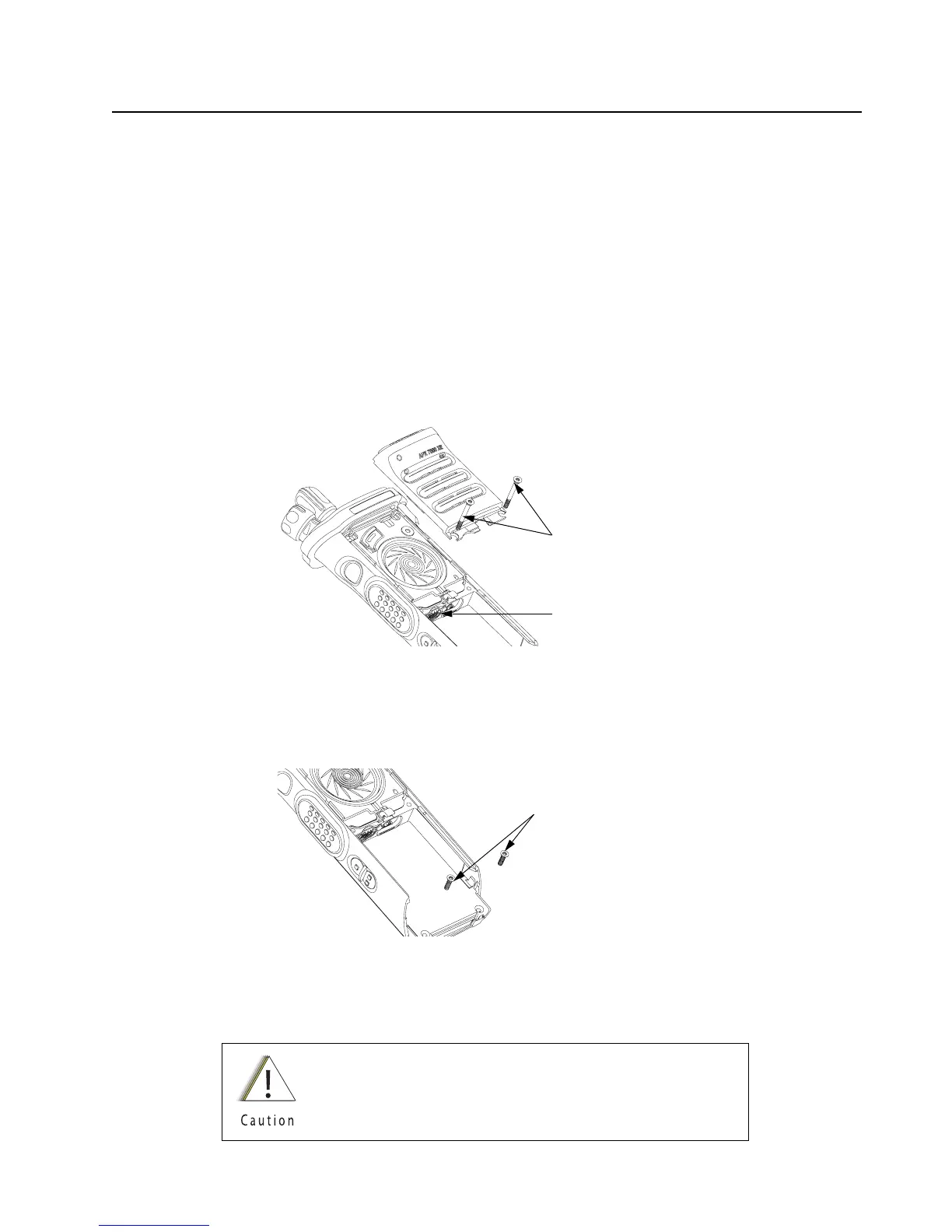

Figure 8-12. Remove Center Screws
NOTE: Memory Door (28) can be removed with the left center screw removed.
2. Remove the bottom two screws (25) if the Main Housing Assembly (D) is to be removed.
Refer Figure 8-13.
Figure 8-13. Remove Bottom Screws
NOTE: Once the screws have been removed, both Thermal Pads (33, 34) should be
replaced.
Do not touch either the speaker cone or the Port Seal (20).
Take extra precaution to make sure neither the speaker nor
the breather pad is damaged.
Center Screws (24)
Memory Door (28)
Bottom Screws (25)
