Sec 1: 8-30 Disassembly/Reassembly Procedures: Serviceable Components of the Main Sub-Assemblies
8.8.12 Servicing Speaker Grille Assembly (A)

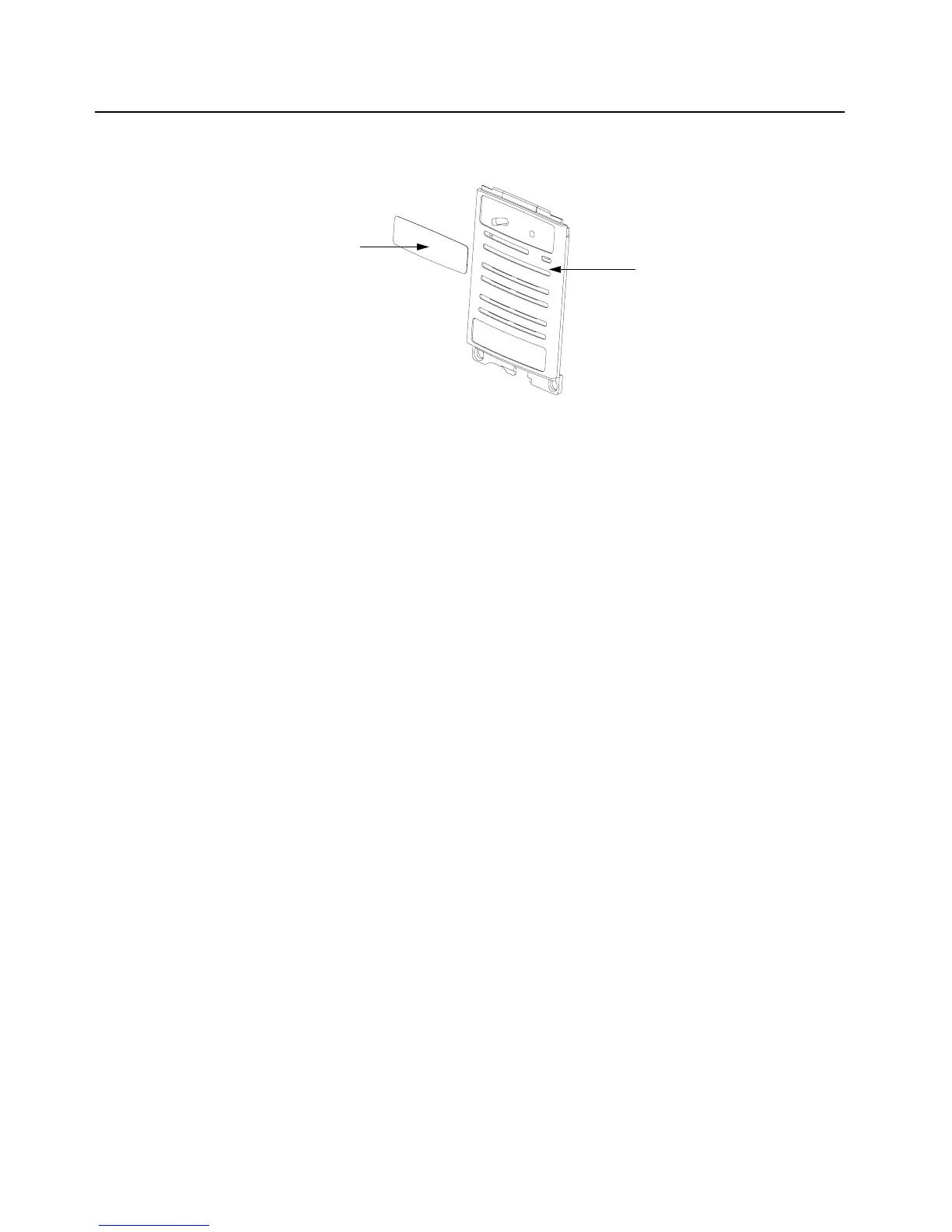

Figure 8-40. Speaker Grille Assembly
NOTE: Grille Label will be damaged during disassembly.
8.8.12.1 Servicing Grille Label
NOTE: There is no need to remove any components in order to service the
Speaker Grille Label (44).
NOTE: Grille Label will be damaged during disassembly.
1. Remove the Grille Label by using the Black Stick to lift it. Be careful not to damage the
Speaker Grille Assembly's (27) surface.
2. Clean the area once the Grille Label is removed to ensure it is free of adhesive and debris.
3. Remove the backer of the new Grille Label and place in the appropriate location using a flat
tip tweezer.
NOTE: There are No Other serviceable components on the Speaker Grille Assembly (A).
Speaker Grille
Speaker Grille Label (44)
