Motorola APX 7000 Basic Service Manual

Radio Alignment Procedures: Transmitter Alignments Sec 2: 6-7
6.5.2 Power Characterization Points
Tuning of the radio is done through Power Characterization Points tuning screen.
1. Select the TX Power Characterization Points alignment screen. See Figure 6-8, Figure 6-9,
Figure 6-10, Figure 6-11 and Figure 6-12.
2. Set power supply voltage and current limit.
3. Adjust softpot value by manipulating the slider bar, incrementing the "New Softpot Value" text
box, or directly entering the desired value into the "New Softpot Value" text box until the rated
power is indicated on the service monitor. For rated power refer to the help text in the Tuner.
4. Repeat the steps 2 and 3 for all frequencies.
5. Left-click the Program All button on the screen to dekey the radio and save the tuned values.

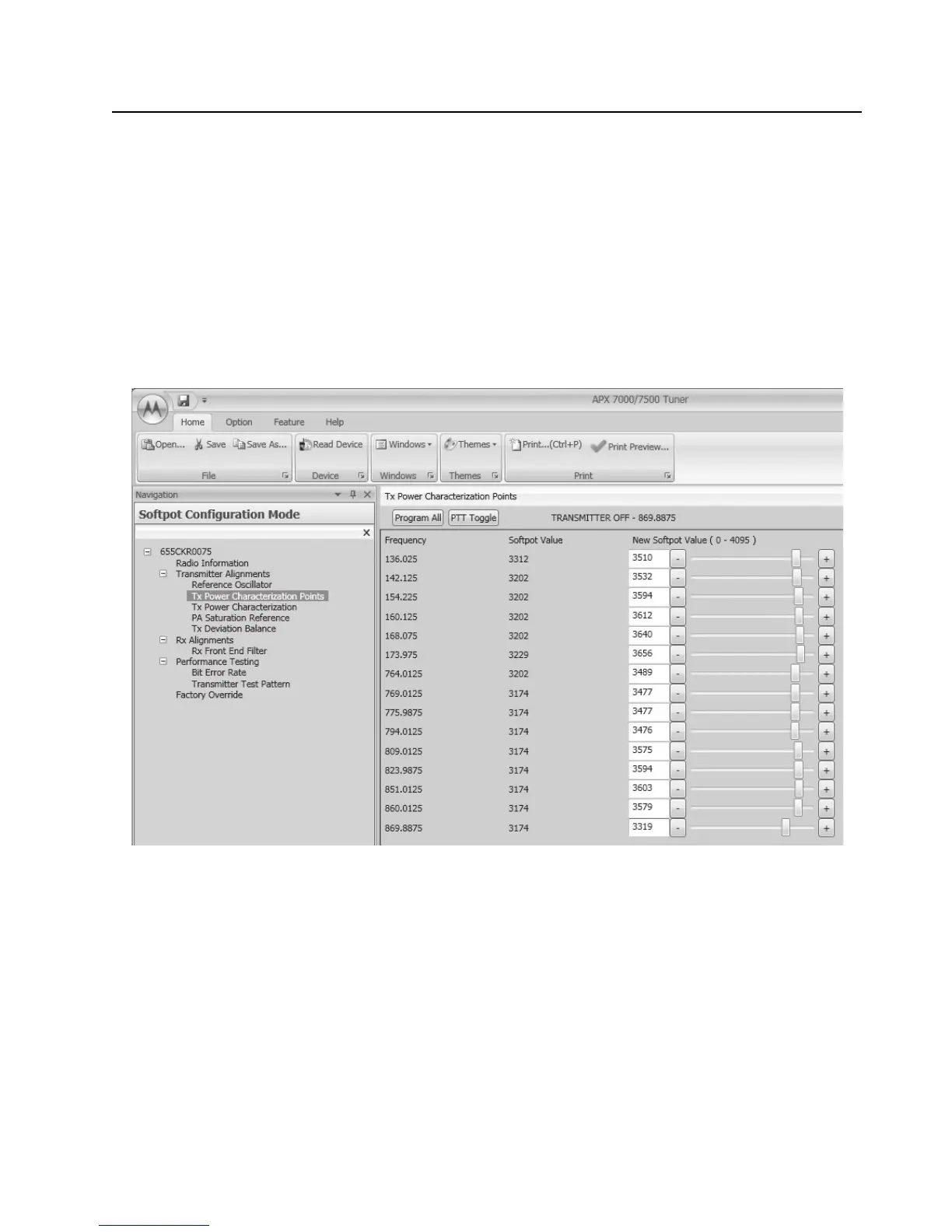

Figure 6-8. Transmit Power Characterization Points Alignment Screen (VHF and 700–800 MHz)

Motorola APX 7000 Specifications

General

Digital Technology	P25 Phase 1 and Phase 2
Emergency Button	Yes
Frequency Range	136-174 MHz (VHF), 380-470 MHz (UHF Range 1), 450-520 MHz (UHF Range 2), 764-870 MHz (700/800 MHz)
Display	Color LCD
Encryption	AES, DES
Water Resistance	IP67
GPS	Yes
Bluetooth	Yes
Operating Temperature	-30°C to +60°C
Weight	391 g (with standard battery)
