Motorola APX 7000 Basic Service Manual

Radio Alignment Procedures: Front End Filter Alignment Sec 2: 6-21
6.6.2 Procedure for UHF Range 2 (Auto Tune)
Tuning of the radio is done through Rx Front End Filter tuning screen
1. Select the Rx Front End Filter alignment screen. See Figure 6-29.
2. Click on the slider or the "New Softpot Value" text box to select which frequency to tune.
3. Apply RF test signal input with no modulation at -14 dBm on the Test Signal Frequency
displayed at the top of the screen.
4. Left-click the Autotune button.
5. Repeat the steps 2–4 for all frequencies.
6. Left-click the Program All button on the screen to save the tuned values in the radio.

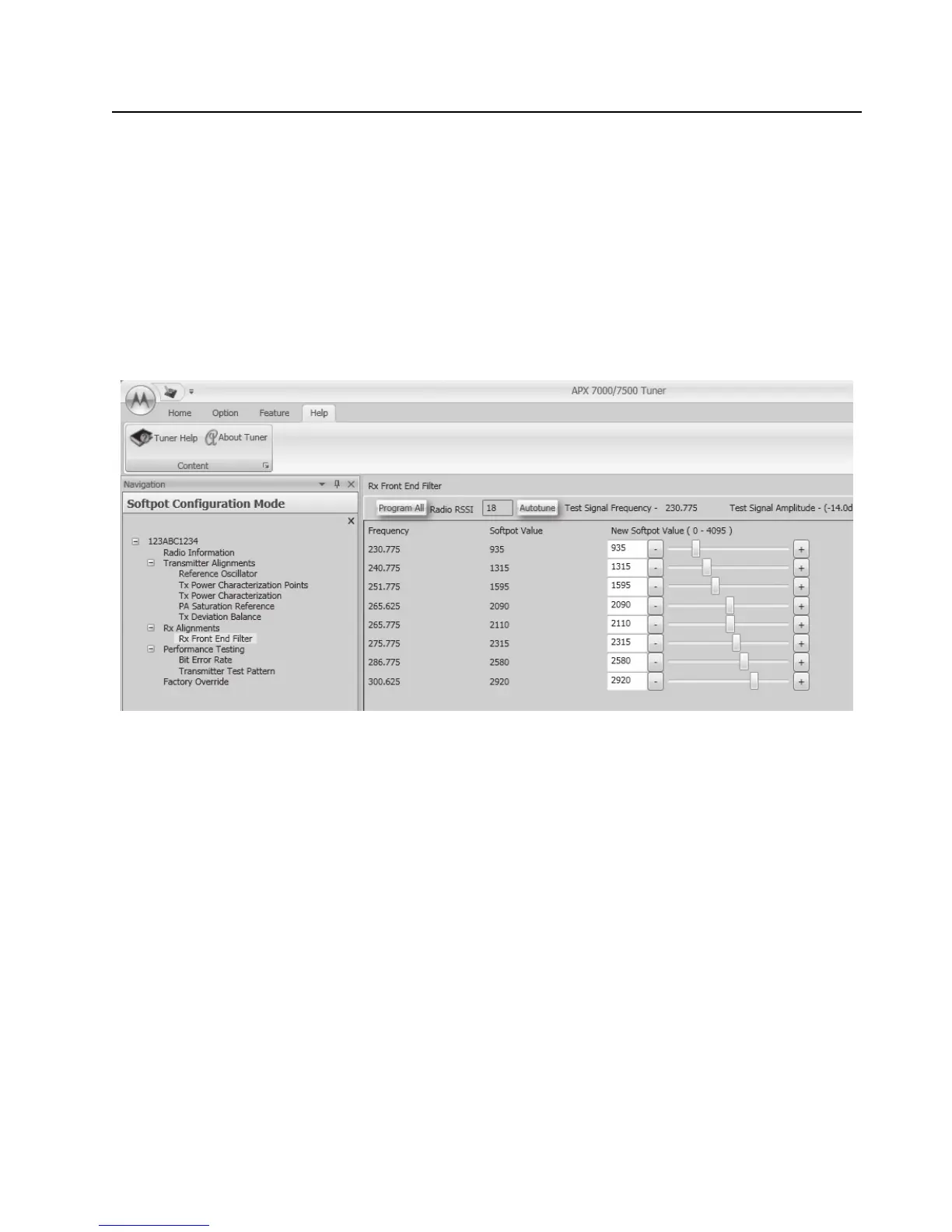

Figure 6-29. Front End Filter Alignment Screen (UHF2)

Motorola APX 7000 Specifications

General

Digital Technology	P25 Phase 1 and Phase 2
Emergency Button	Yes
Frequency Range	136-174 MHz (VHF), 380-470 MHz (UHF Range 1), 450-520 MHz (UHF Range 2), 764-870 MHz (700/800 MHz)
Display	Color LCD
Encryption	AES, DES
Water Resistance	IP67
GPS	Yes
Bluetooth	Yes
Operating Temperature	-30°C to +60°C
Weight	391 g (with standard battery)
