Motorola DS9208 Product Reference Guide

5 - 10 DS9208 Product Reference Guide
Image Brightness (Target White)
Parameter # 390
Type: Byte
Range: 1 - 240
This parameter sets the Target White value used in Snapshot and Video Viewfinder mode when using auto
exposure. White and black are defined as 240 decimal and 1, respectively. Setting the value to the factory
default of 180 sets the white level of the image to ~180.
To set the Image Brightness parameter, scan Image Brightness below followed by three numeric bar codes
representing the value. Leading zeros are required. For example, to set an Image Brightness value of 99, scan
0, 9, 9. See Appendix G, Numeric Bar Codes for numeric bar codes.

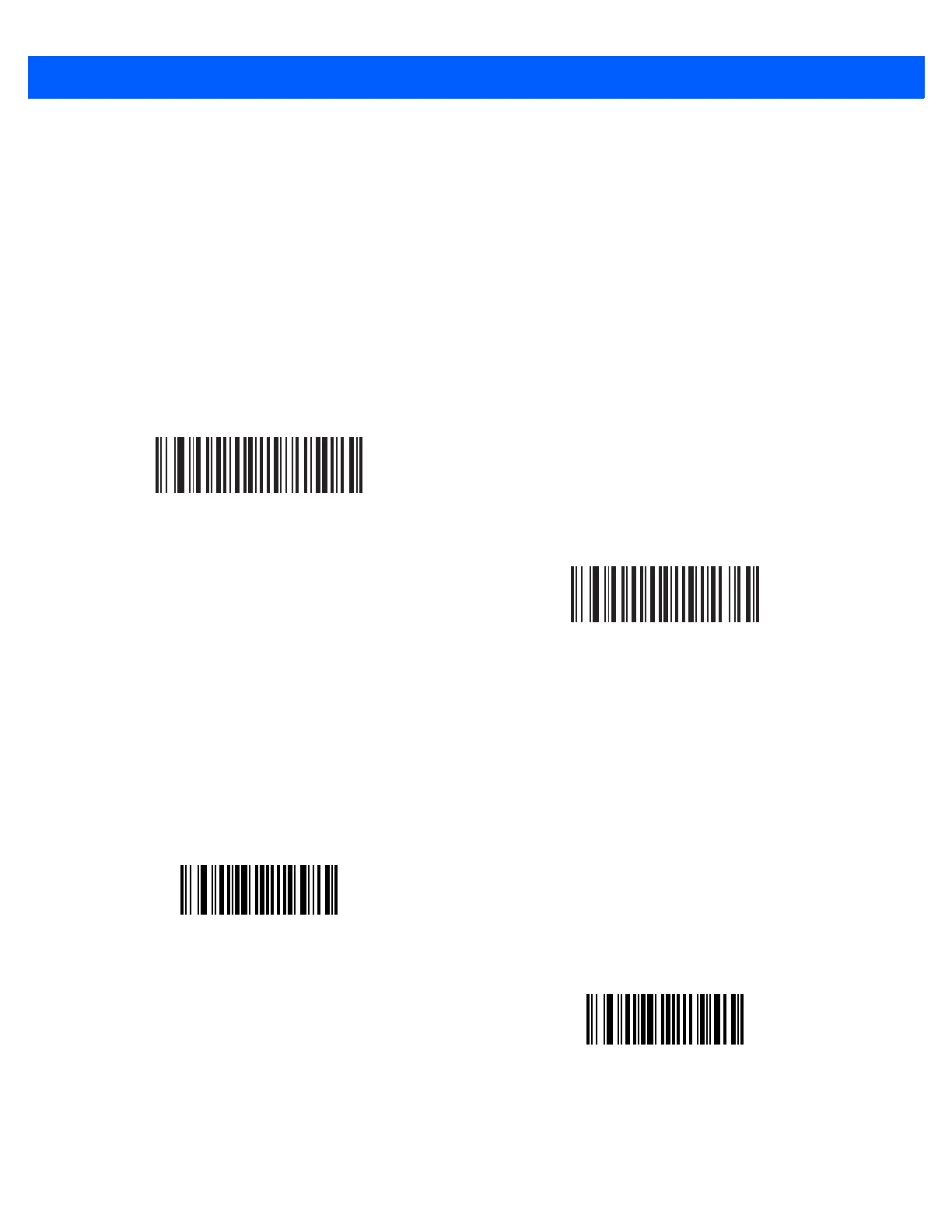

JPEG Image Options
Parameter # 299
Select an option to optimize JPEG images for either size or for quality. Scan the JPEG Quality Selector bar
code to enter a quality value; the digital scanner then selects the corresponding image size. Scan the JPEG
Size Selector bar code to enter a size value; the digital scanner then selects the best image quality.
*180
Image Brightness
(3 digits)
*JPEG Quality Selector
(1)
JPEG Size Selector
(0)

Motorola DS9208 Specifications

General

Drop Specification	Withstands multiple 5 ft./1.5 m drops to concrete
Scanning Technology	Imager
Tilt Angle	± 65°
Skew Angle	± 60°
Connectivity	USB, RS232, Keyboard Wedge
Decode Capability	1D, 2D and PDF417
Light Source	650nm visible laser diode
Operating Temperature	32° to 104° F/0° to 40° C
Print Contrast	25% minimum reflectance
Pitch Angle	60°
Storage Temperature	-40° to 158° F (-40° to 70° C)
Humidity	5% to 95% relative humidity, non-condensing
Electrical Safety	UL
EMC	FCC Part 15 Class B
Cable Length	6 ft (1.8m)
Power Consumption	2.5 Watts (500mA @ 5V)
Scan Pattern	Omnidirectional
