Motorola DS9208 Product Reference Guide

Symbologies 10 - 79
GS1 DataBar Limited Security Level
Parameter # 728
The digital scanner offers four levels of decode security for GS1 DataBar Limited bar codes. There is an
inverse relationship between security and digital scanner aggressiveness. Increasing the level of security may
result in reduced aggressiveness in scanning, so only choose the level of security necessary.
• Level 1 – No clear margin required. This complies with the original GS1 standard, yet might result in
erroneous
1
decoding of the DataBar Limited bar code when scanning some UPC symbols that start with
the digits “9” and “7”
.
• Level 2 – Automatic risk detection. This level of security may result in erroneous decoding of DataBar
Limited bar codes when scanning some UPC symbols. If a misdecode is detected, the scanner operates
in Level 3 or Level 1.
• Level 3 – Security level reflects newly proposed GS1 standard that requires a 5X trailing clear margin.
• Level 4 – Security level extends beyond the standard required by GS1. This level of security requires a
5X leading and trailing clear margin.
1.May result in erroneous decoding due to Databar Limited and UPC symbologies.

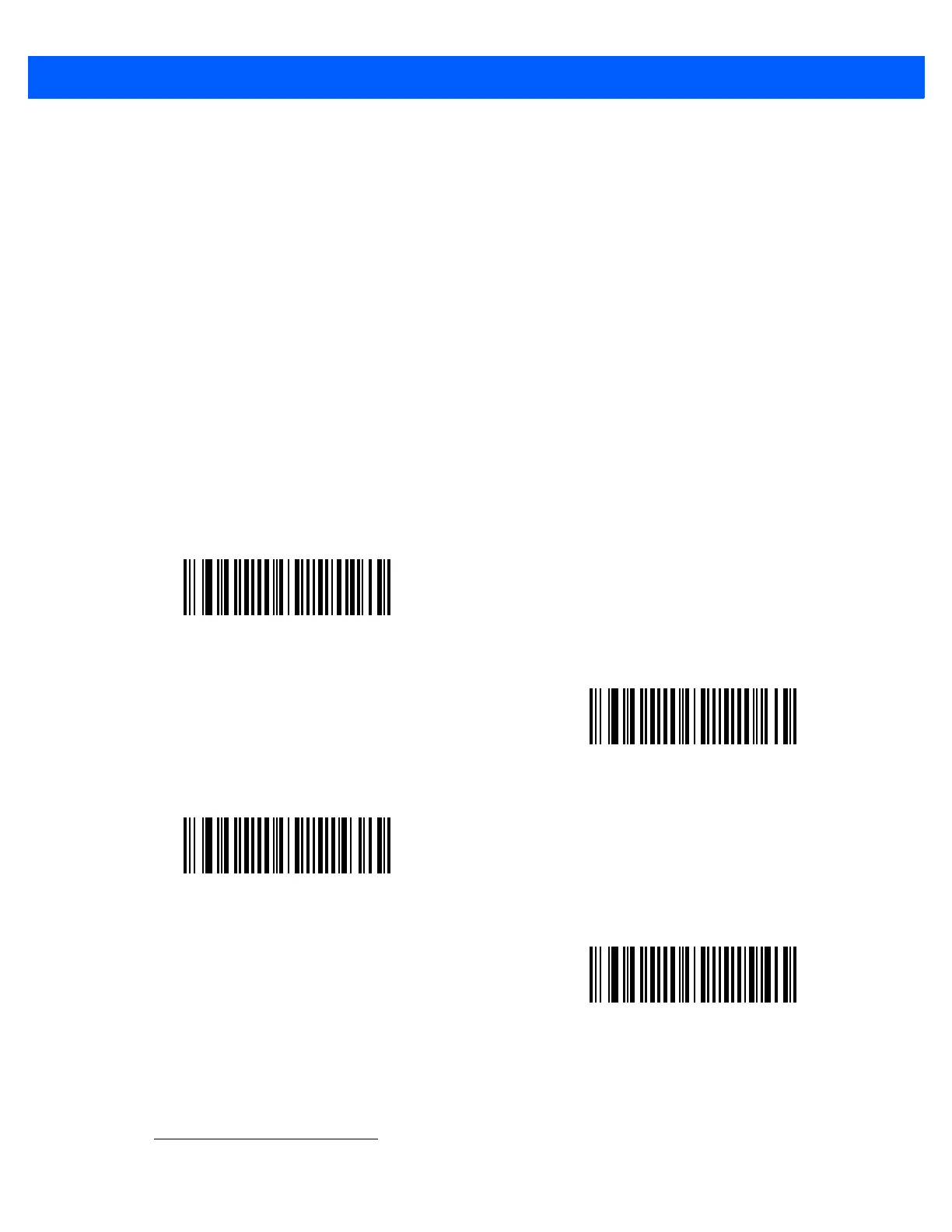

Security Level 1
(1)
Security Level 2
(2)
*Security Level 3
(3)
Security Level 4
(4)

Motorola DS9208 Specifications

General

Drop Specification	Withstands multiple 5 ft./1.5 m drops to concrete
Scanning Technology	Imager
Tilt Angle	± 65°
Skew Angle	± 60°
Connectivity	USB, RS232, Keyboard Wedge
Decode Capability	1D, 2D and PDF417
Light Source	650nm visible laser diode
Operating Temperature	32° to 104° F/0° to 40° C
Print Contrast	25% minimum reflectance
Pitch Angle	60°
Storage Temperature	-40° to 158° F (-40° to 70° C)
Humidity	5% to 95% relative humidity, non-condensing
Electrical Safety	UL
EMC	FCC Part 15 Class B
Cable Length	6 ft (1.8m)
Power Consumption	2.5 Watts (500mA @ 5V)
Scan Pattern	Omnidirectional
